Copper-Nickel Threaded (NPT/BSP) Fittings
Threaded copper-nickel fittings connect via NPT, BSPT or BSPP machined threads, allowing pipe joints to be assembled and disassembled without welding — ideal for maintenance-friendly instrumentation, utility and small-bore piping runs.
Threaded (NPT/BSP) Fittings — Full Range

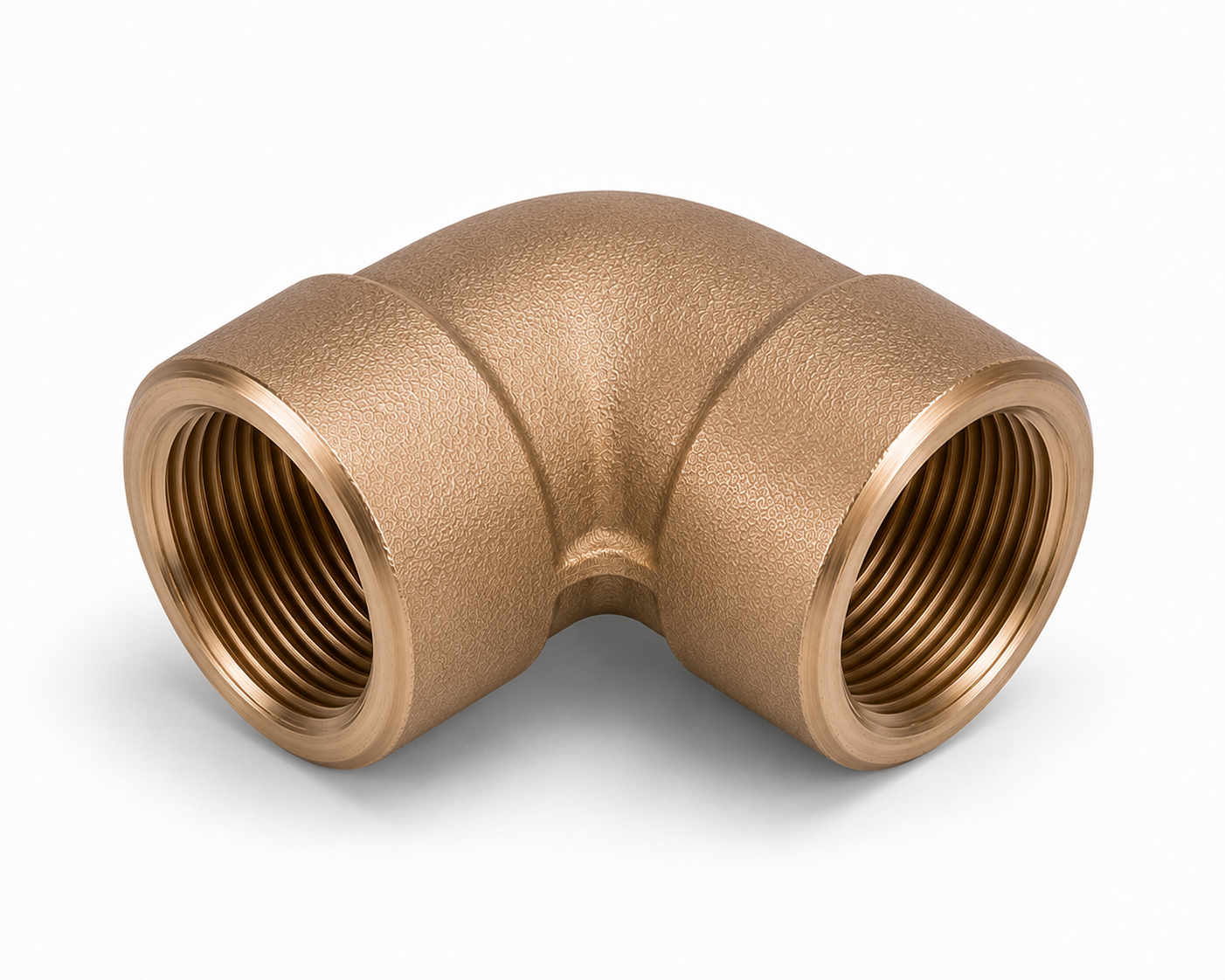

90° Elbow
Changes pipe direction by 90°
45° Elbow
Changes pipe direction by 45°
Equal Tee
Equal three-way branch connection

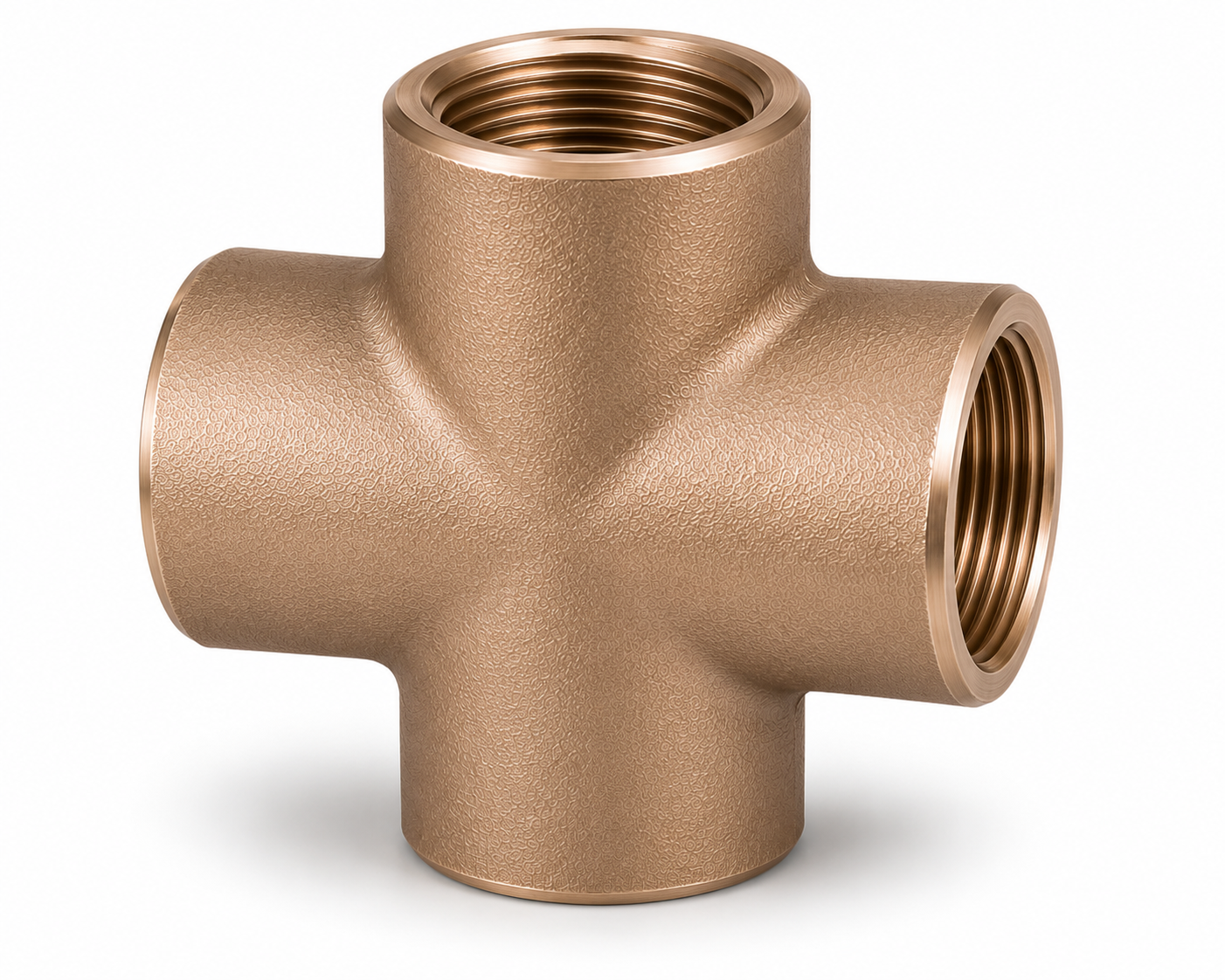

Cross
Four-way equal branch connection

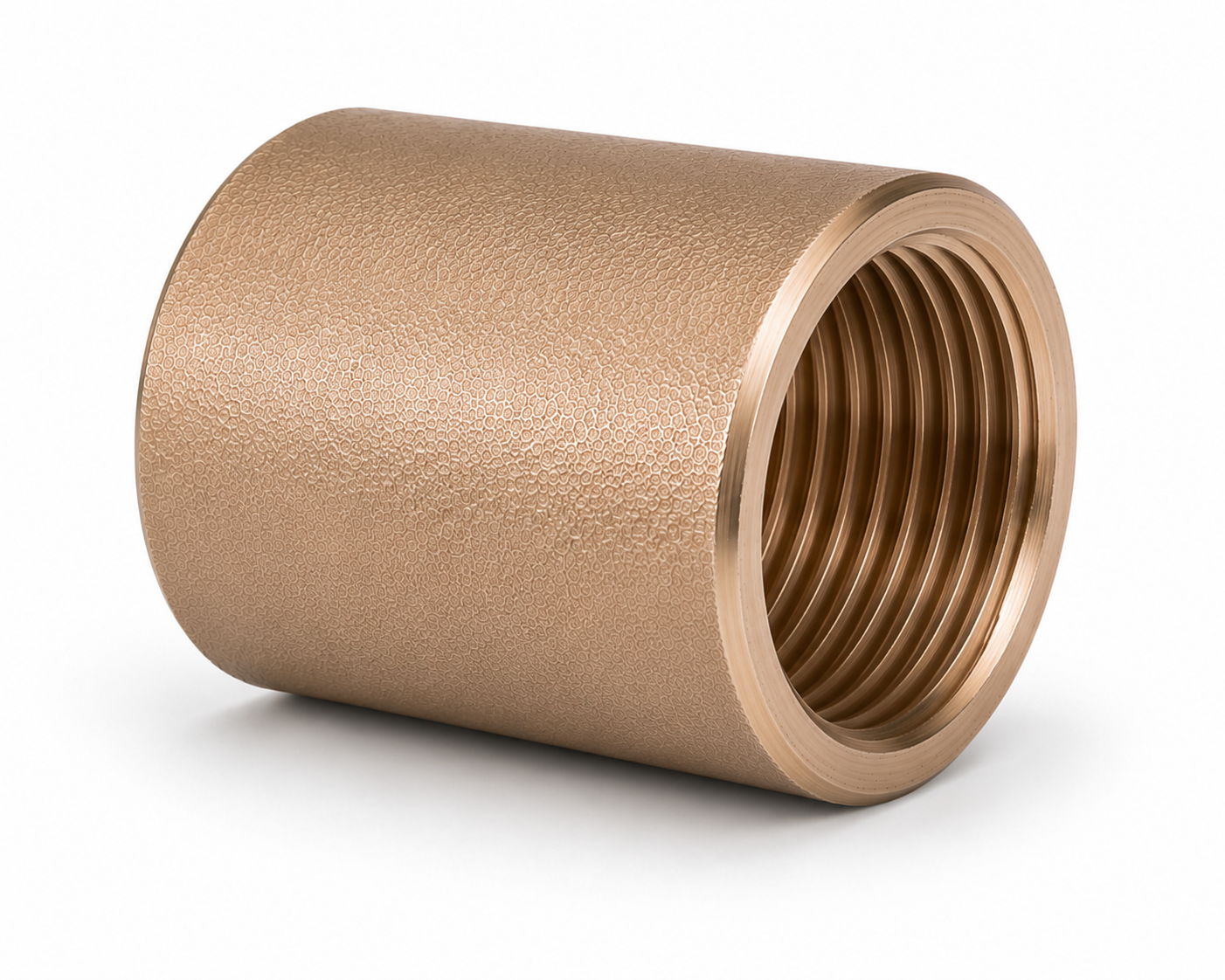

Full Coupling
Joins two equal-size pipe ends

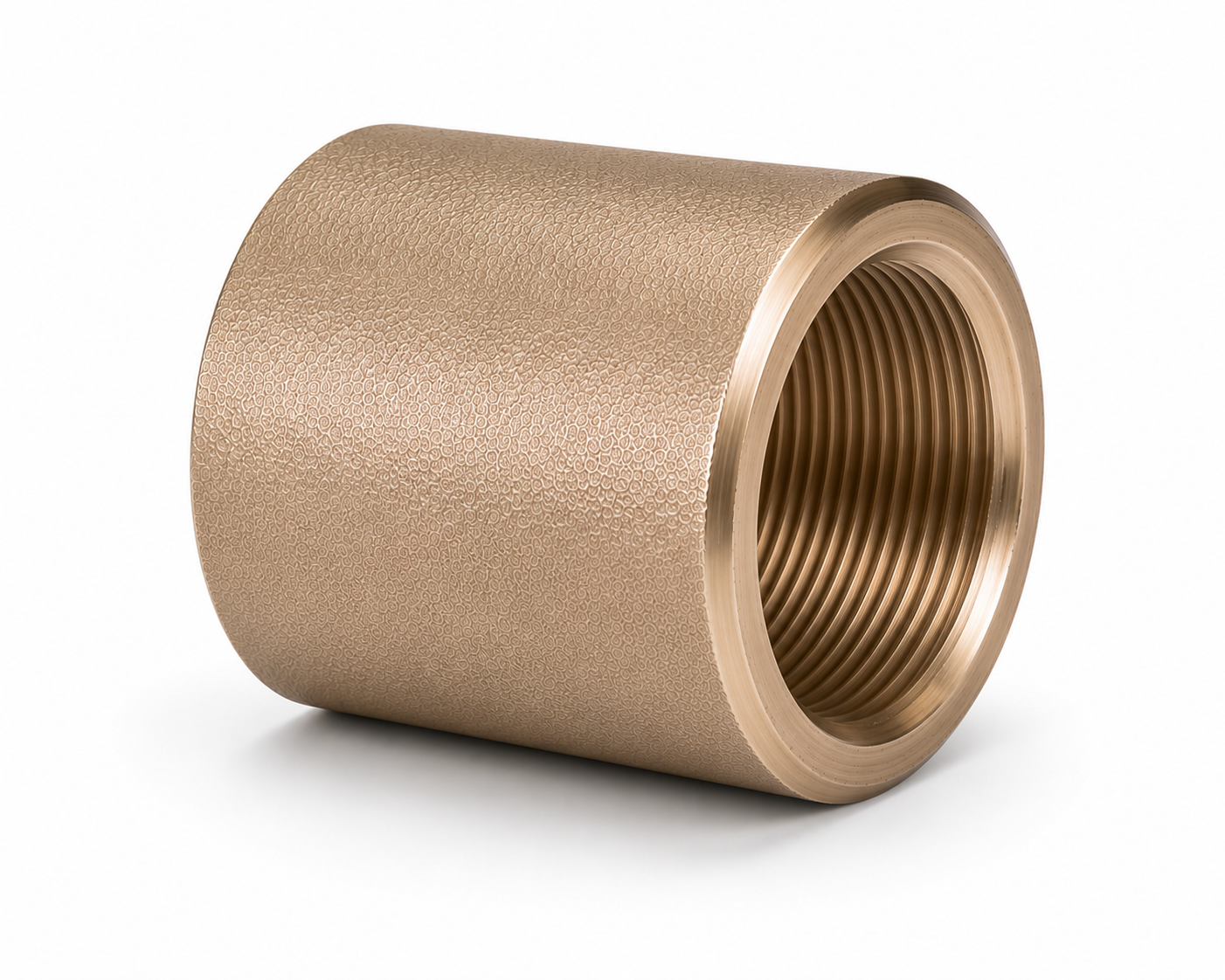

Half Coupling
Branch connection welded to run pipe

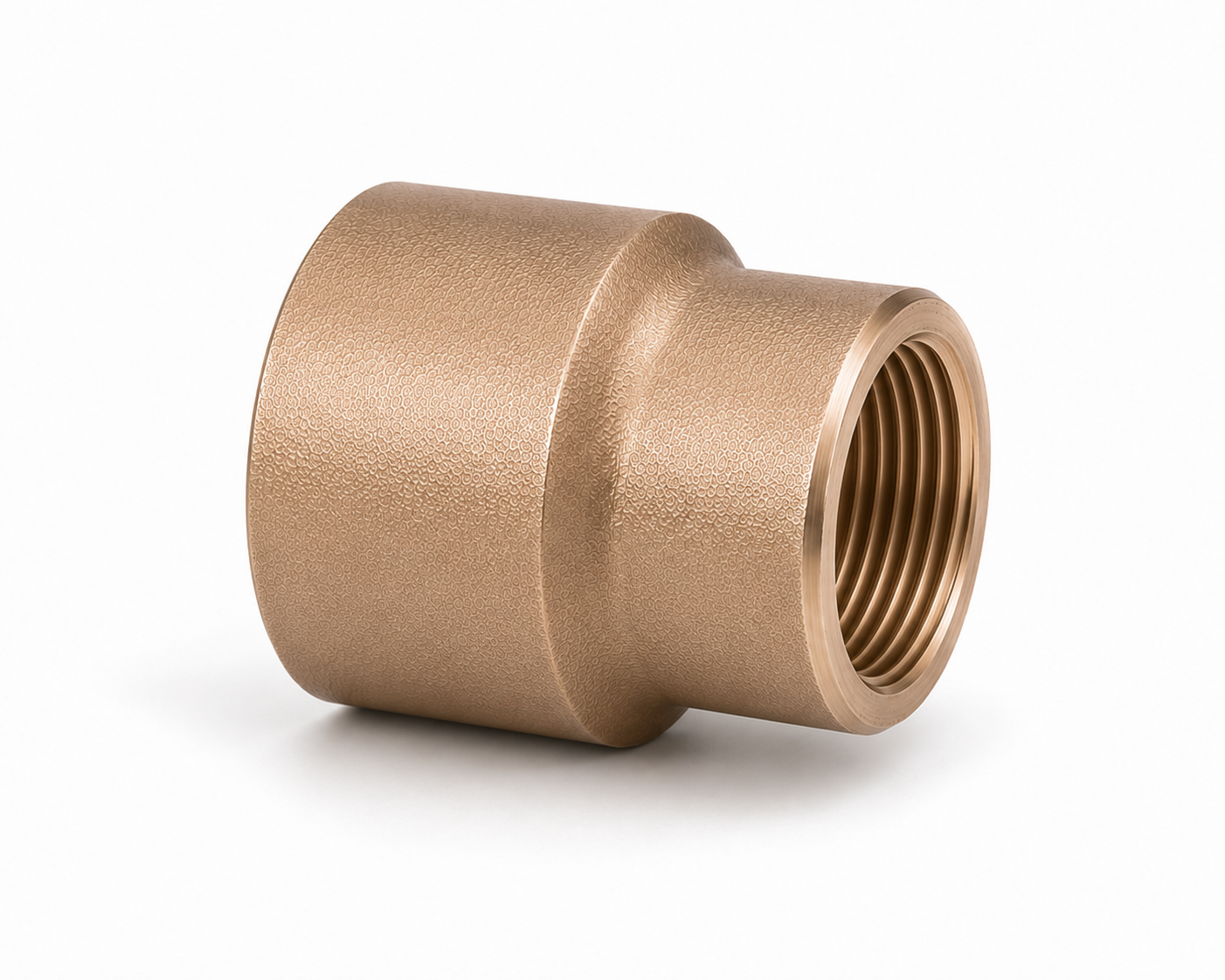

Reducing Coupling
Joins two different pipe sizes

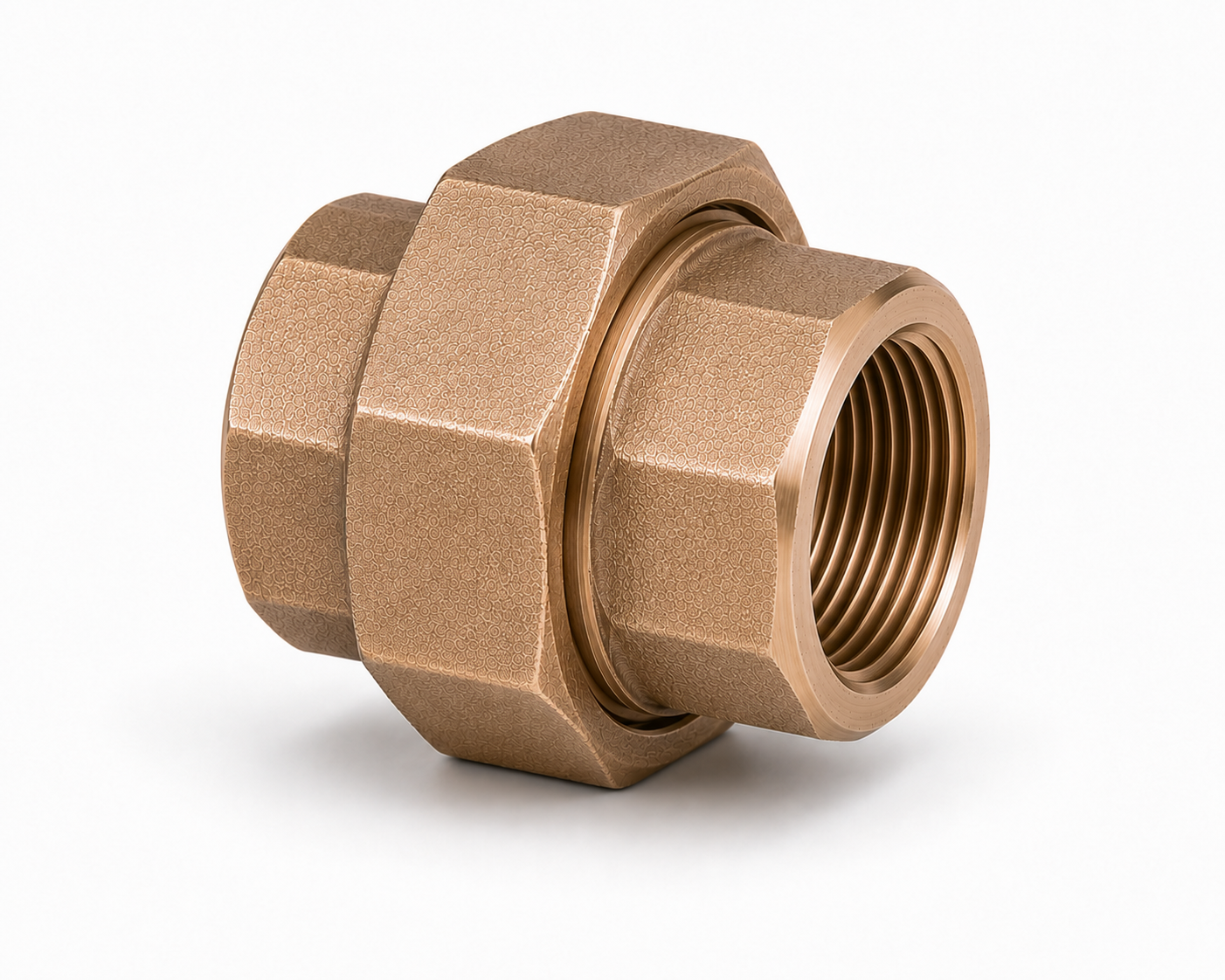

Union
Union

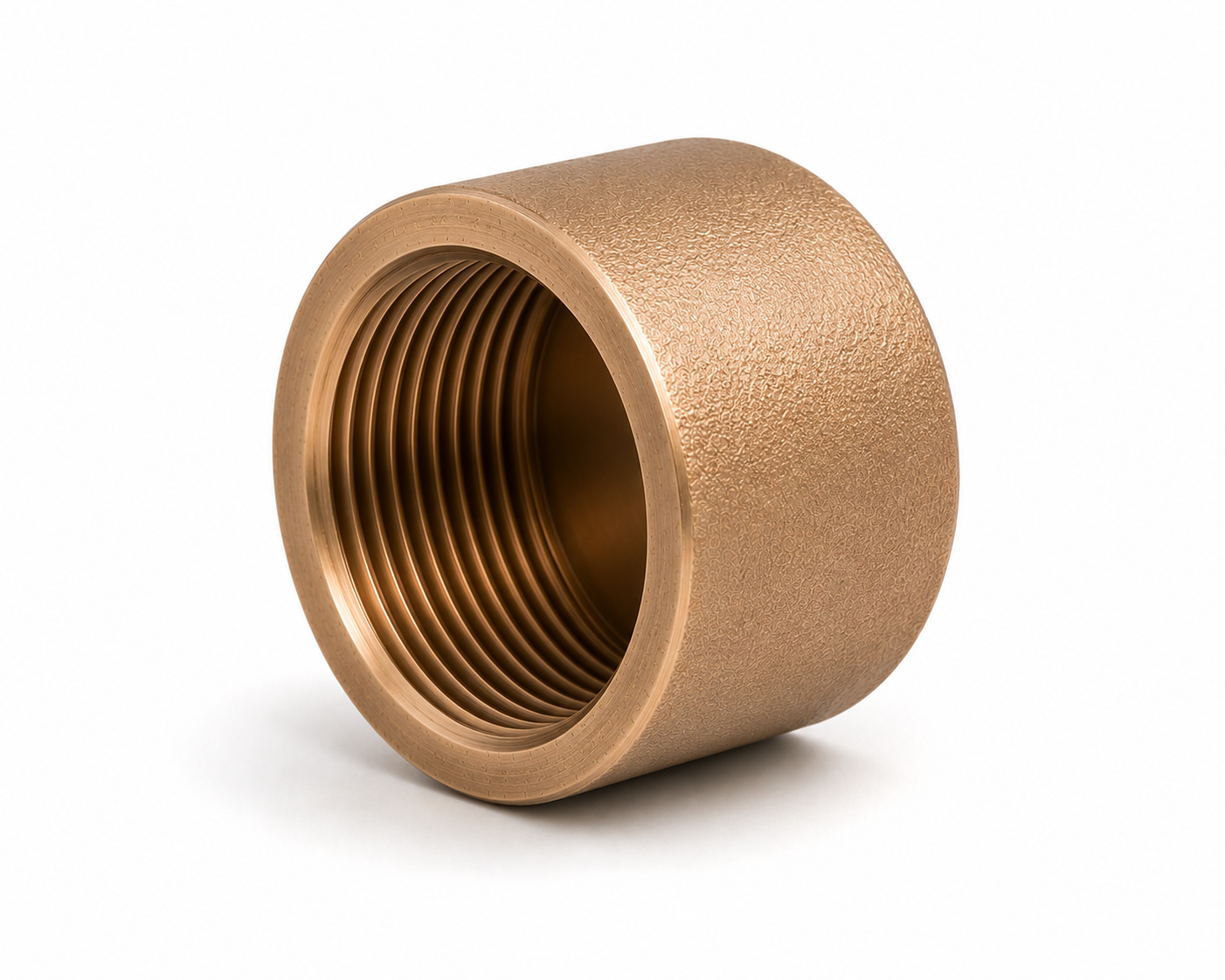

Cap
Cap

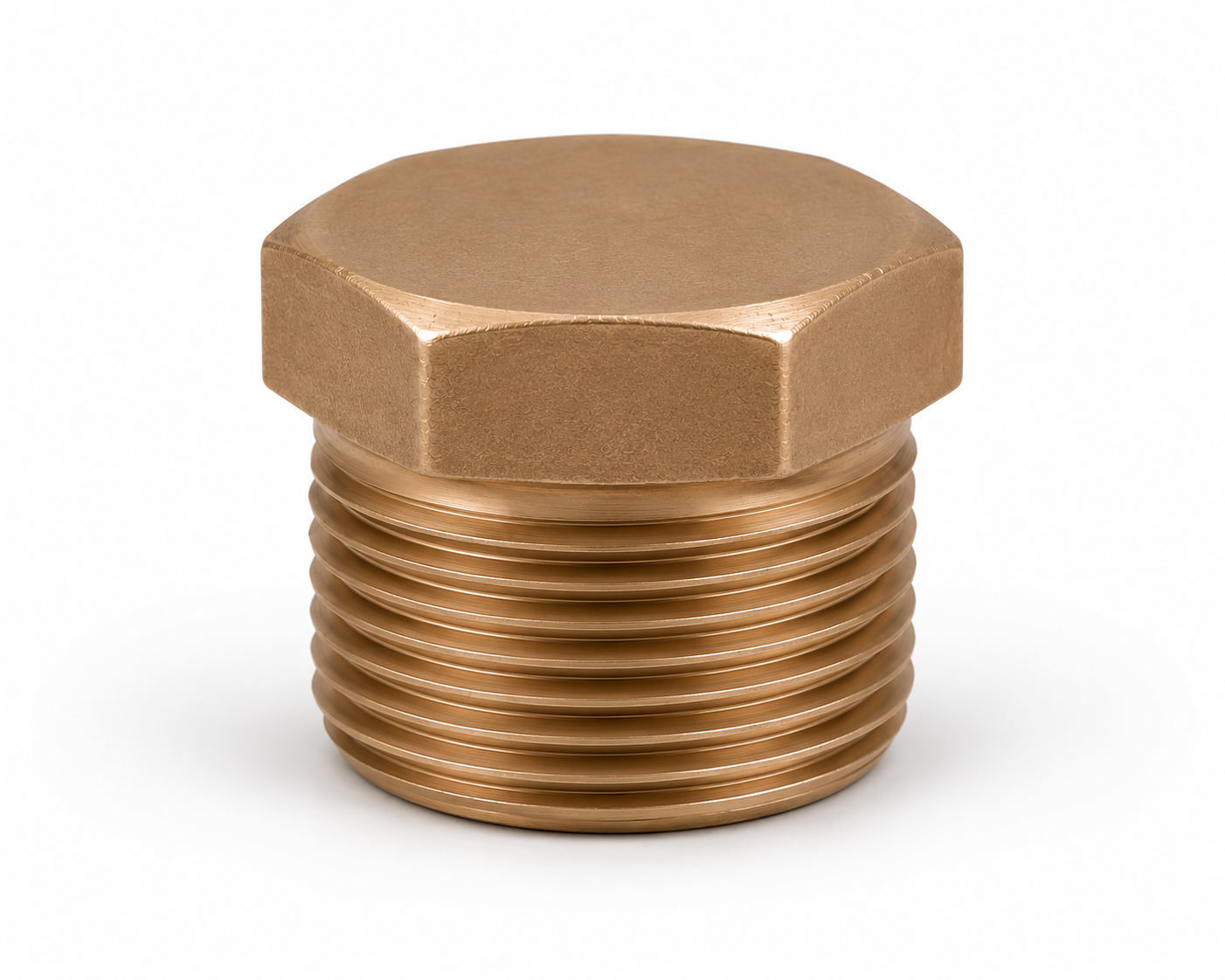

Hex Head Plug
Hex head plug

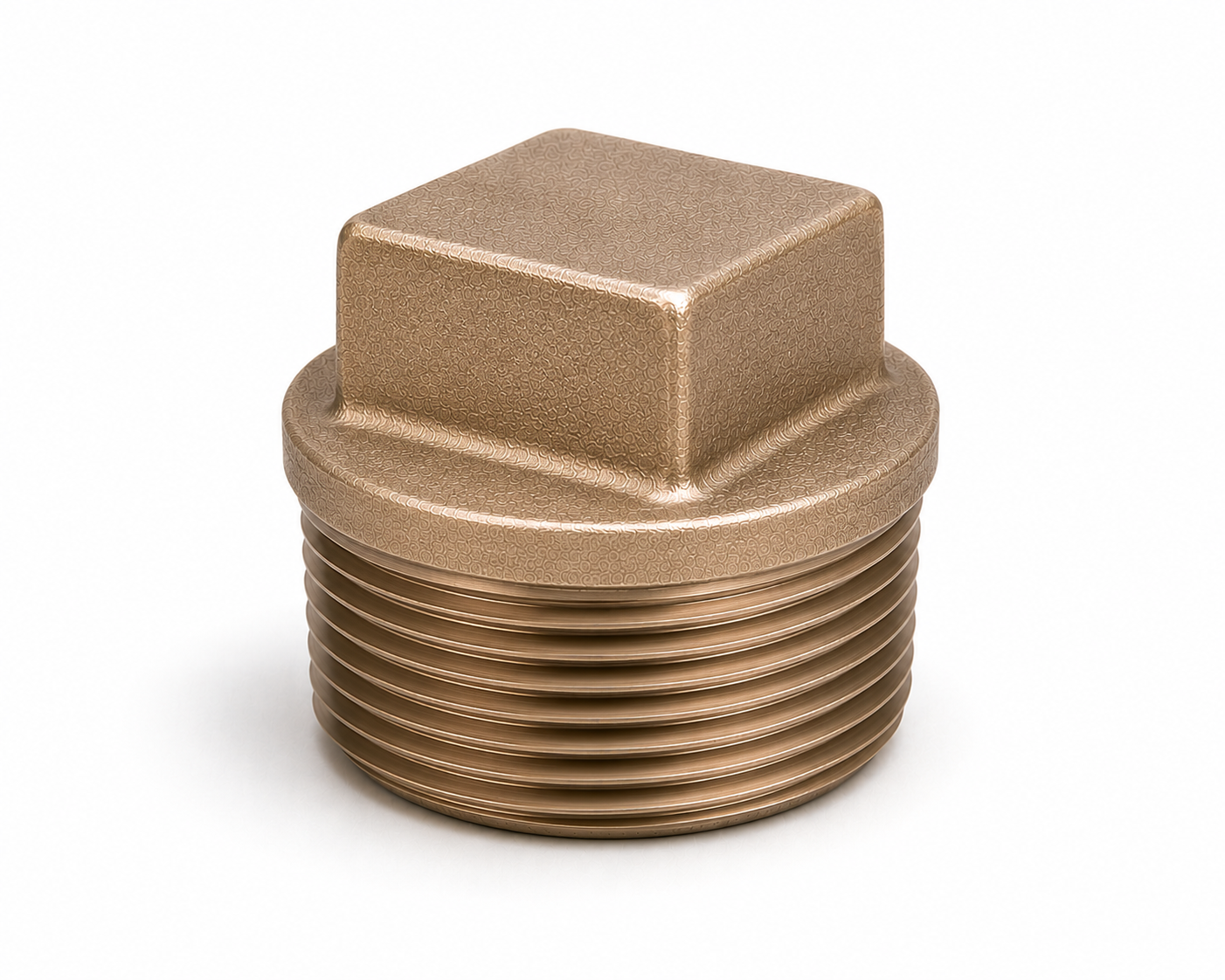

Square Head Plug
Square head plug

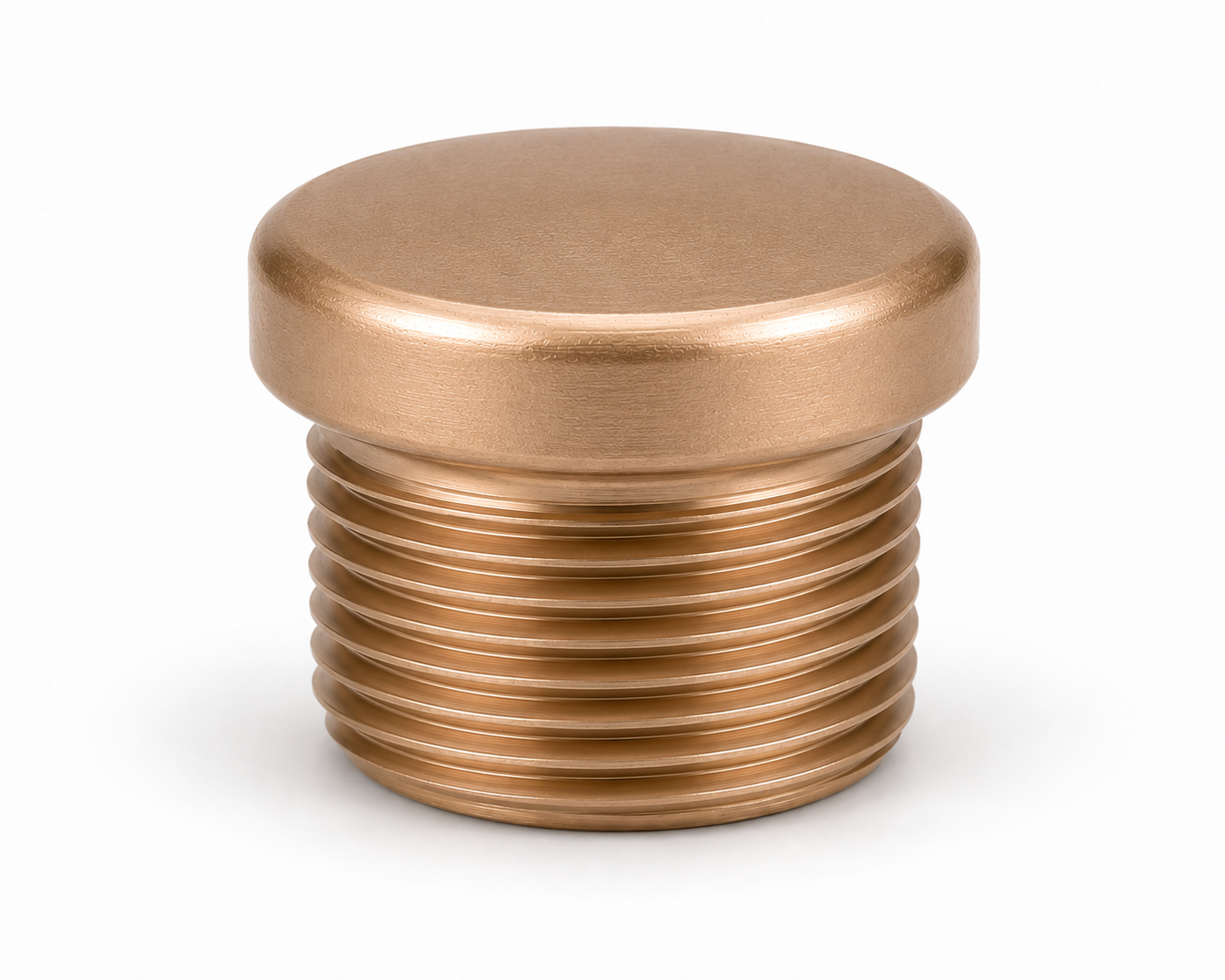

Round Head (Countersunk) Plug
Round/countersunk head plug
Hex Bushing
Threaded reducing bushing

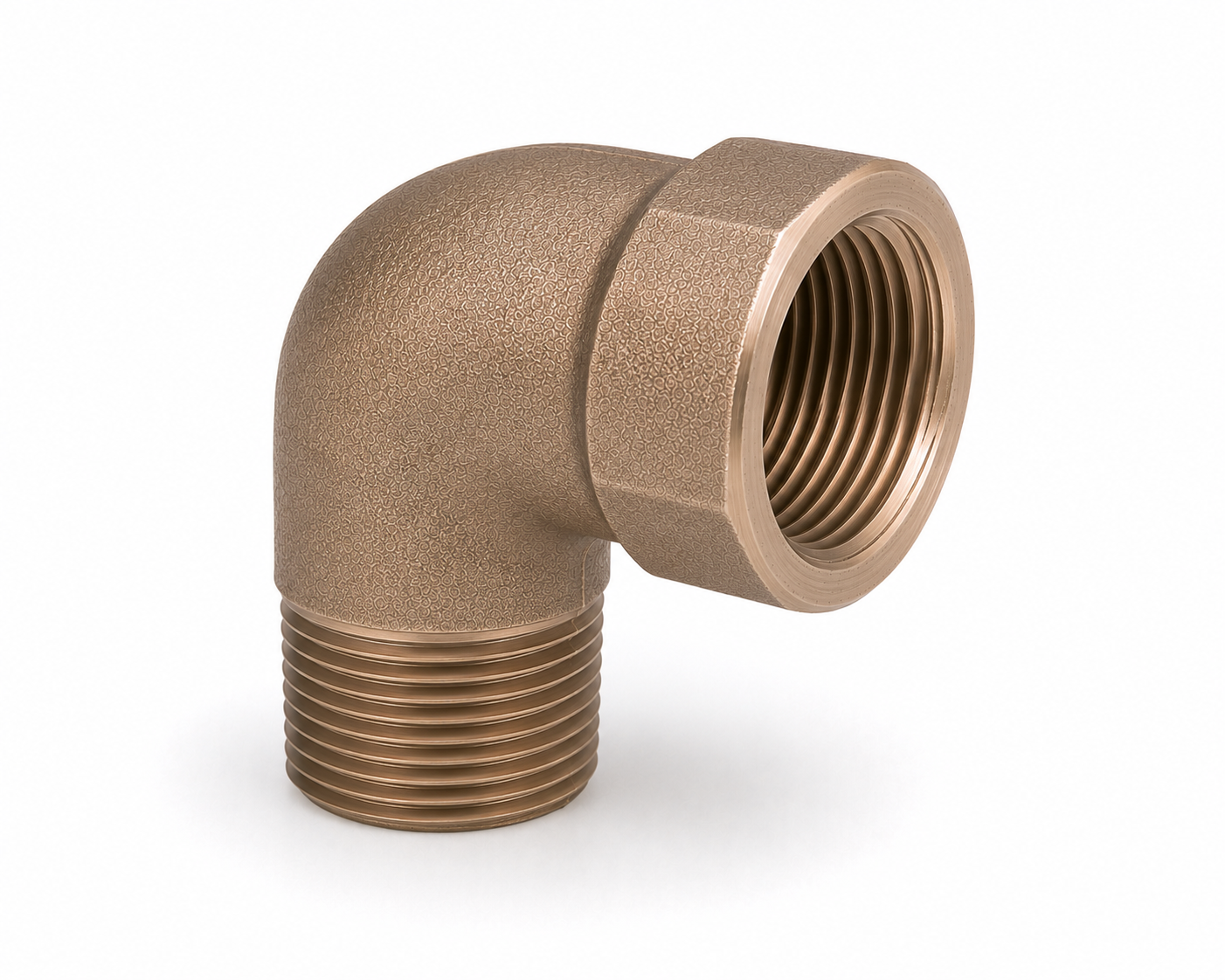

Street Elbow
Male x female 90° elbow

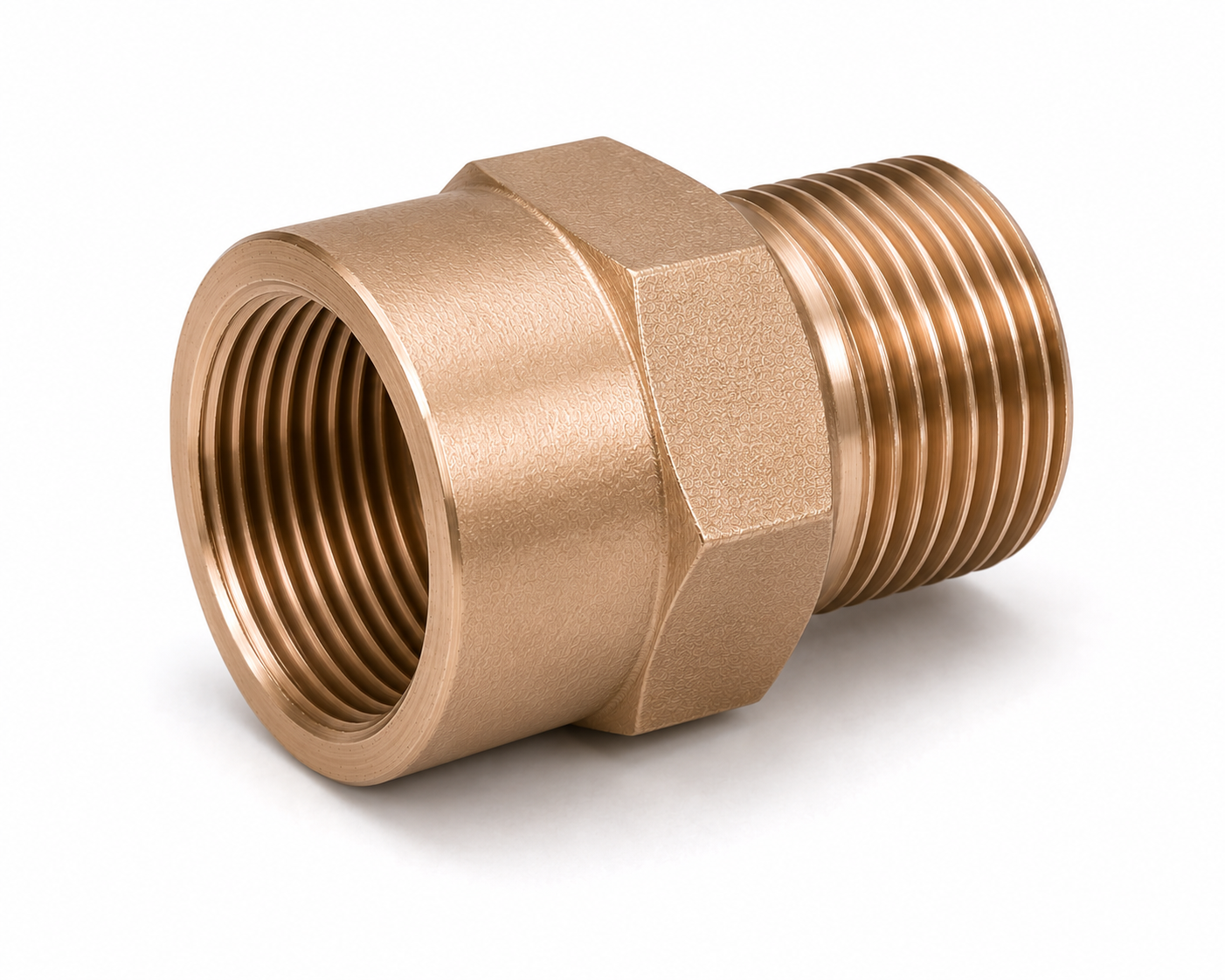

Male Adapter
Female to male thread adapter

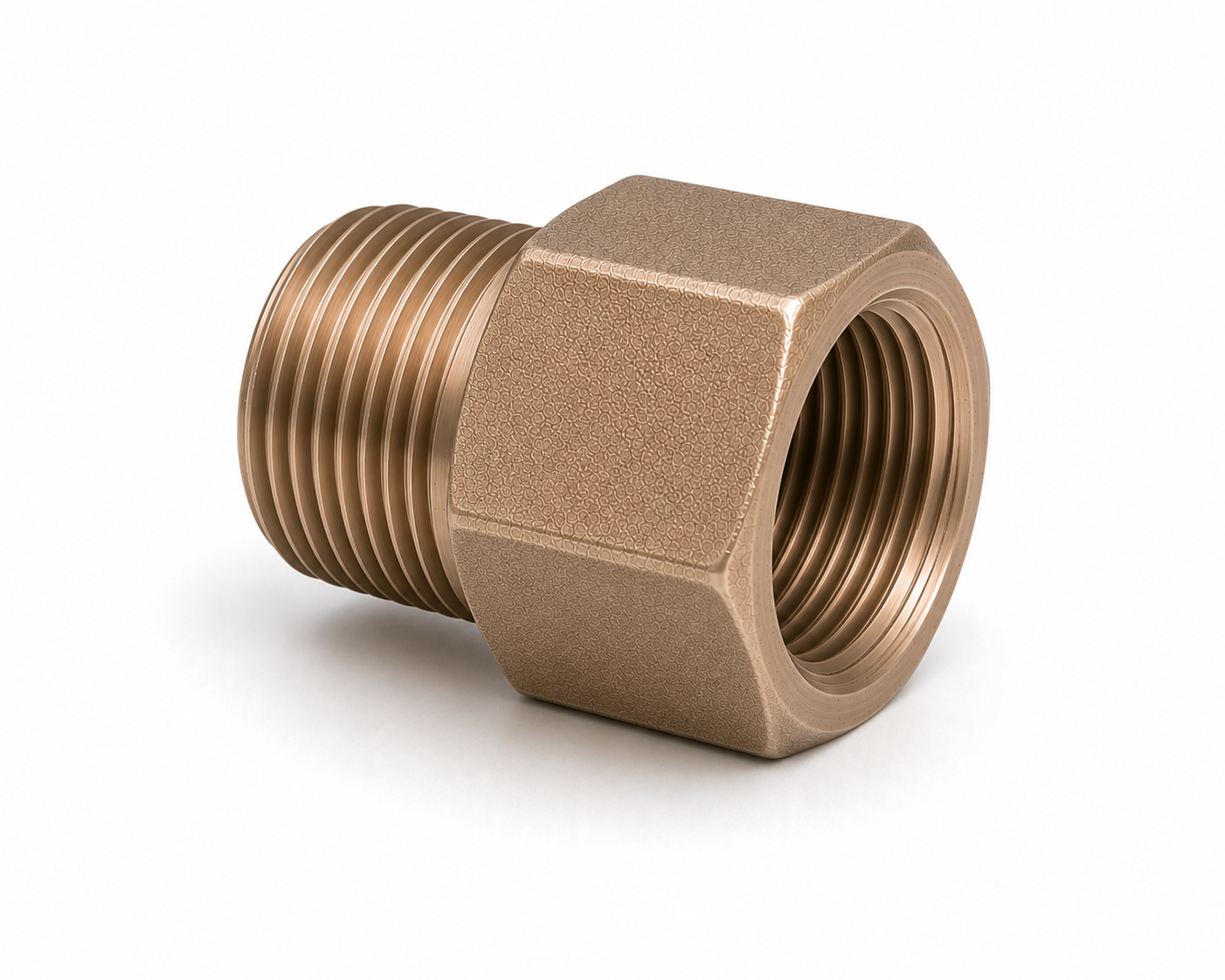

Female Adapter
Male to female thread adapter

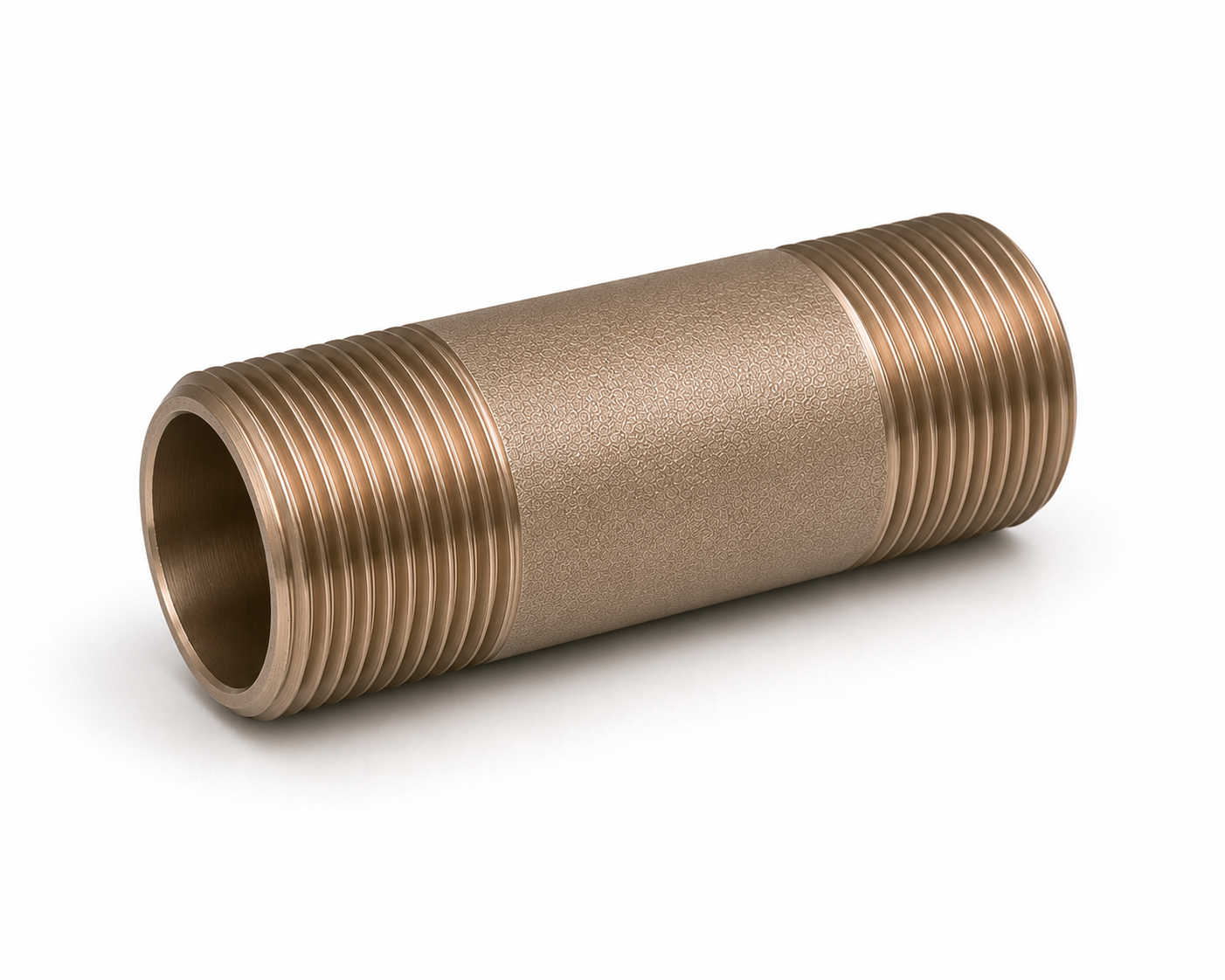

Pipe Nipple
Threaded both ends, standard length

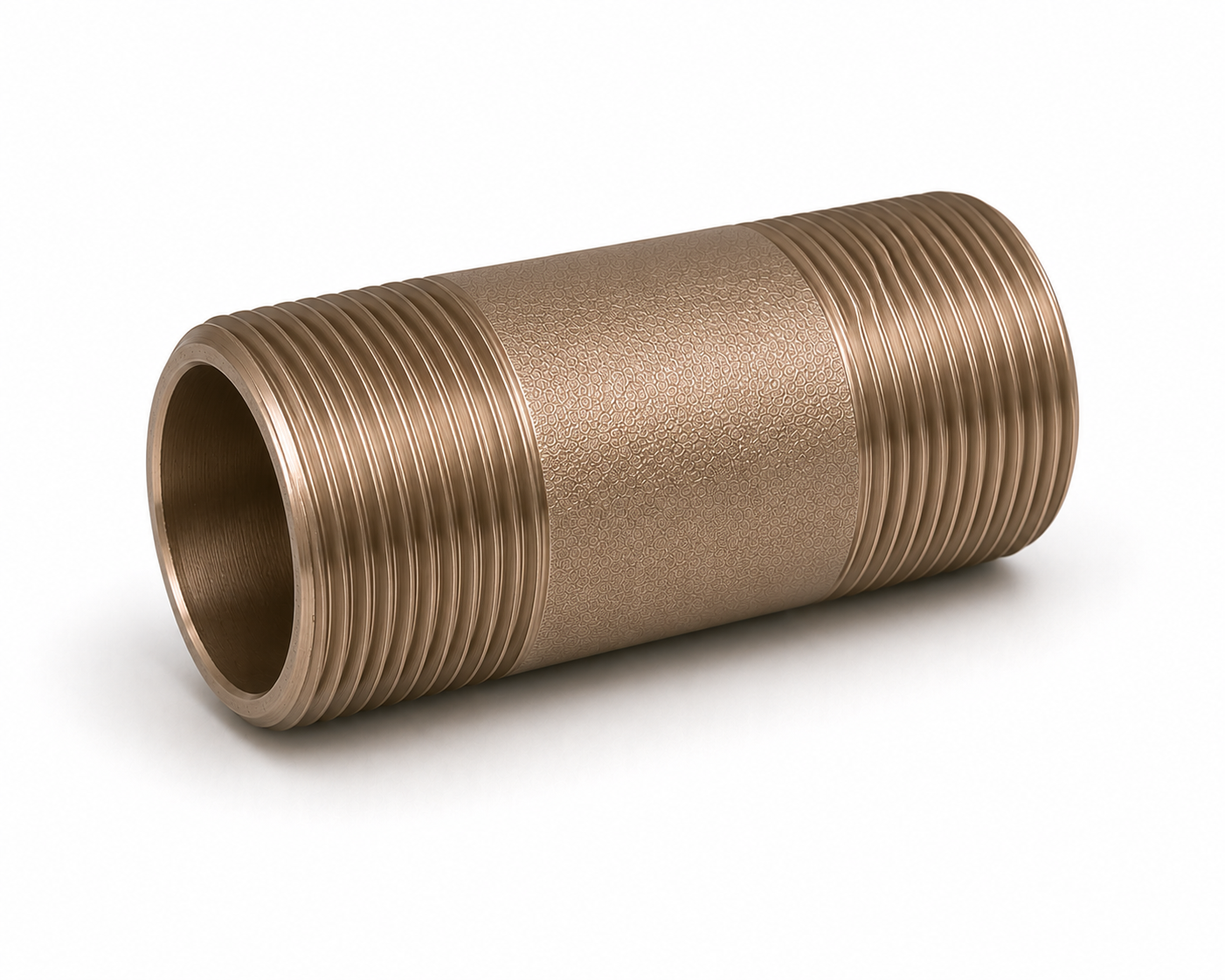

Barrel Nipple
Threaded both ends, no visible shoulder

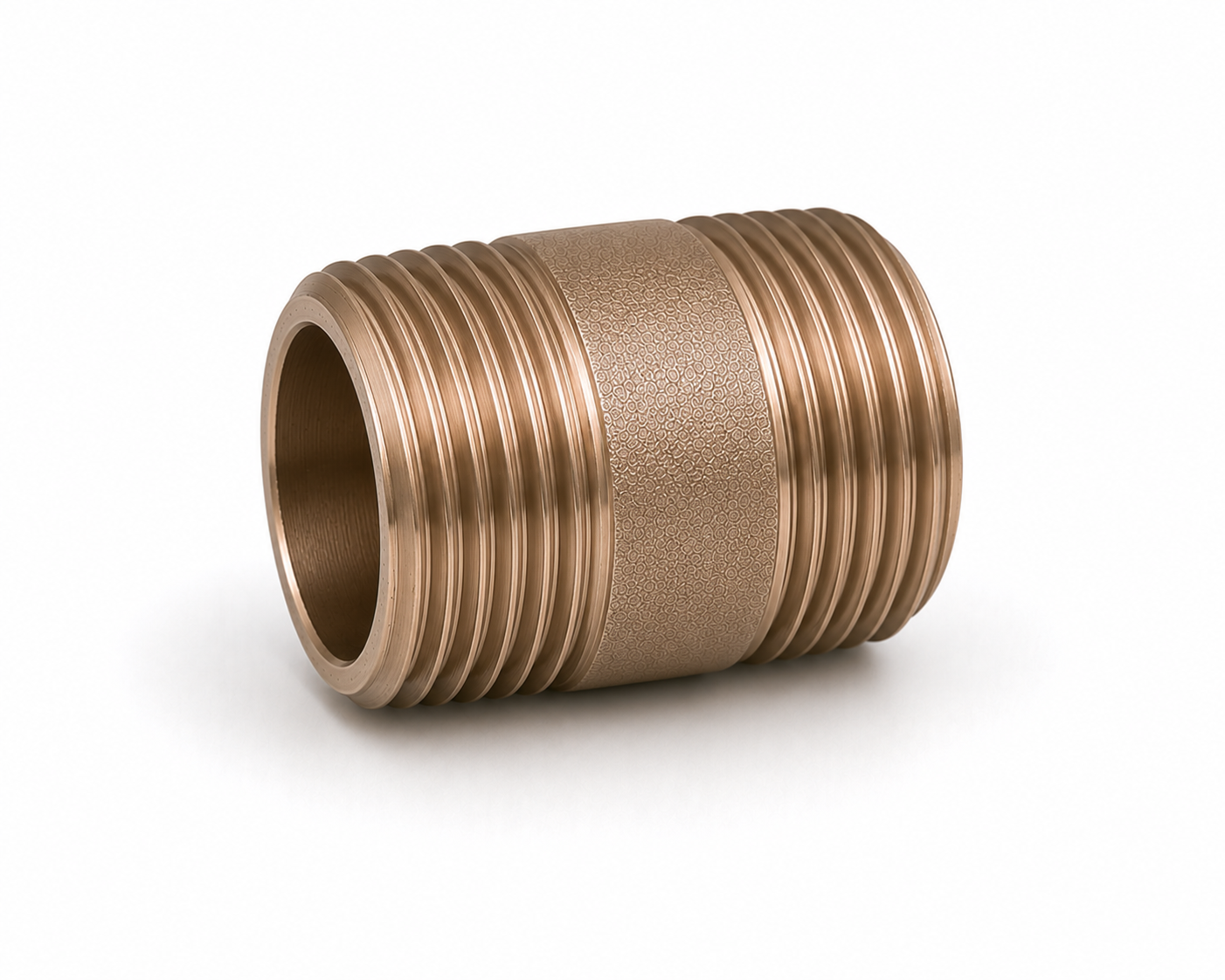

Close Nipple
Minimal-length threaded nipple

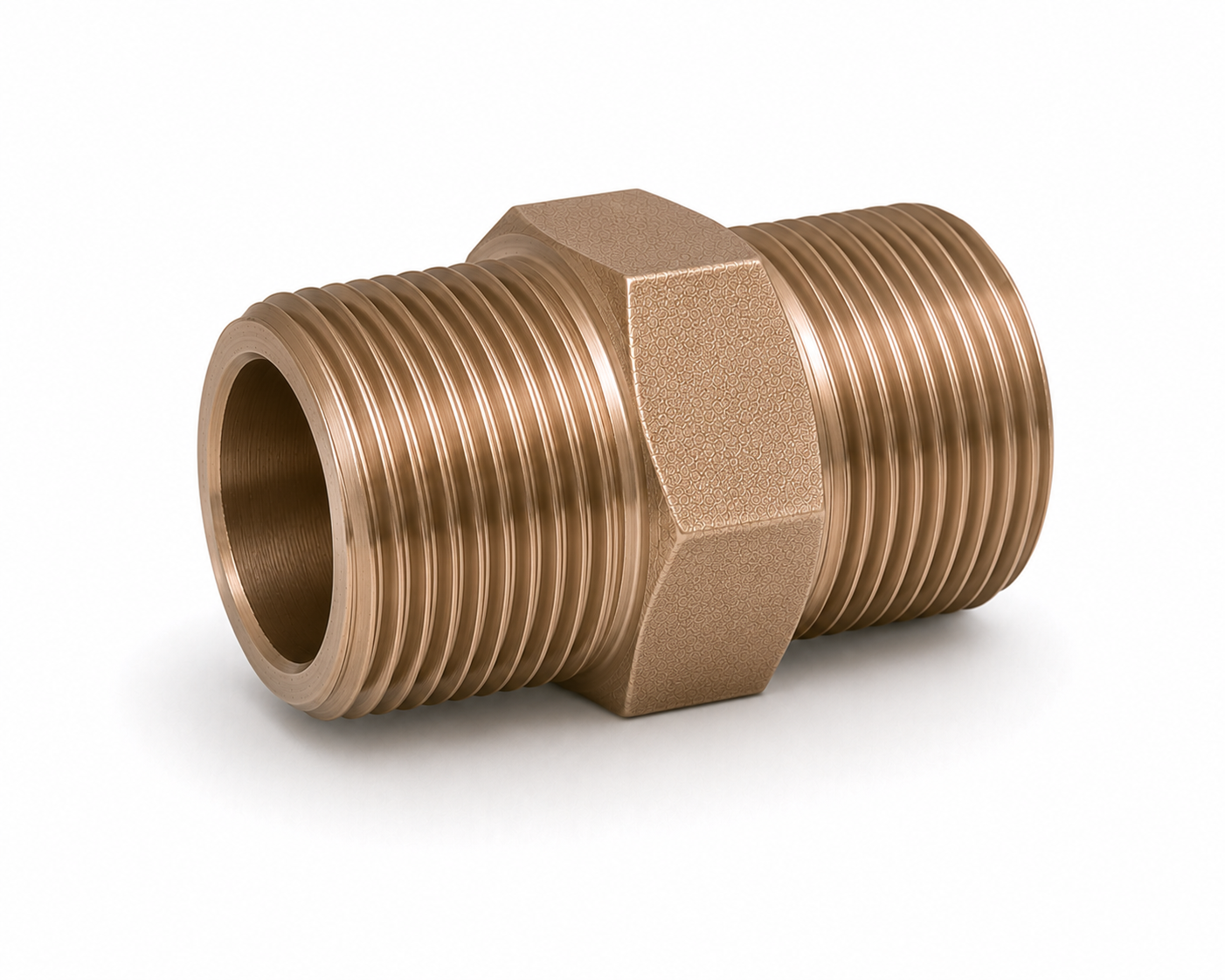

Hex Nipple
Hex-body threaded nipple

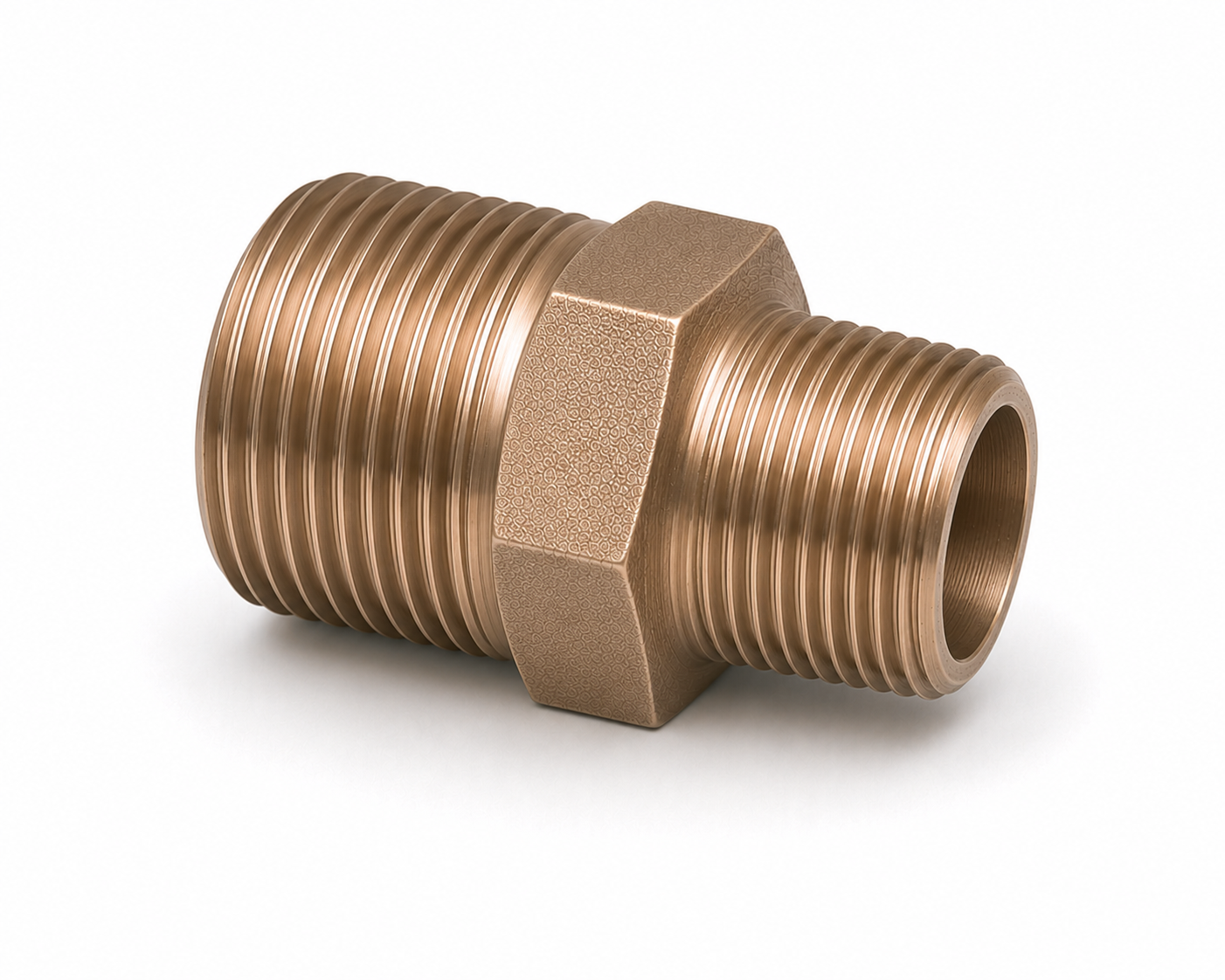

Reducing Nipple
Two different thread sizes

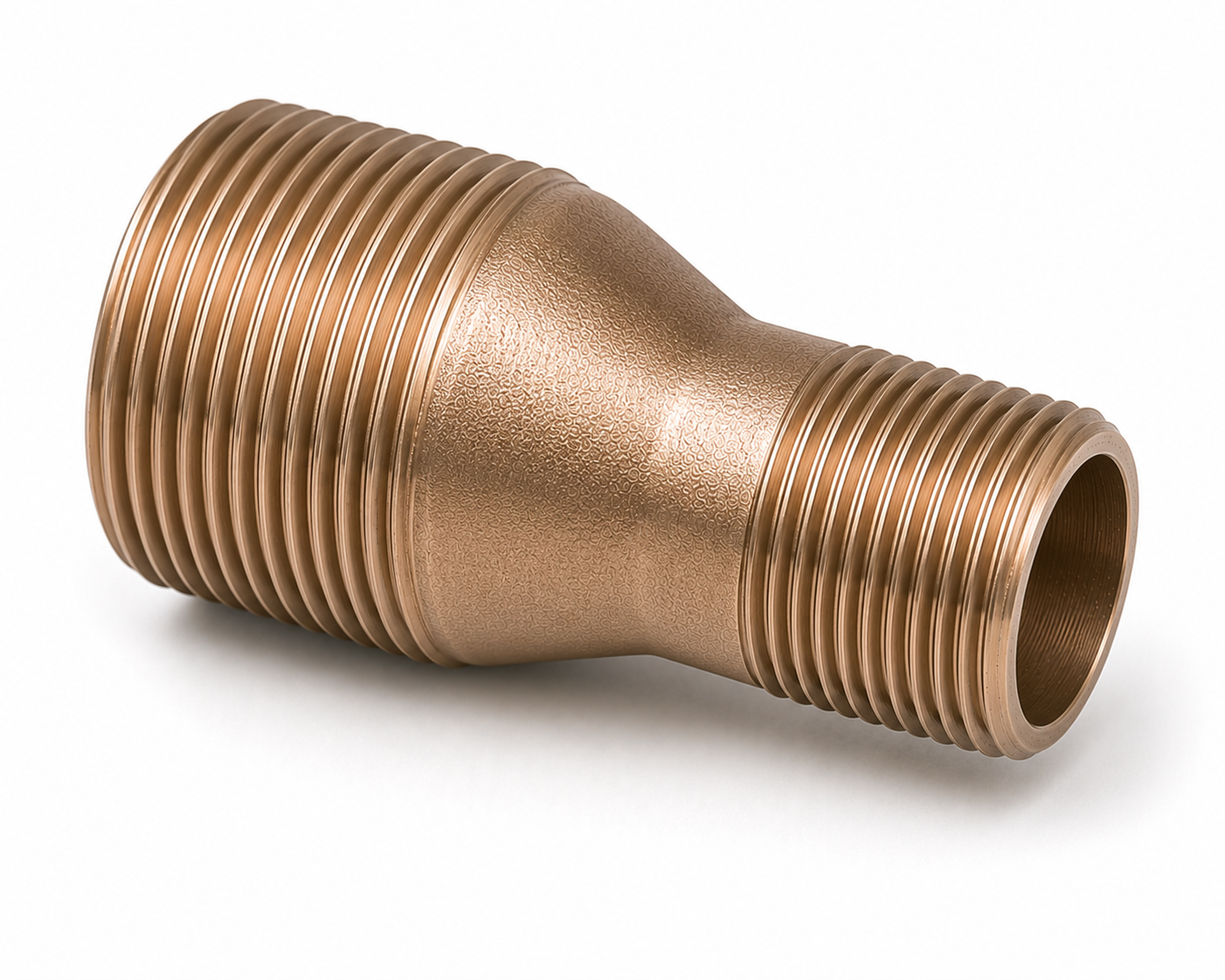

Swage Nipple
Concentric/eccentric swaged reducer
Representative Dimensions
Nominal reference values by size — exact dimensions vary slightly by fitting type. Full certified dimensional data sheets are available on request.
| NPS | Thread Type | Thread Length (mm) | Wall Thickness Class 3000 (mm) | Body Length — Elbow (mm) |
|---|---|---|---|---|
| 1/8" | NPT / BSPT | 9.7 | 2.3 | 17.5 |
| 1/4" | NPT / BSPT | 10.9 | 2.4 | 20.6 |
| 1/2" | NPT / BSPT | 14.5 | 2.9 | 27.0 |
| 3/4" | NPT / BSPT | 15.7 | 3.0 | 30.2 |
| 1" | NPT / BSPT | 17.8 | 3.4 | 38.1 |
| 1-1/2" | NPT / BSPT | 20.6 | 3.7 | 47.8 |
| 2" | NPT / BSPT | 23.4 | 3.9 | 57.2 |
| 3" | NPT / BSPT | 28.6 | 4.5 | 76.2 |
| 4" | NPT / BSPT | 31.8 | 5.1 | 95.2 |
Other Product Categories
Request Pricing on Threaded (NPT/BSP) Fittings
Share your size, grade and quantity requirements — we'll respond with a formal quotation.
