Copper-Nickel Forged Fittings

Socket Weld

90° Elbow

Changes pipe direction by 90°

Socket Weld

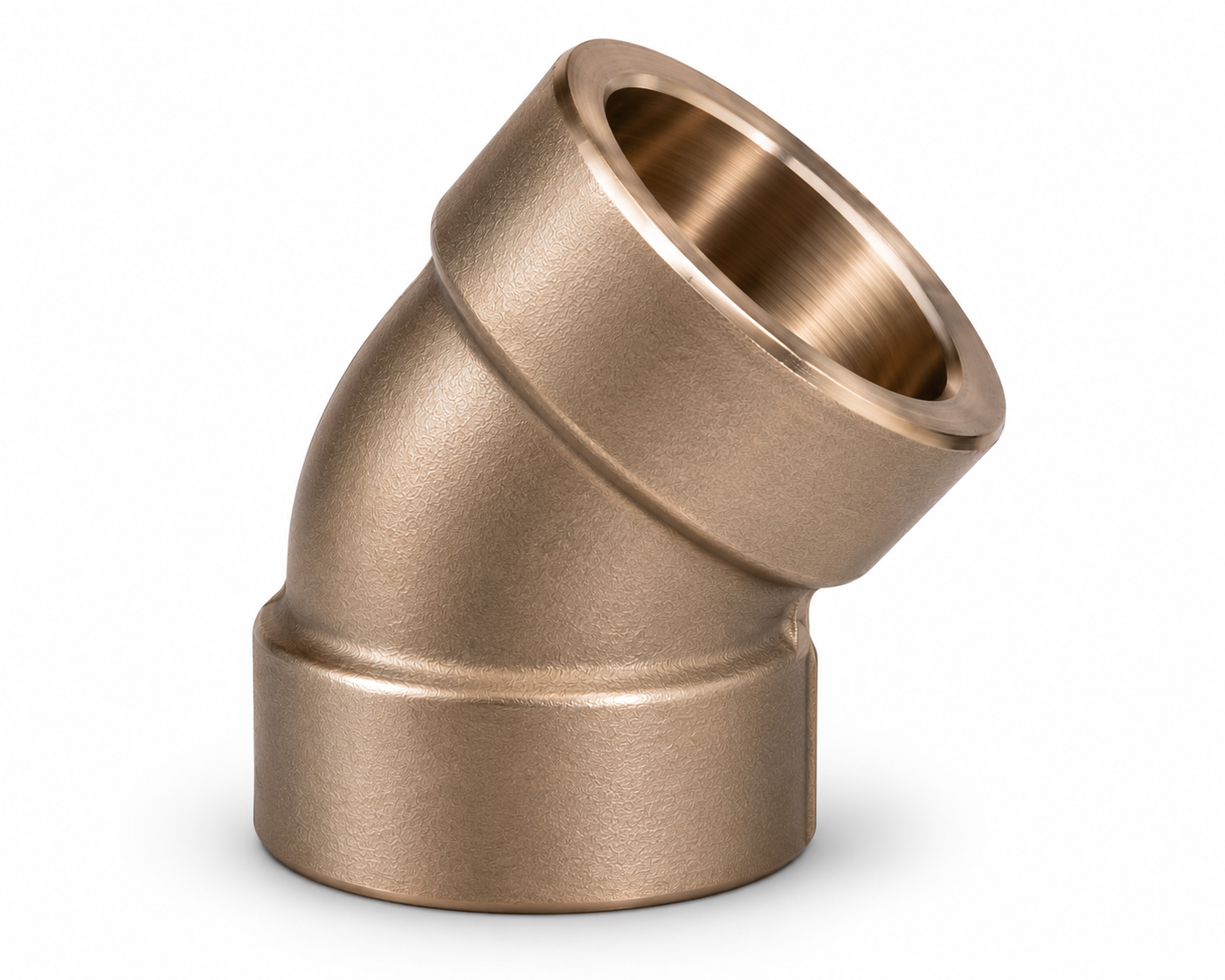

45° Elbow

Changes pipe direction by 45°

Socket Weld

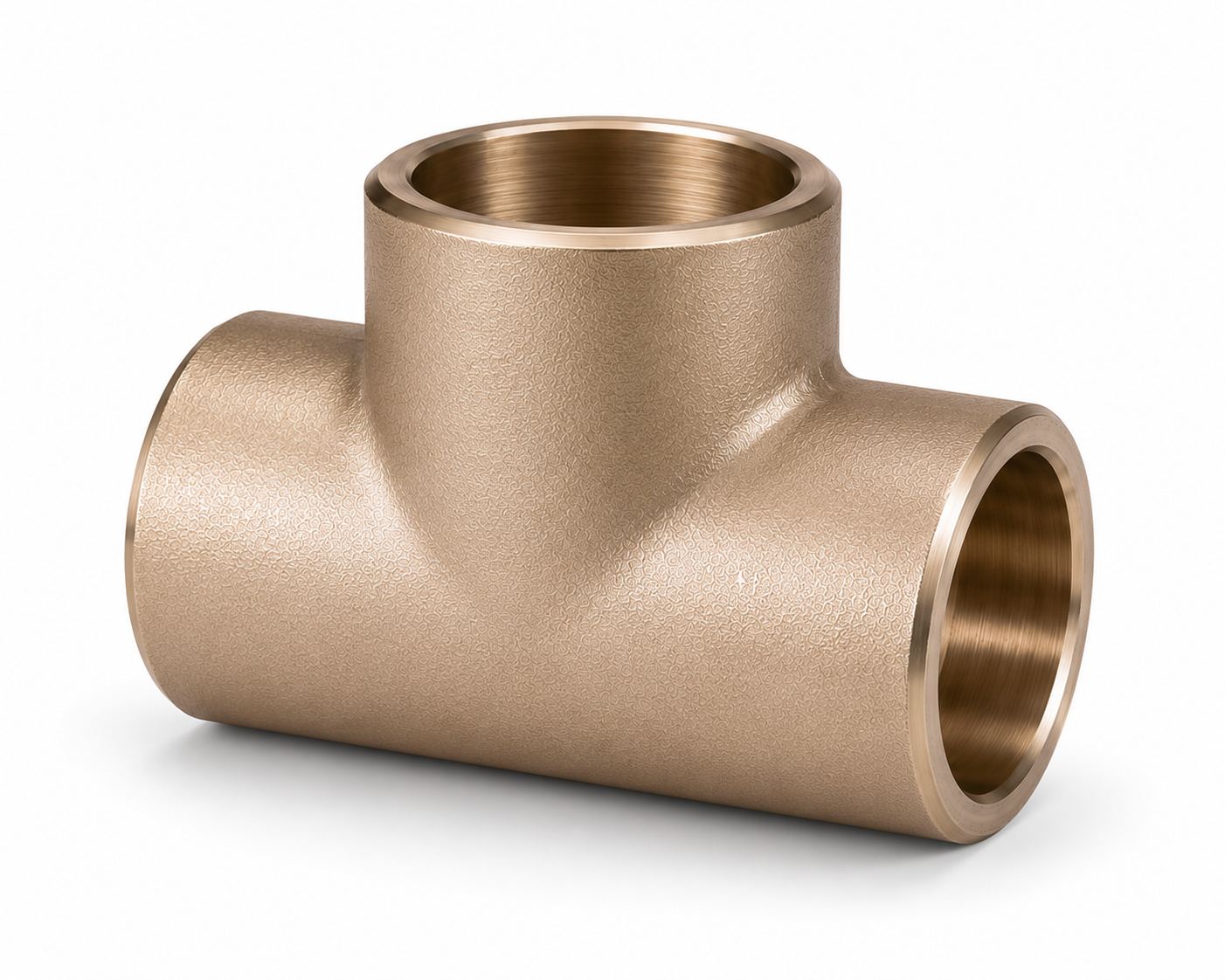

Tee

Equal three-way branch connection

Socket Weld

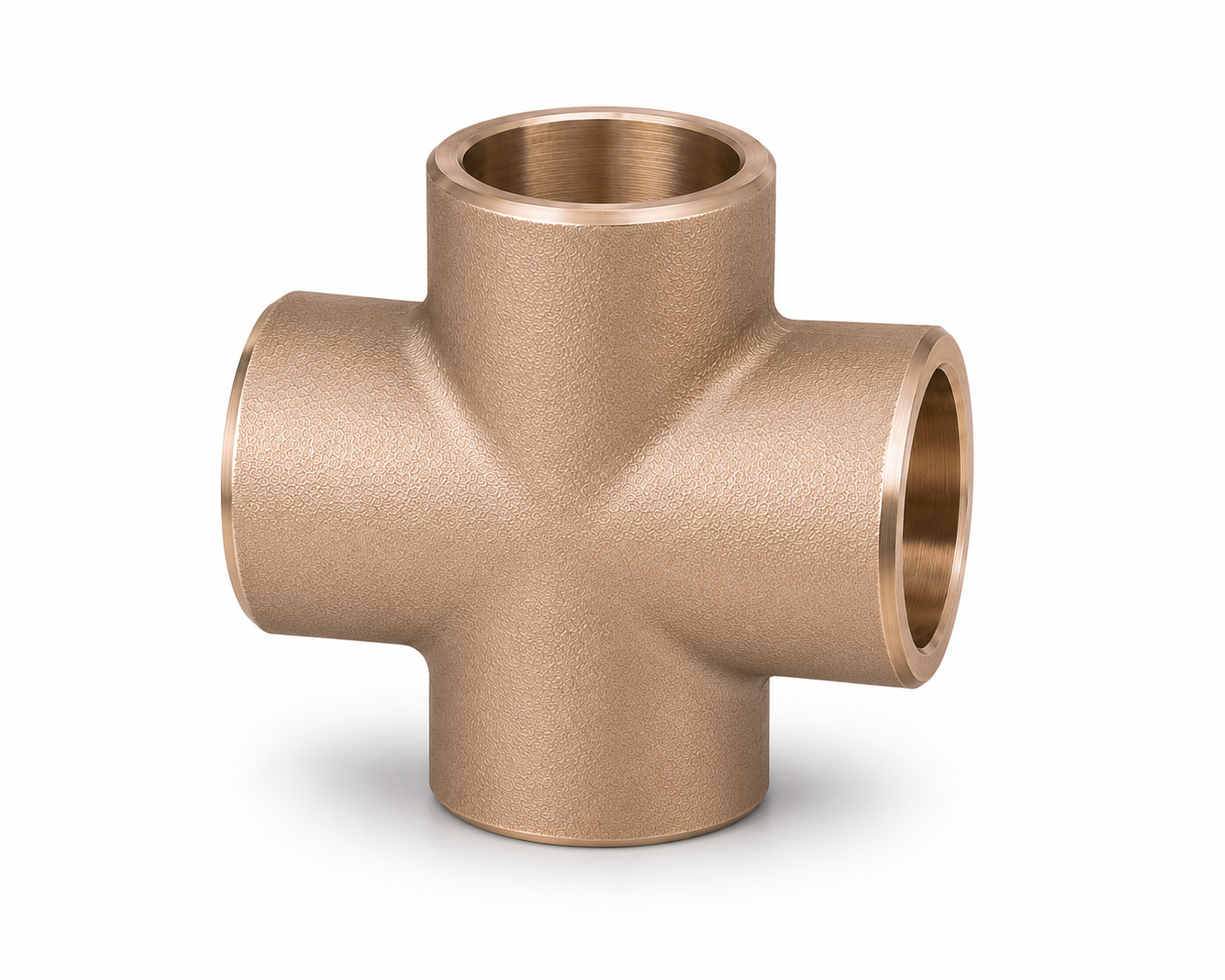

Cross

Four-way equal branch connection

Socket Weld

Full Coupling

Joins two equal-size pipe ends

Socket Weld

Half Coupling

Branch connection welded to run pipe

Socket Weld

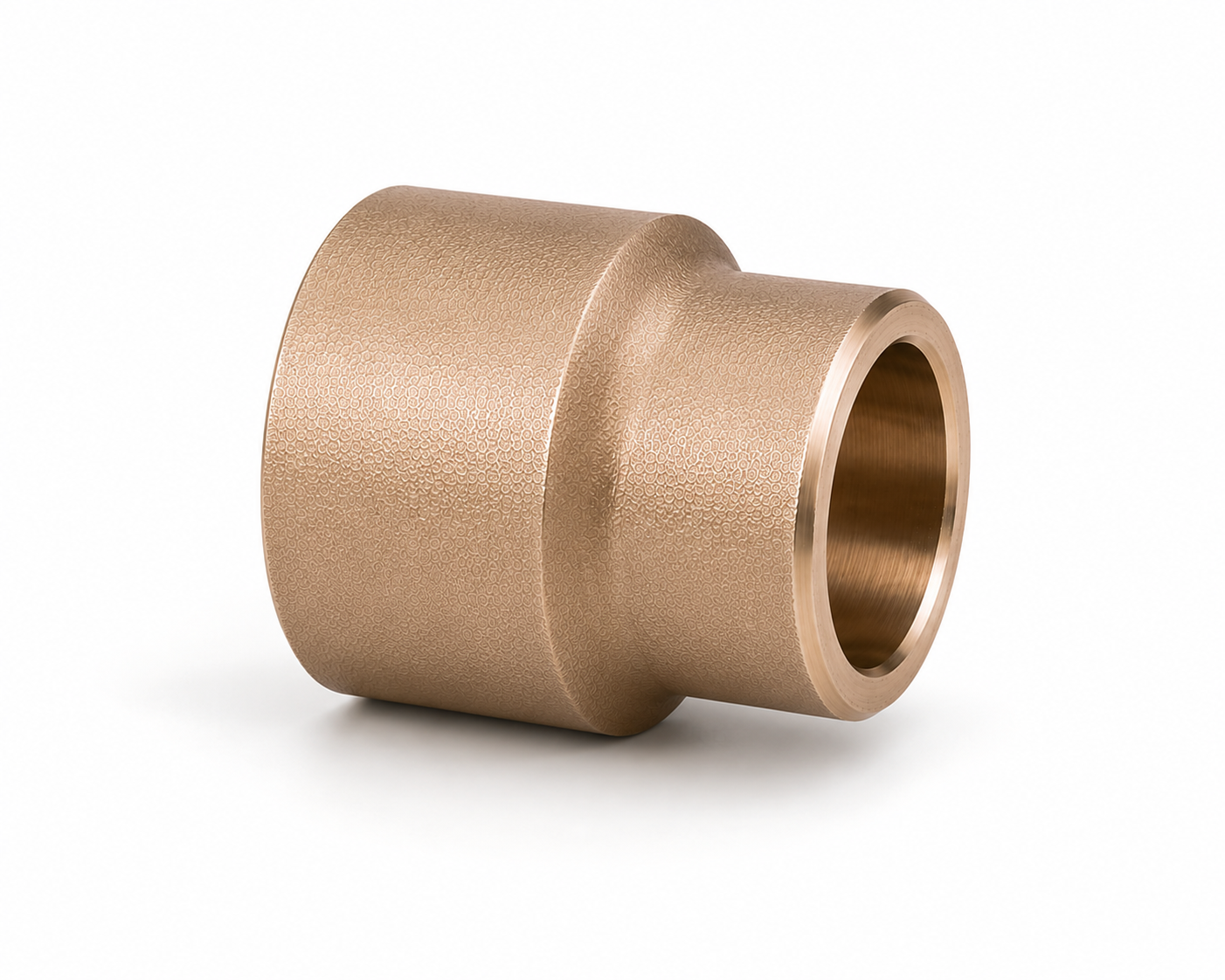

Reducing Coupling

Joins two different pipe sizes

Socket Weld

Union

Union

Socket Weld

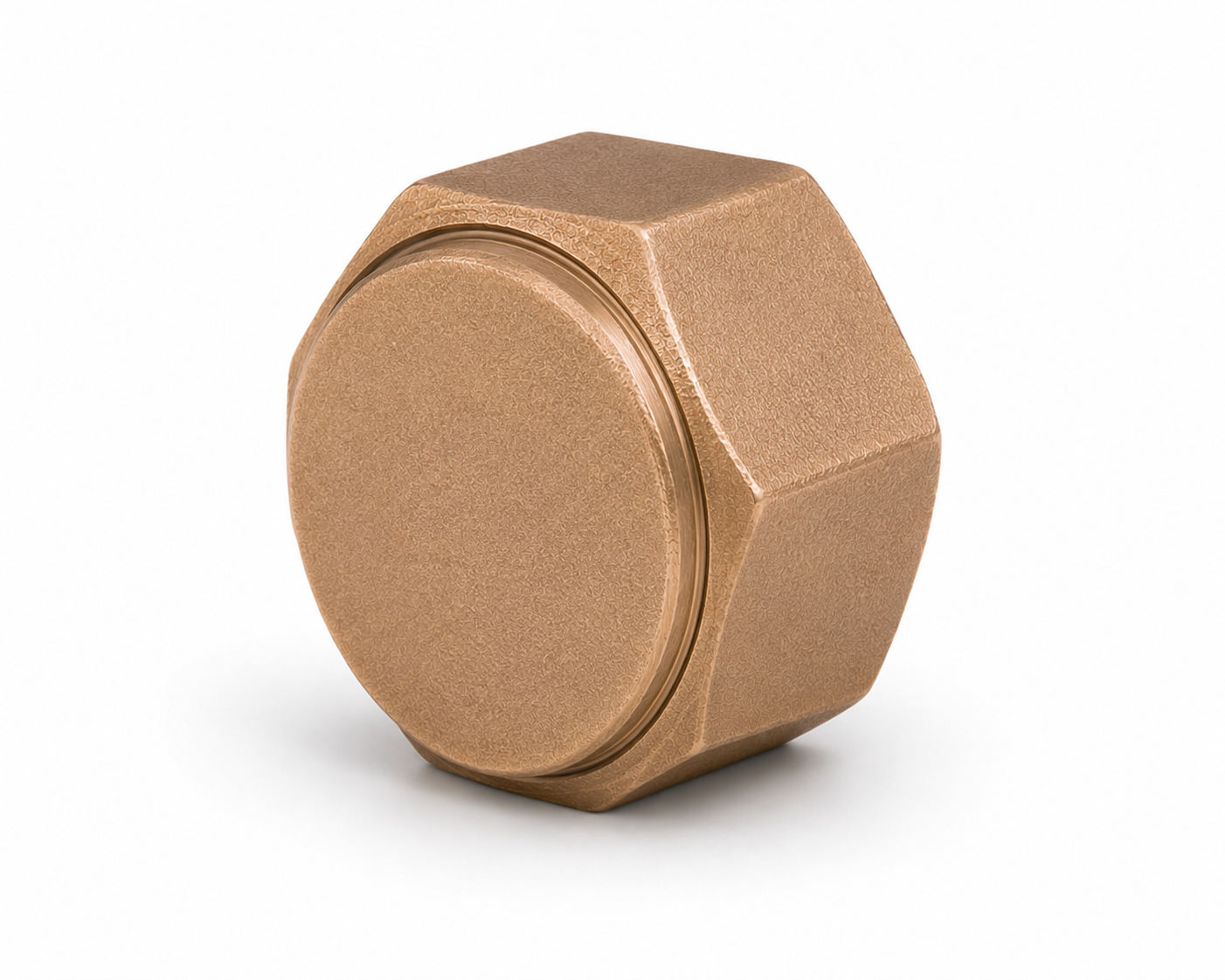

Cap

Cap

Socket Weld

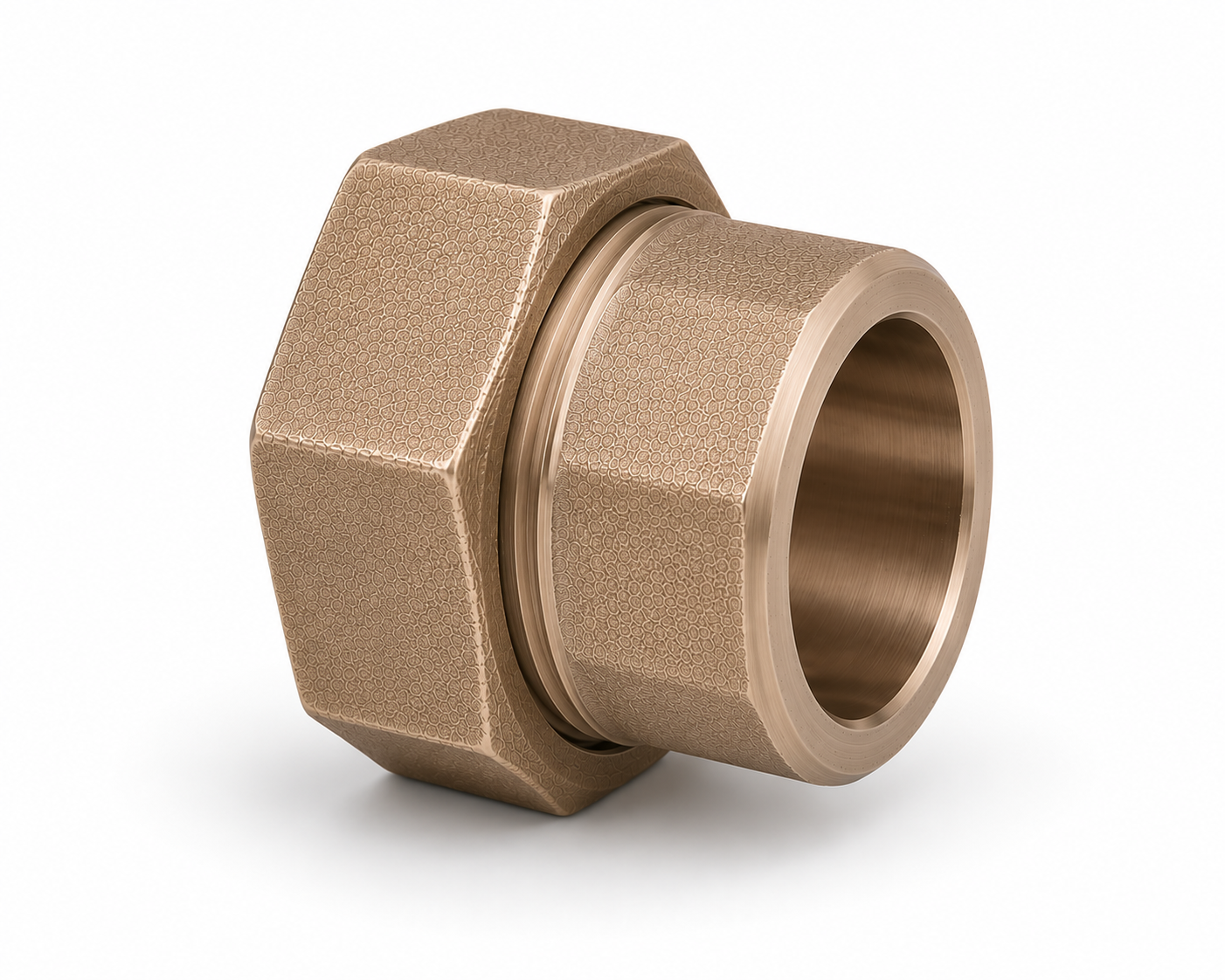

Plug

Plug

Socket Weld

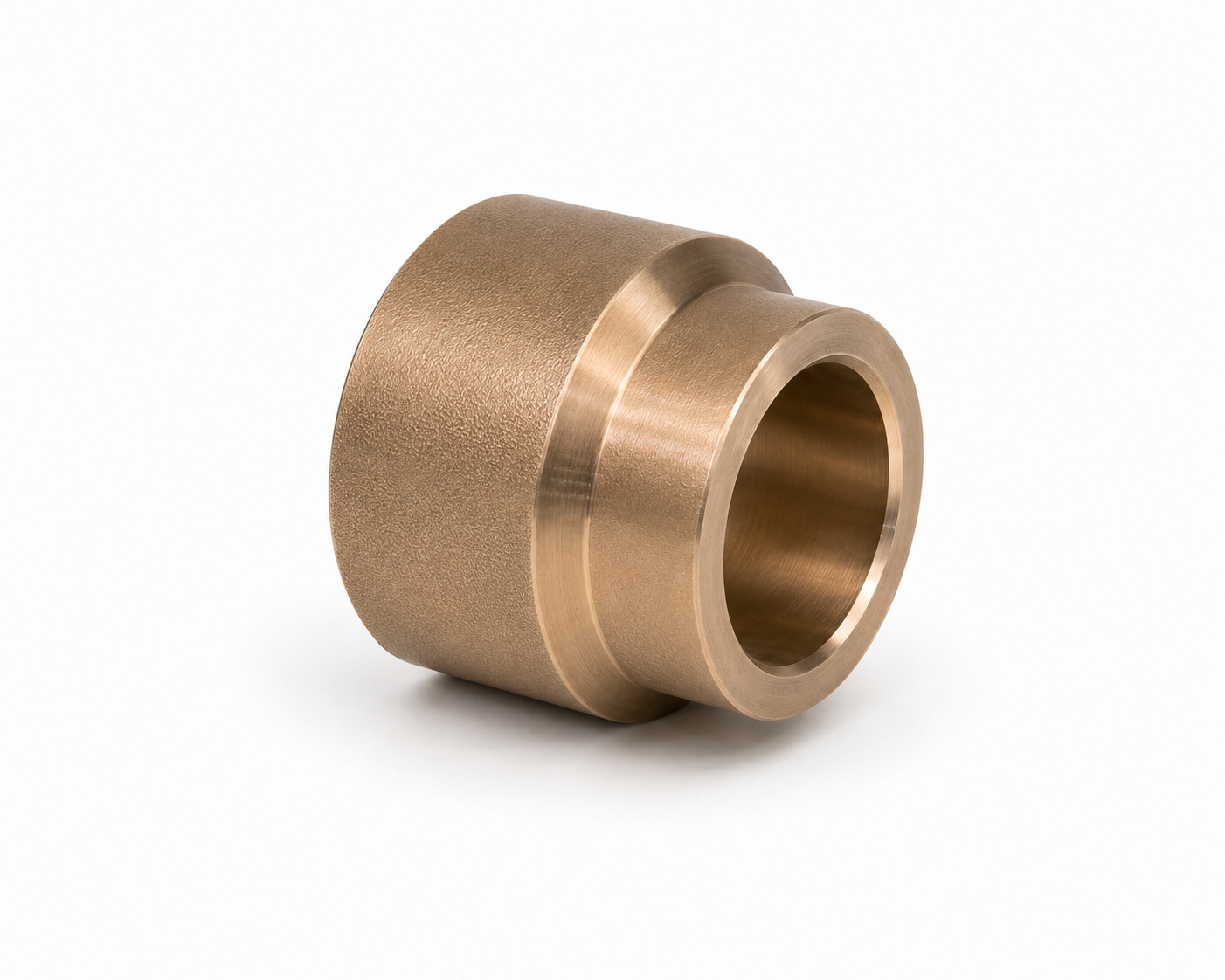

Reducer Insert

Socket-welding reducer insert

Socket Weld

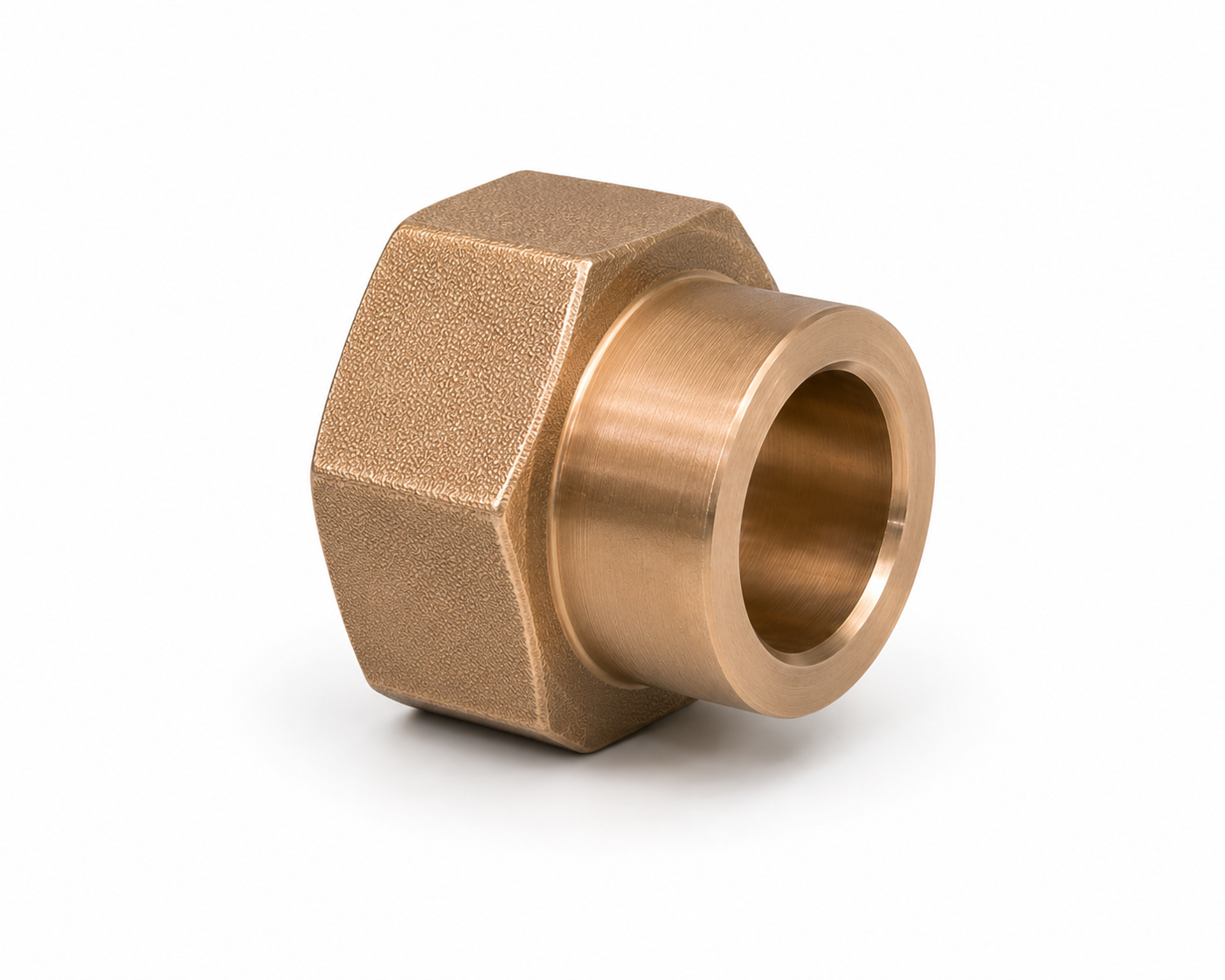

Boss

Weld boss for branch/instrument connection

Threaded

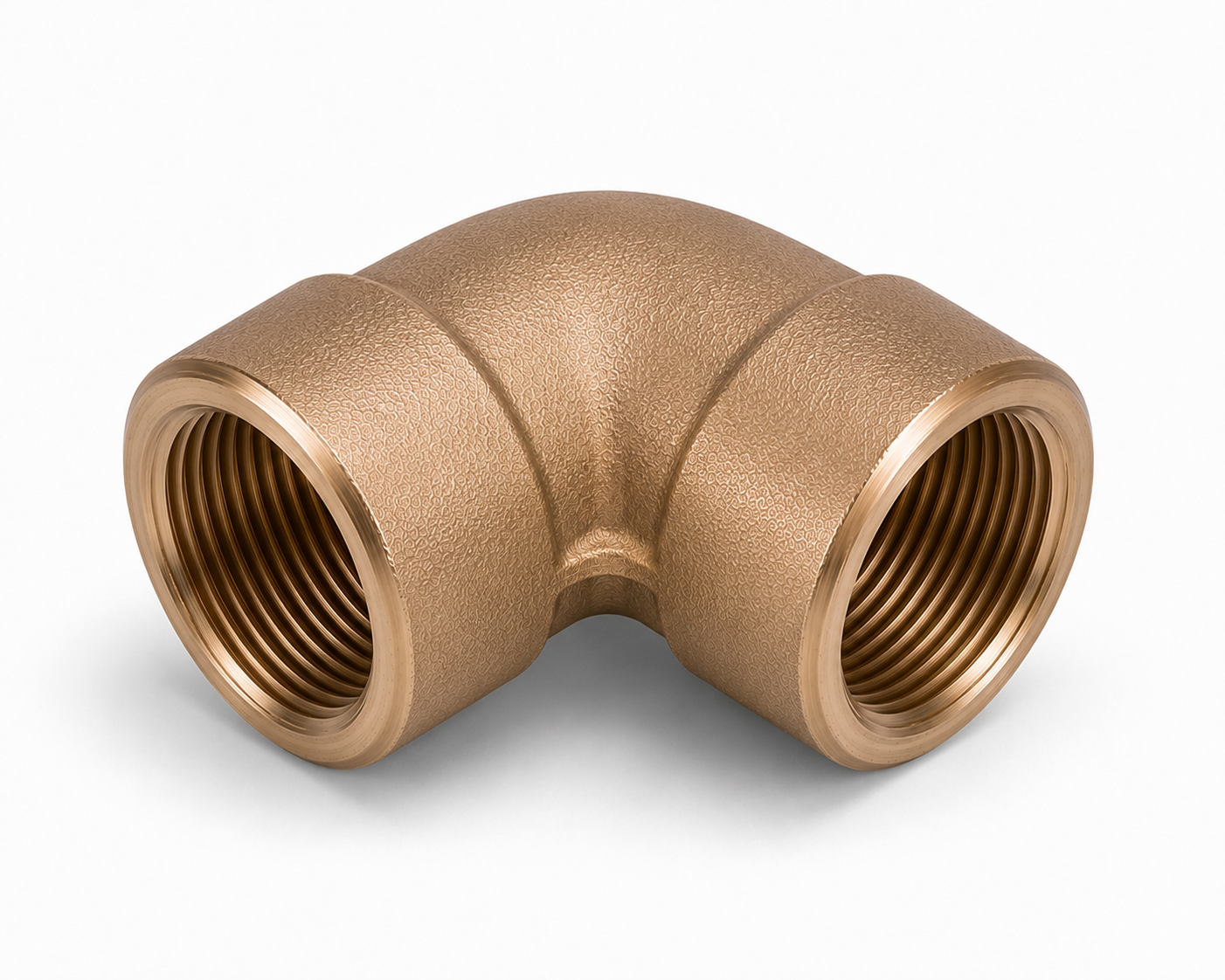

90° Elbow

Changes pipe direction by 90°

Threaded

45° Elbow

Changes pipe direction by 45°

Threaded

Equal Tee

Equal three-way branch connection

Threaded

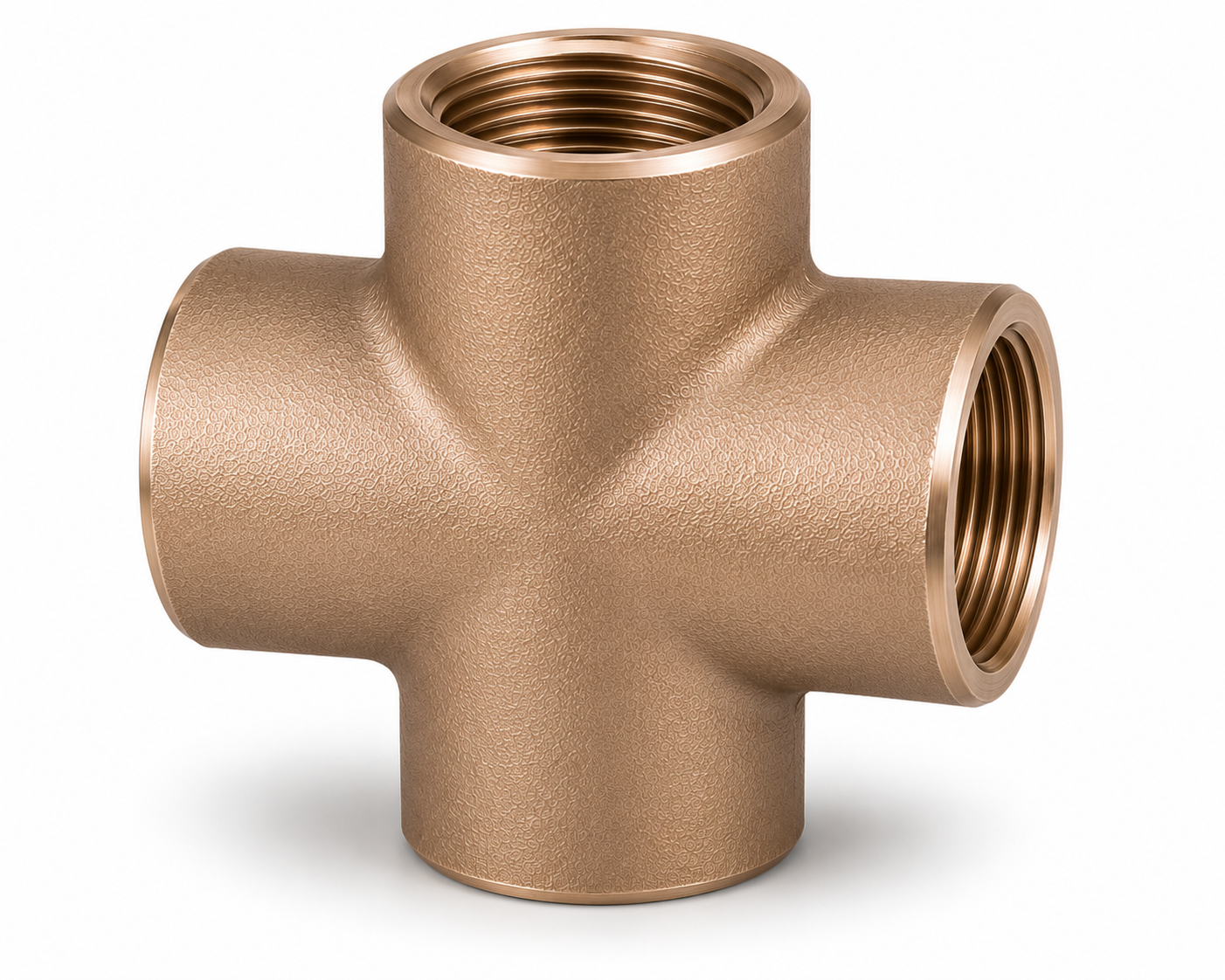

Cross

Four-way equal branch connection

Threaded

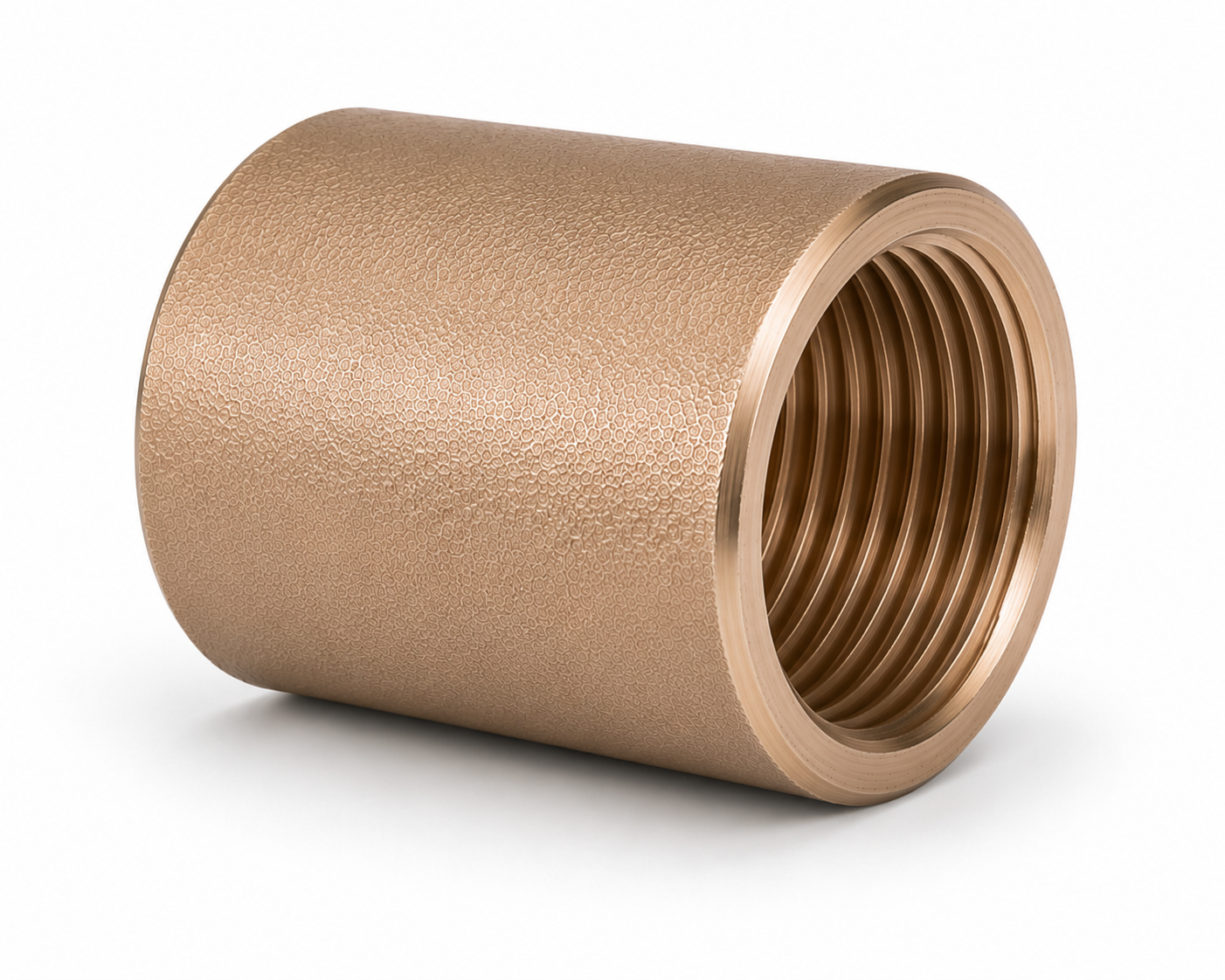

Full Coupling

Joins two equal-size pipe ends

Threaded

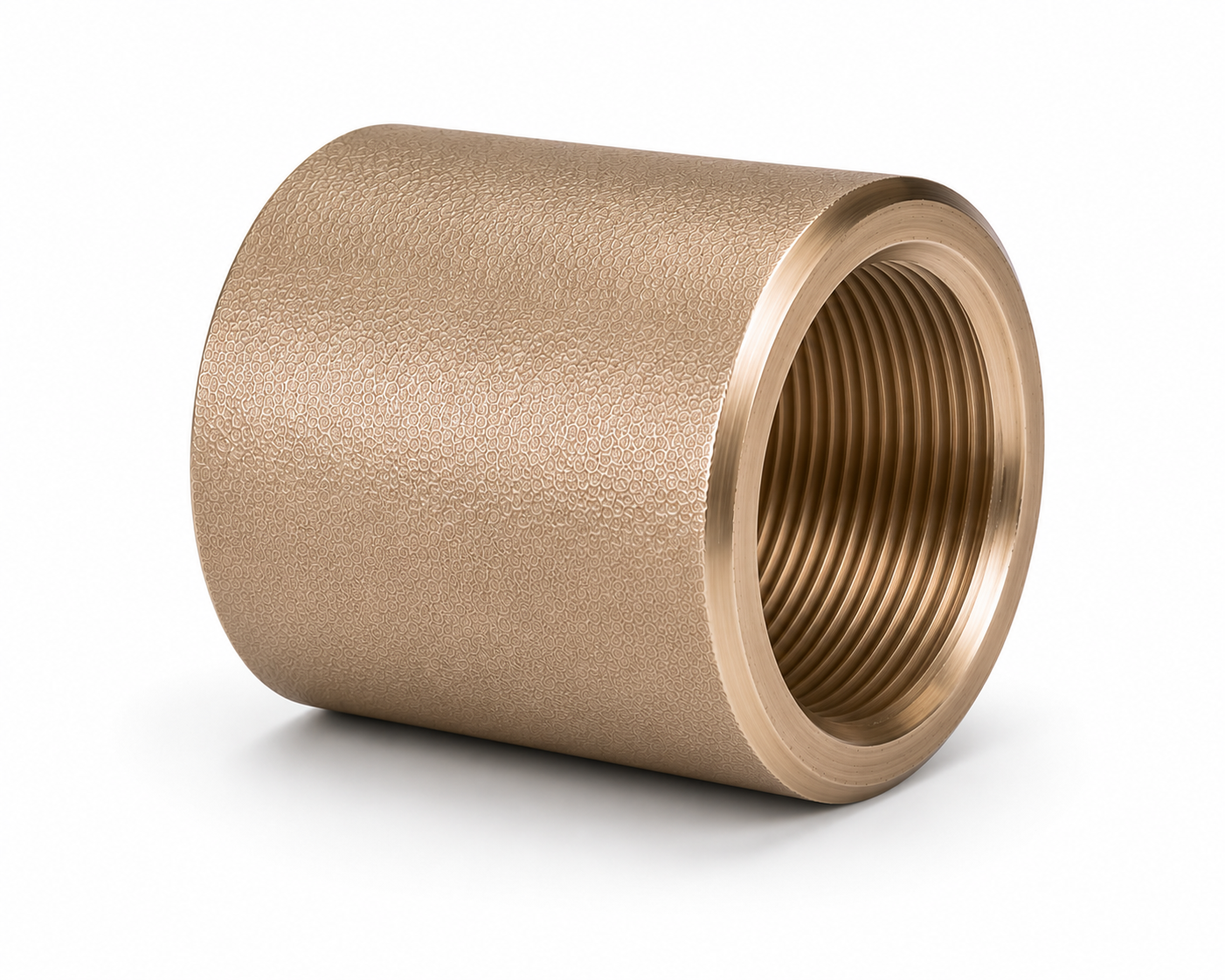

Half Coupling

Branch connection welded to run pipe

Threaded

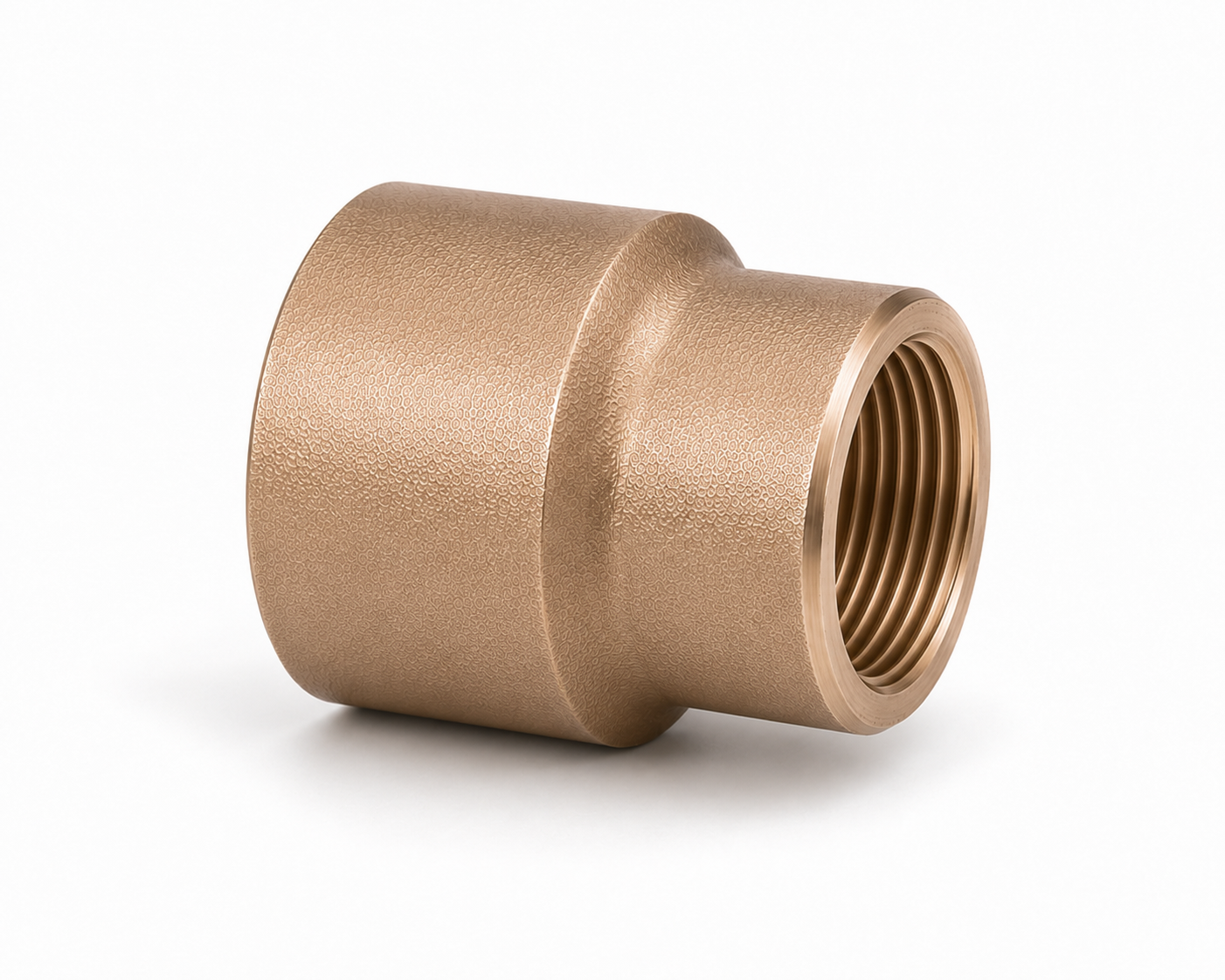

Reducing Coupling

Joins two different pipe sizes

Threaded

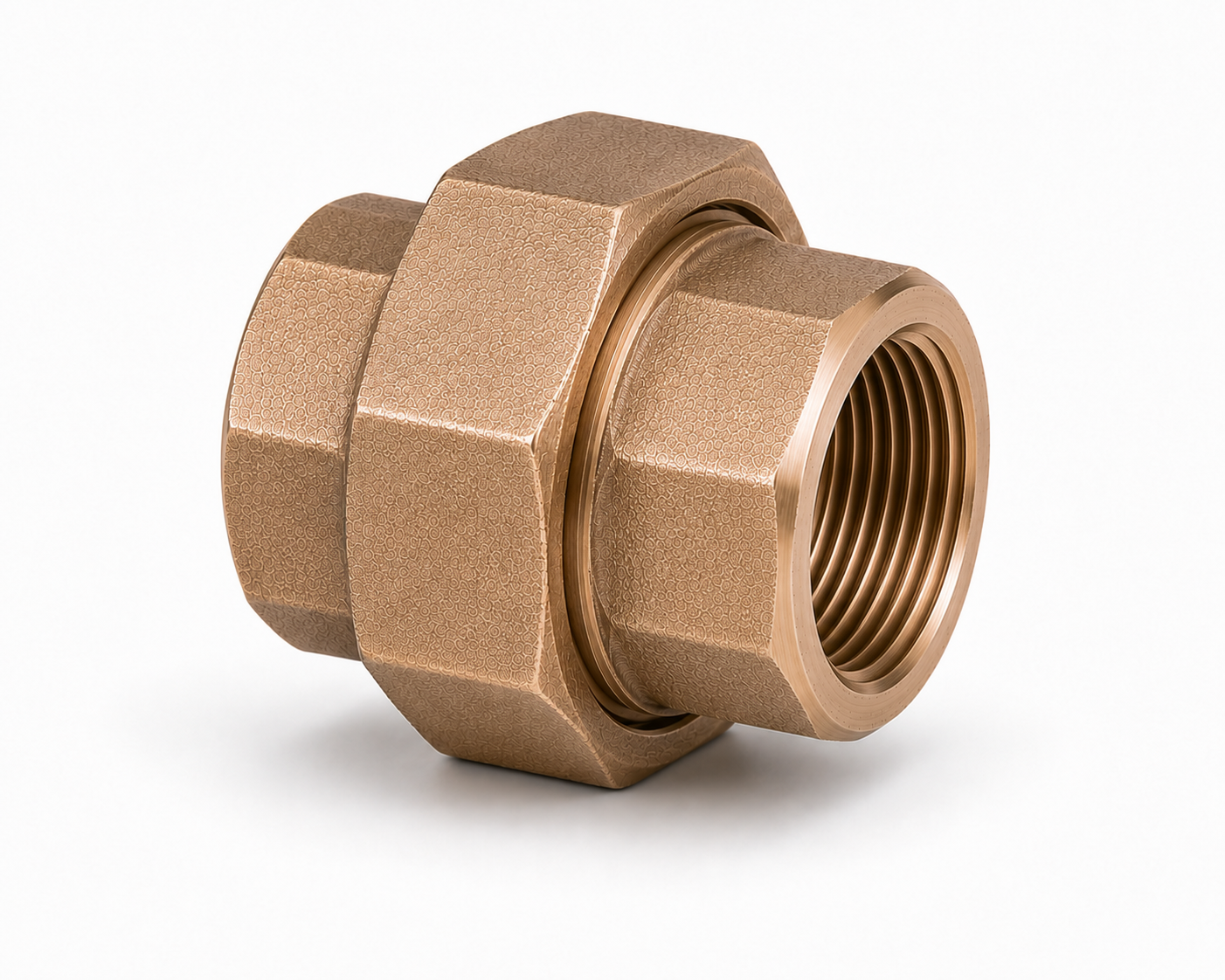

Union

Union

Threaded

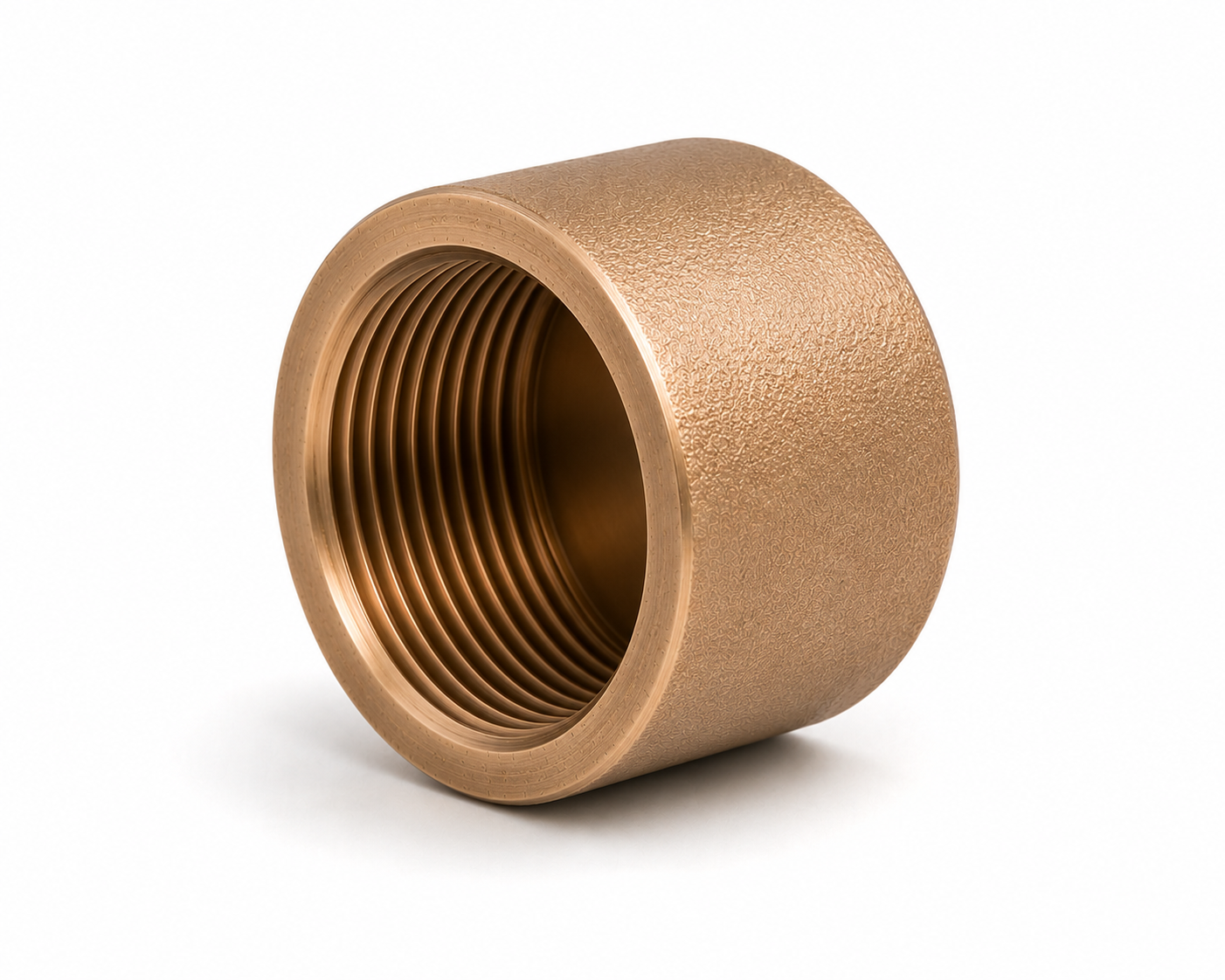

Cap

Cap

Threaded

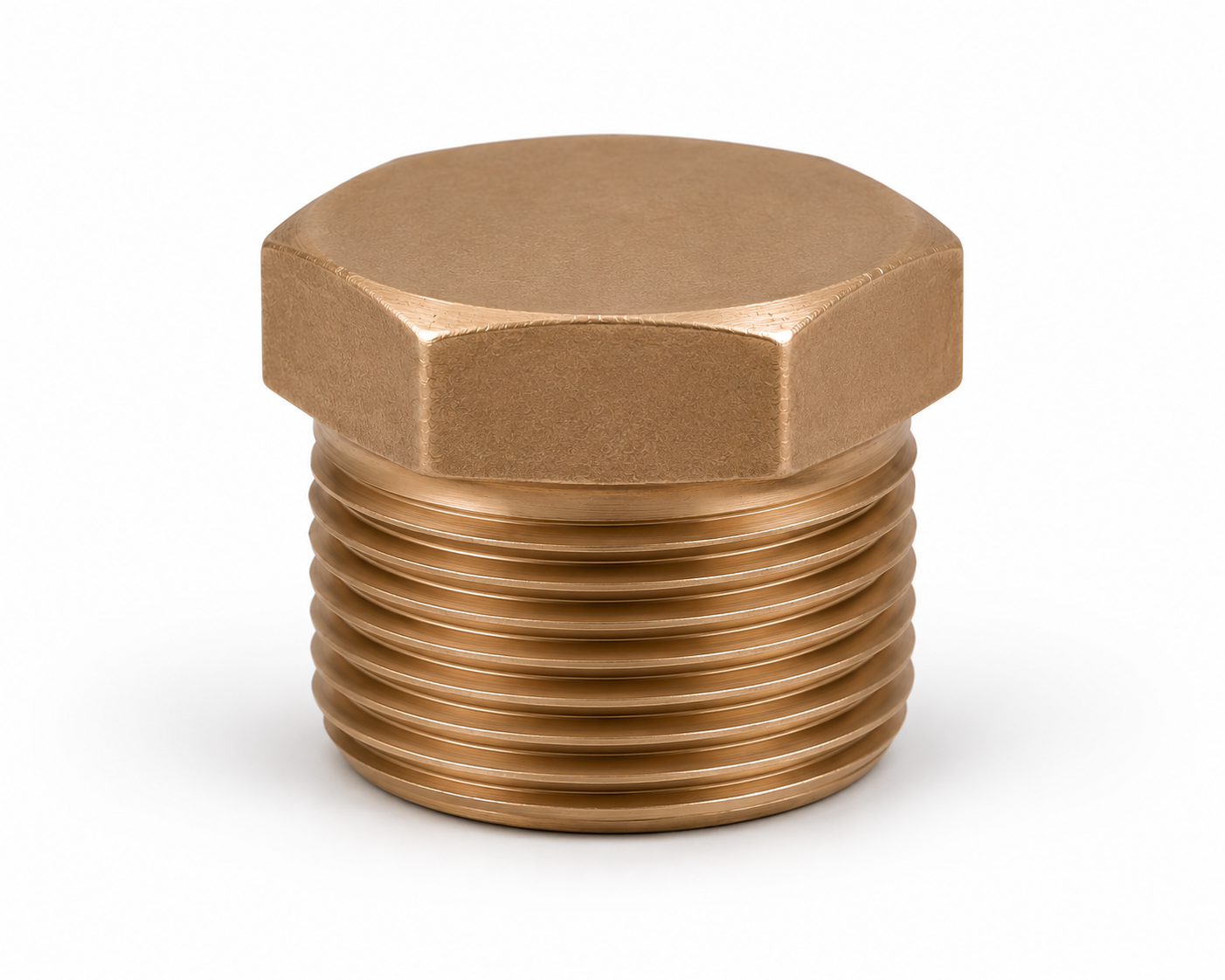

Hex Head Plug

Hex head plug

Threaded

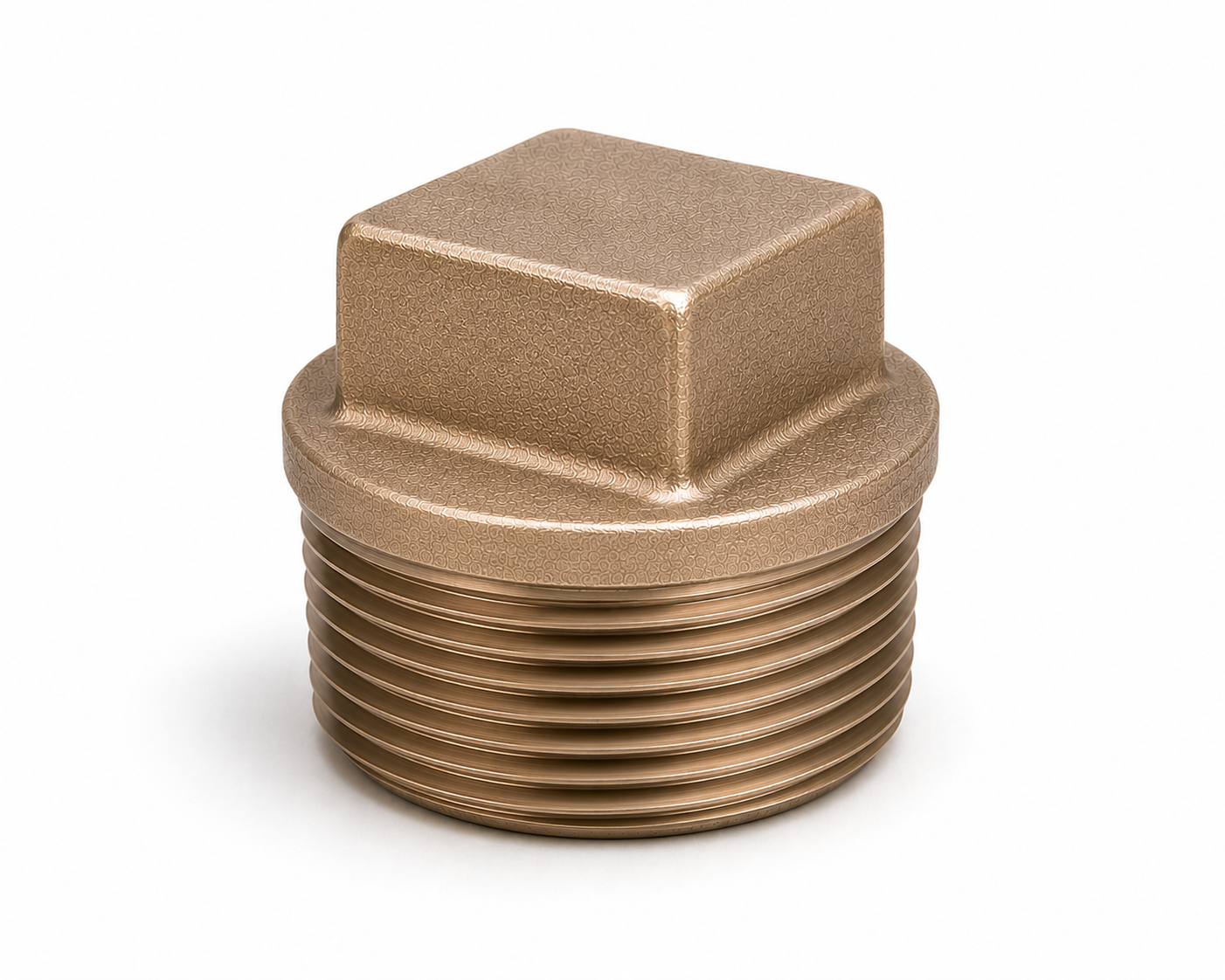

Square Head Plug

Square head plug

Threaded

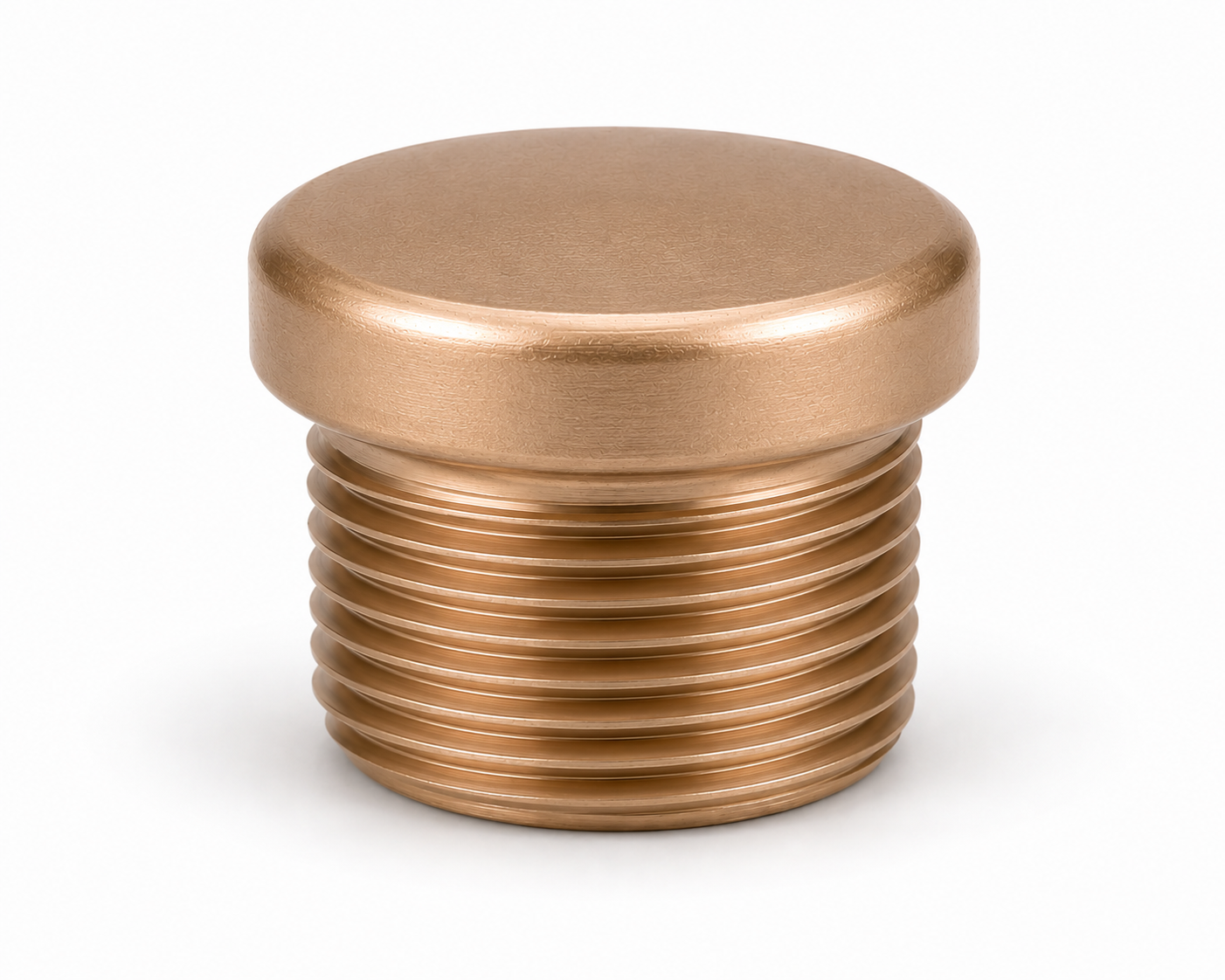

Round Head (Countersunk) Plug

Round/countersunk head plug

Threaded

Hex Bushing

Threaded reducing bushing

Threaded

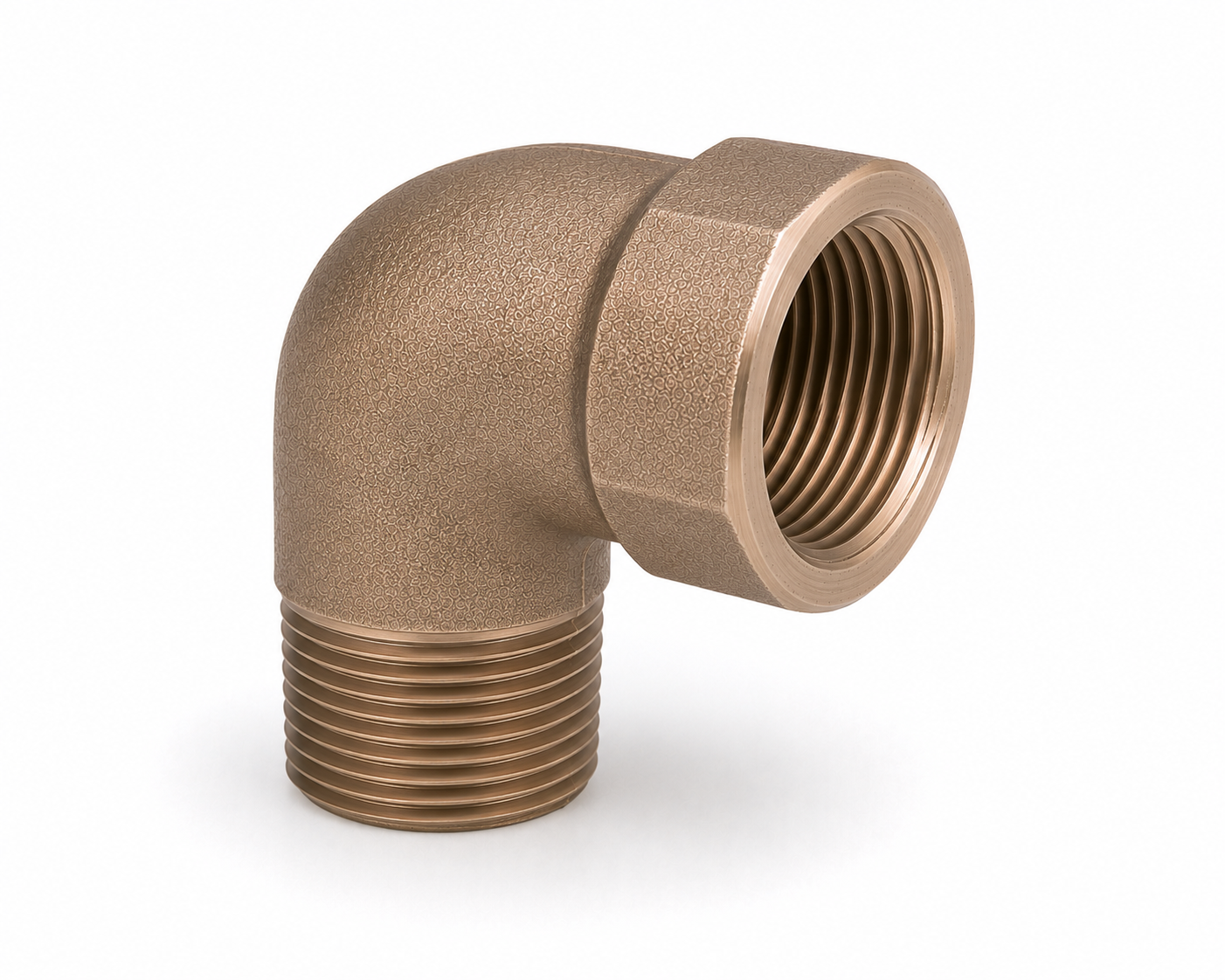

Street Elbow

Male x female 90° elbow

Threaded

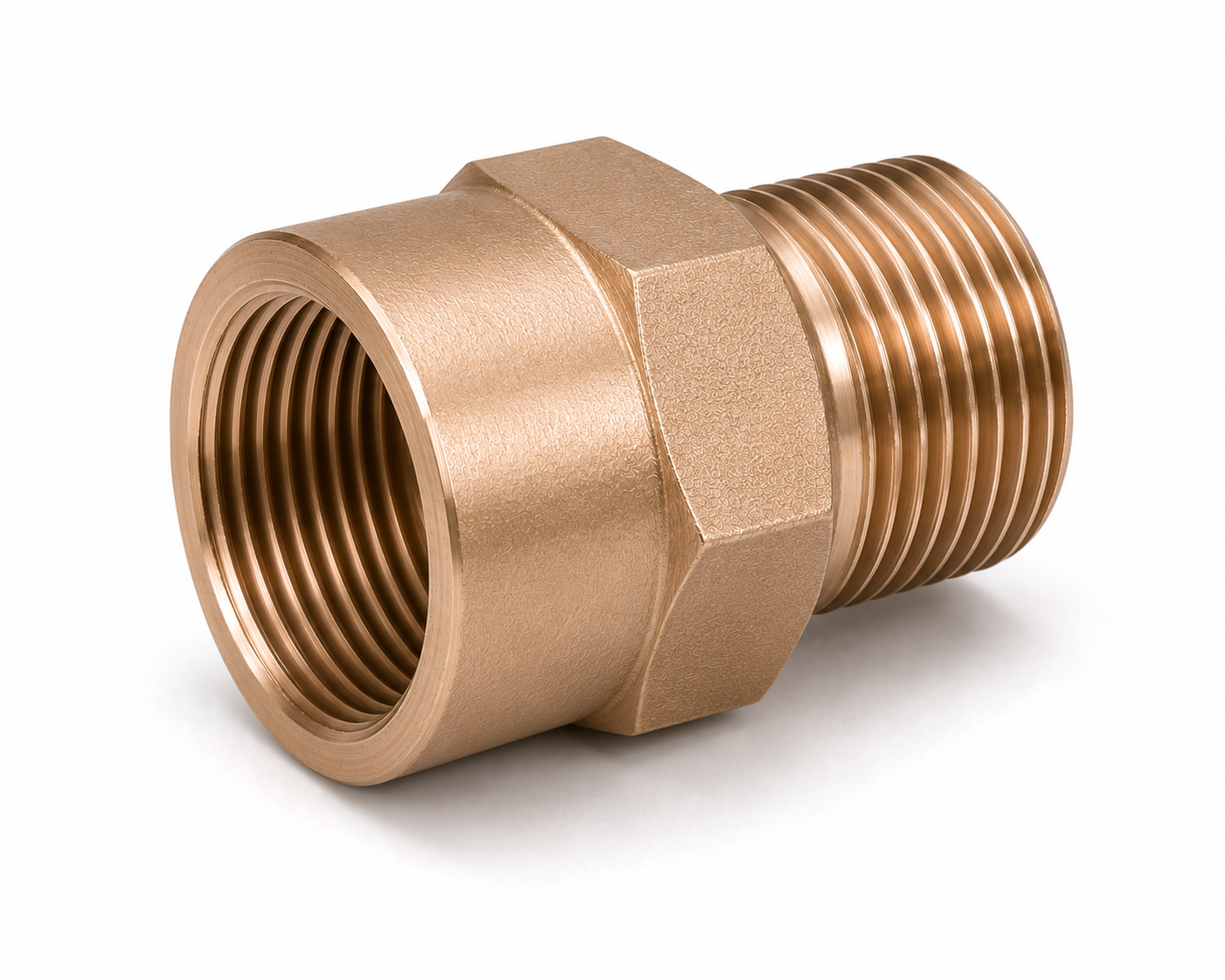

Male Adapter

Female to male thread adapter

Threaded

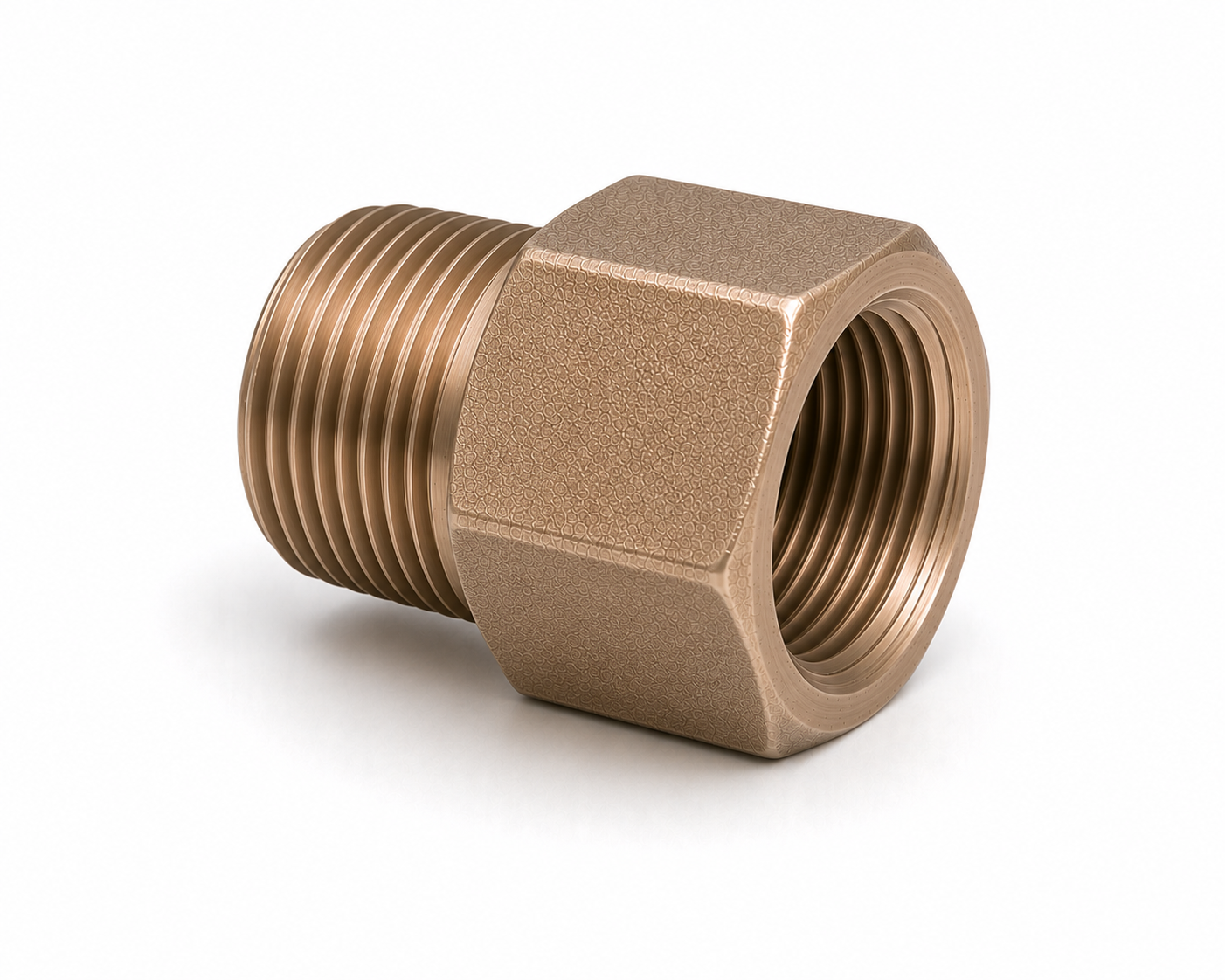

Female Adapter

Male to female thread adapter

Threaded

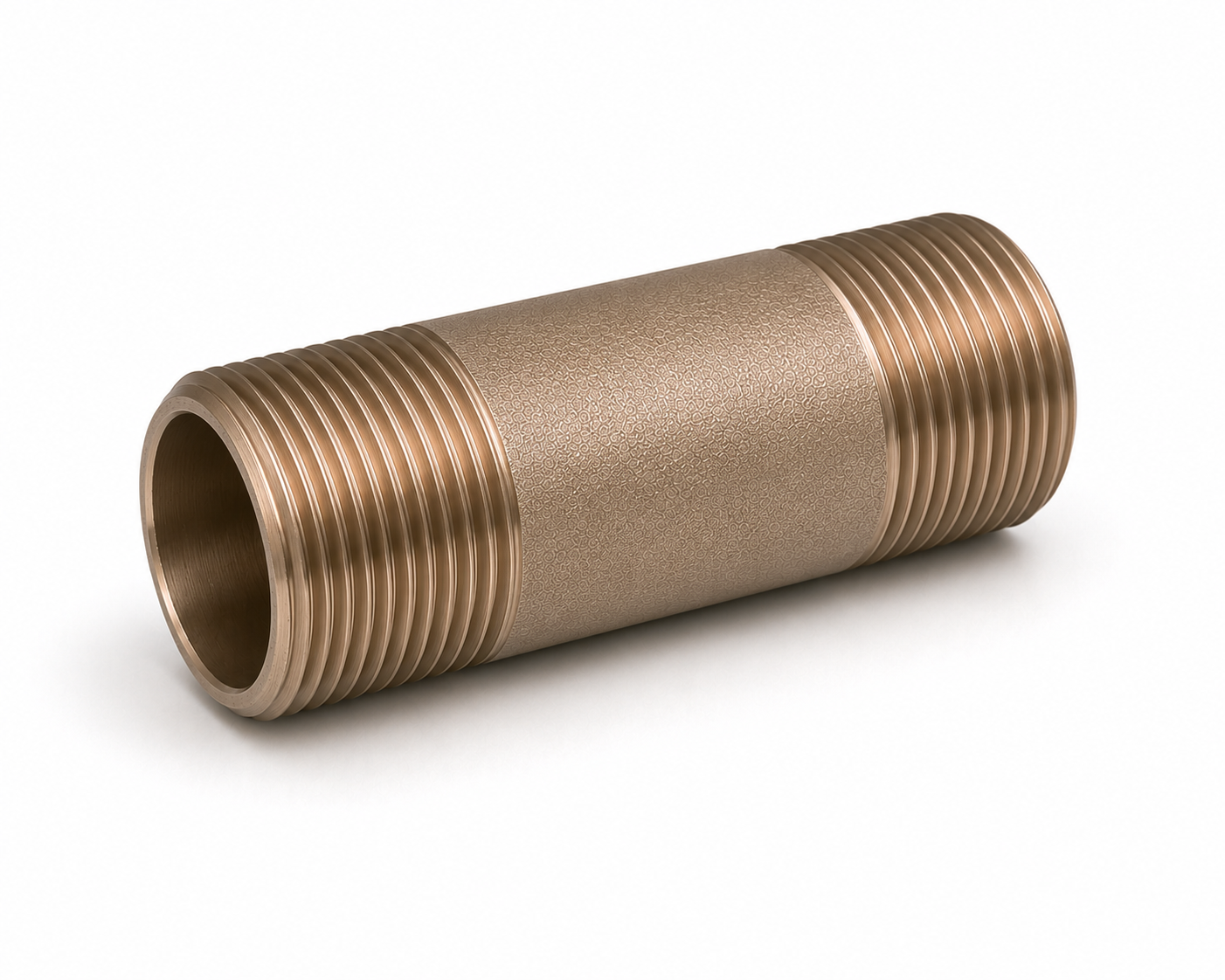

Pipe Nipple

Threaded both ends, standard length

Threaded

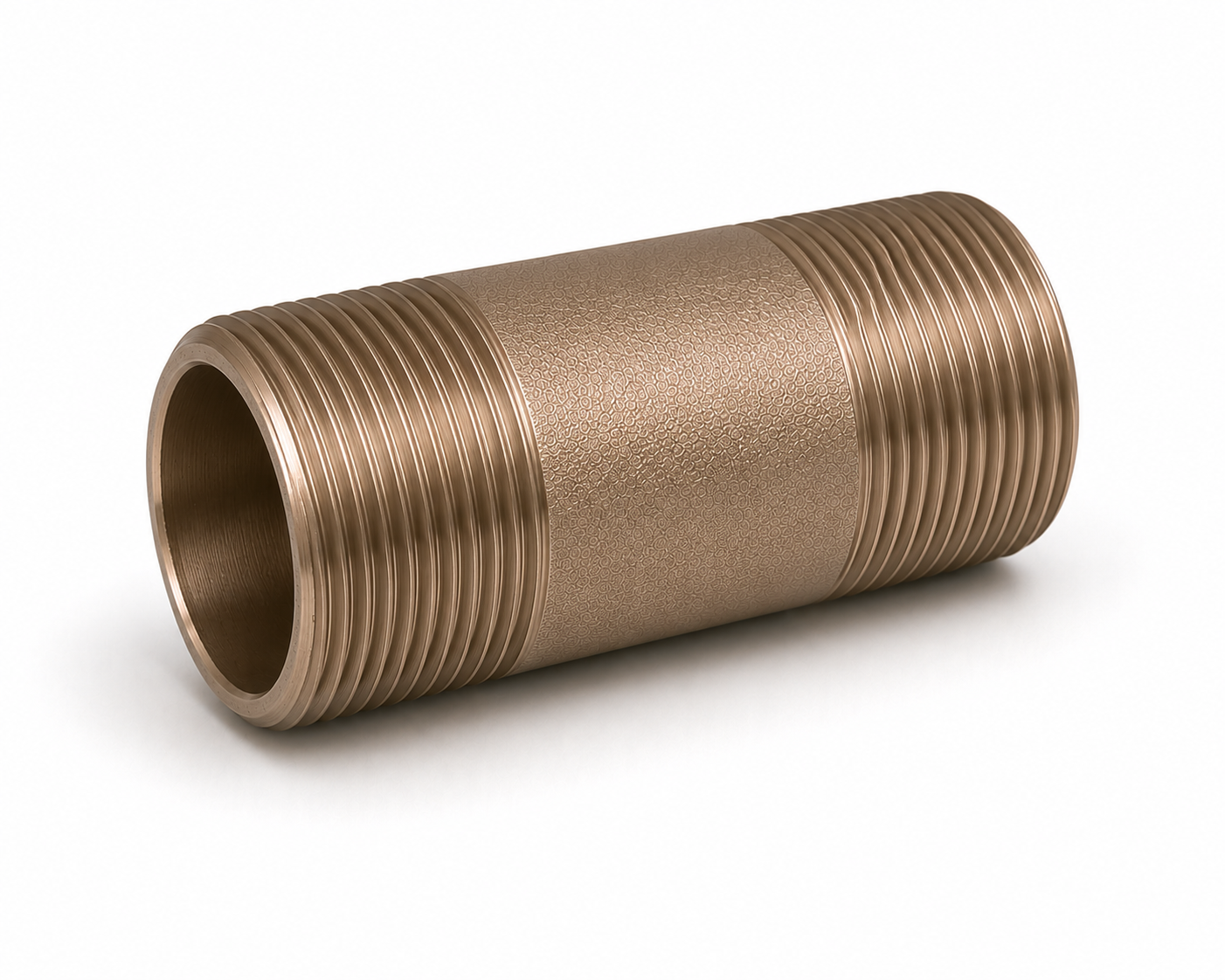

Barrel Nipple

Threaded both ends, no visible shoulder

Threaded

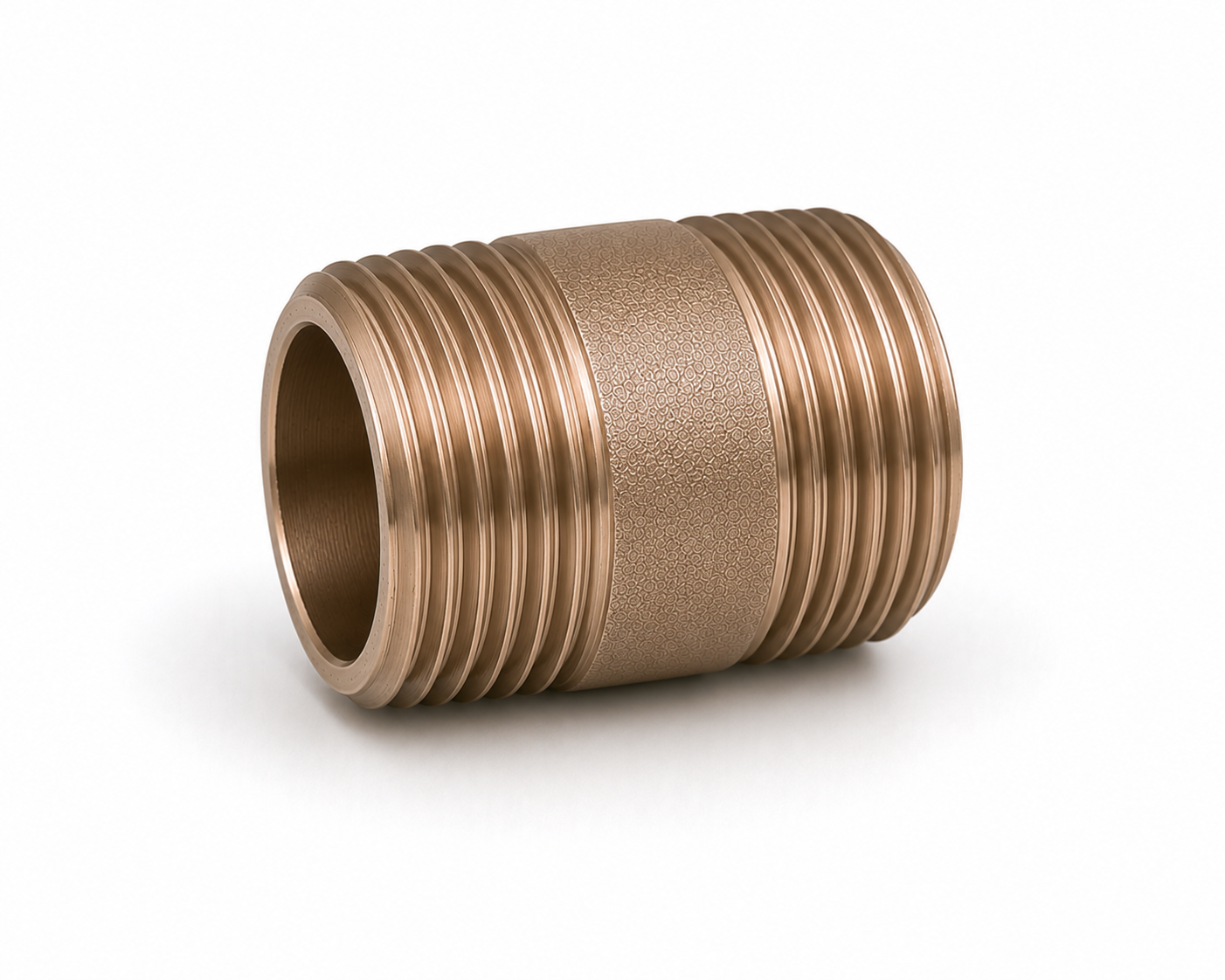

Close Nipple

Minimal-length threaded nipple

Threaded

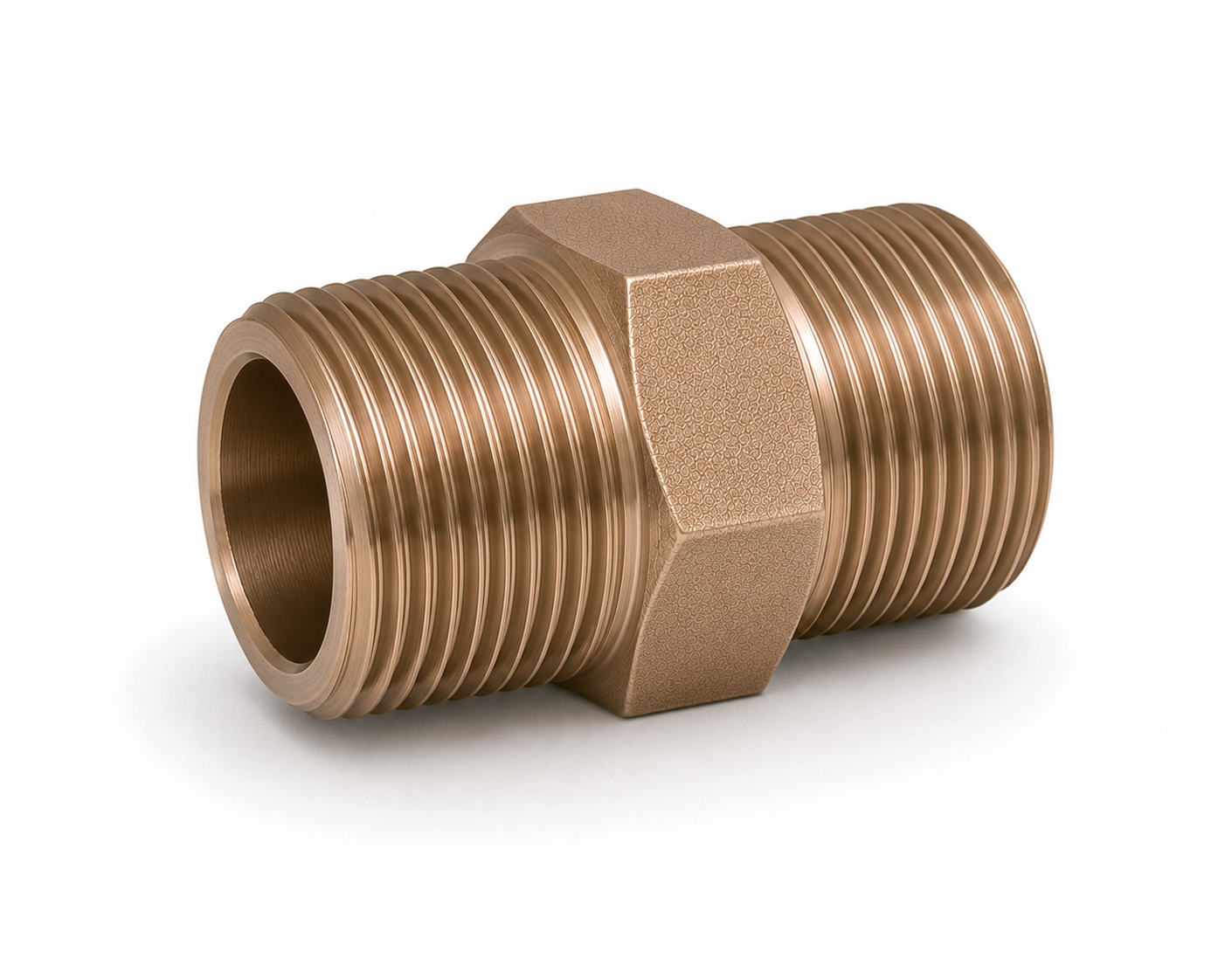

Hex Nipple

Hex-body threaded nipple

Threaded

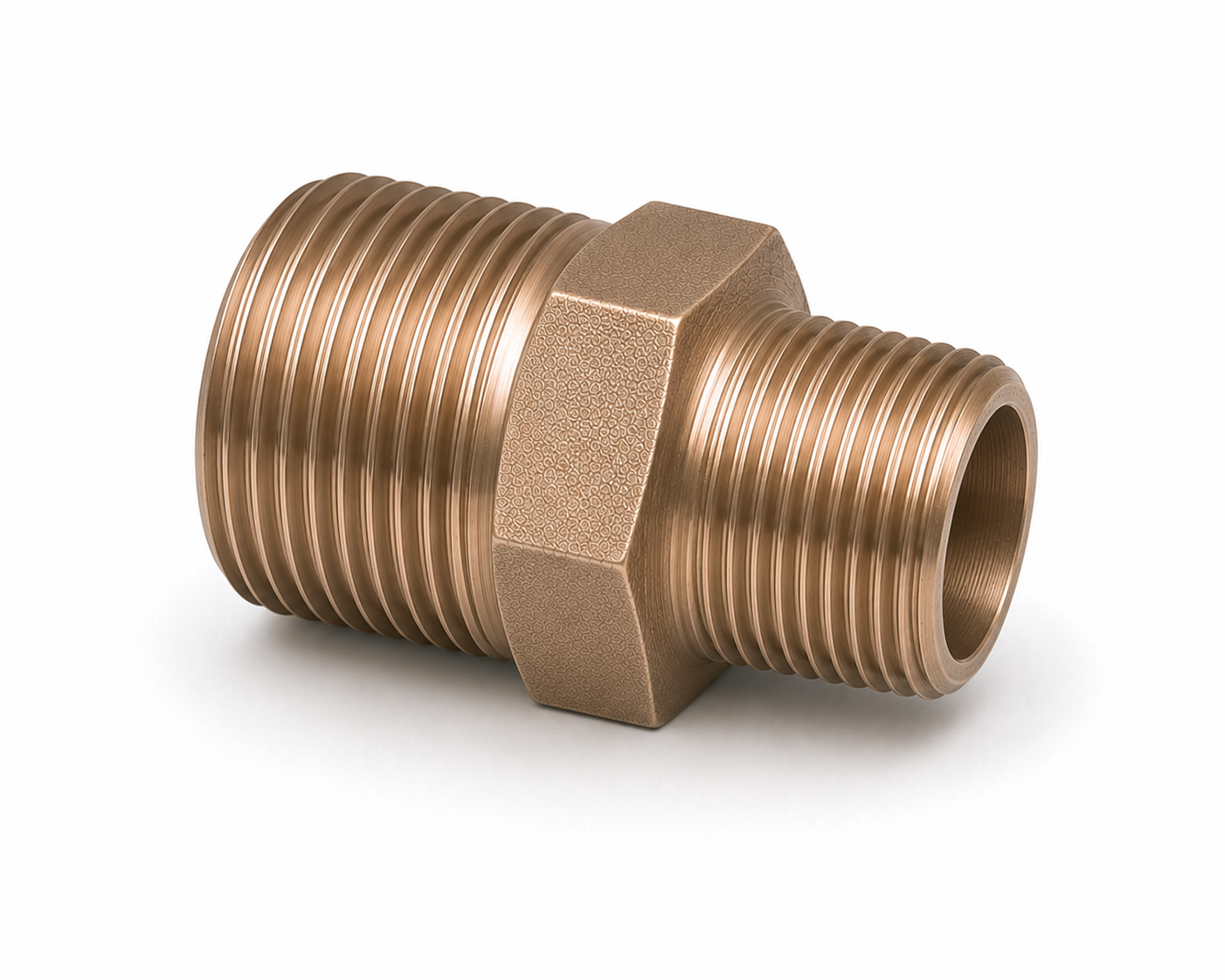

Reducing Nipple

Two different thread sizes

Threaded

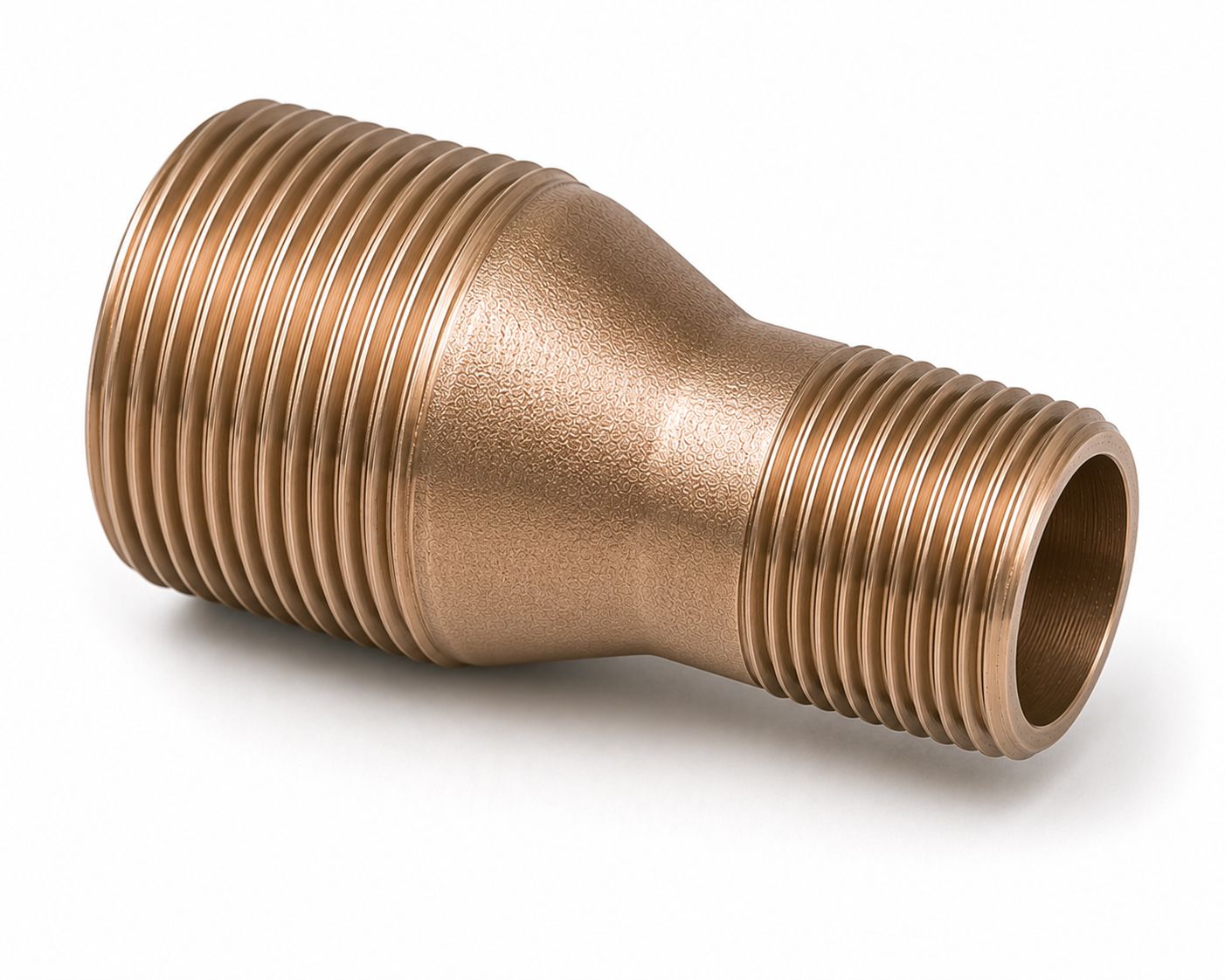

Swage Nipple

Concentric/eccentric swaged reducer

Branch Outlet

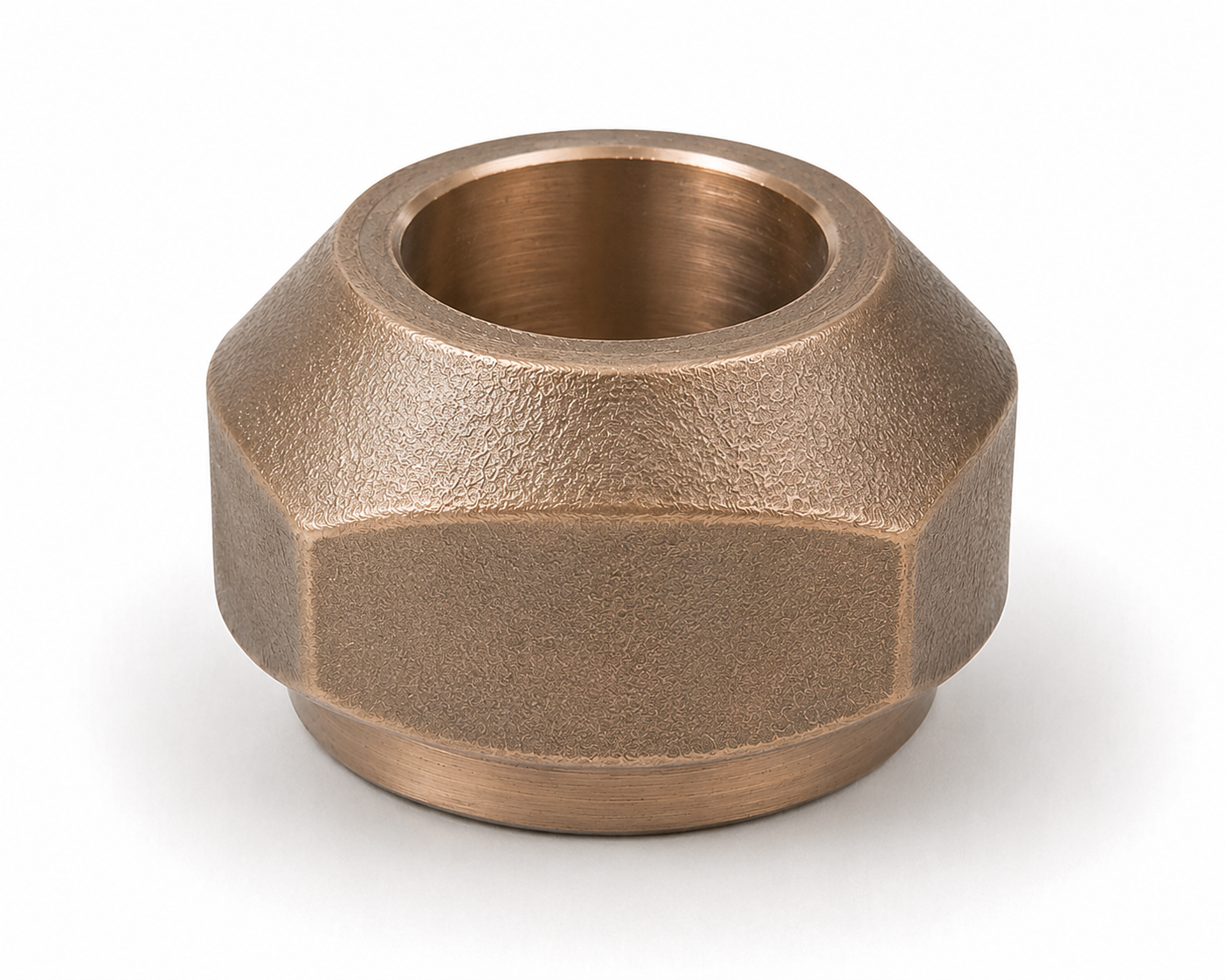

Sockolet

Socket-welding branch outlet

Branch Outlet

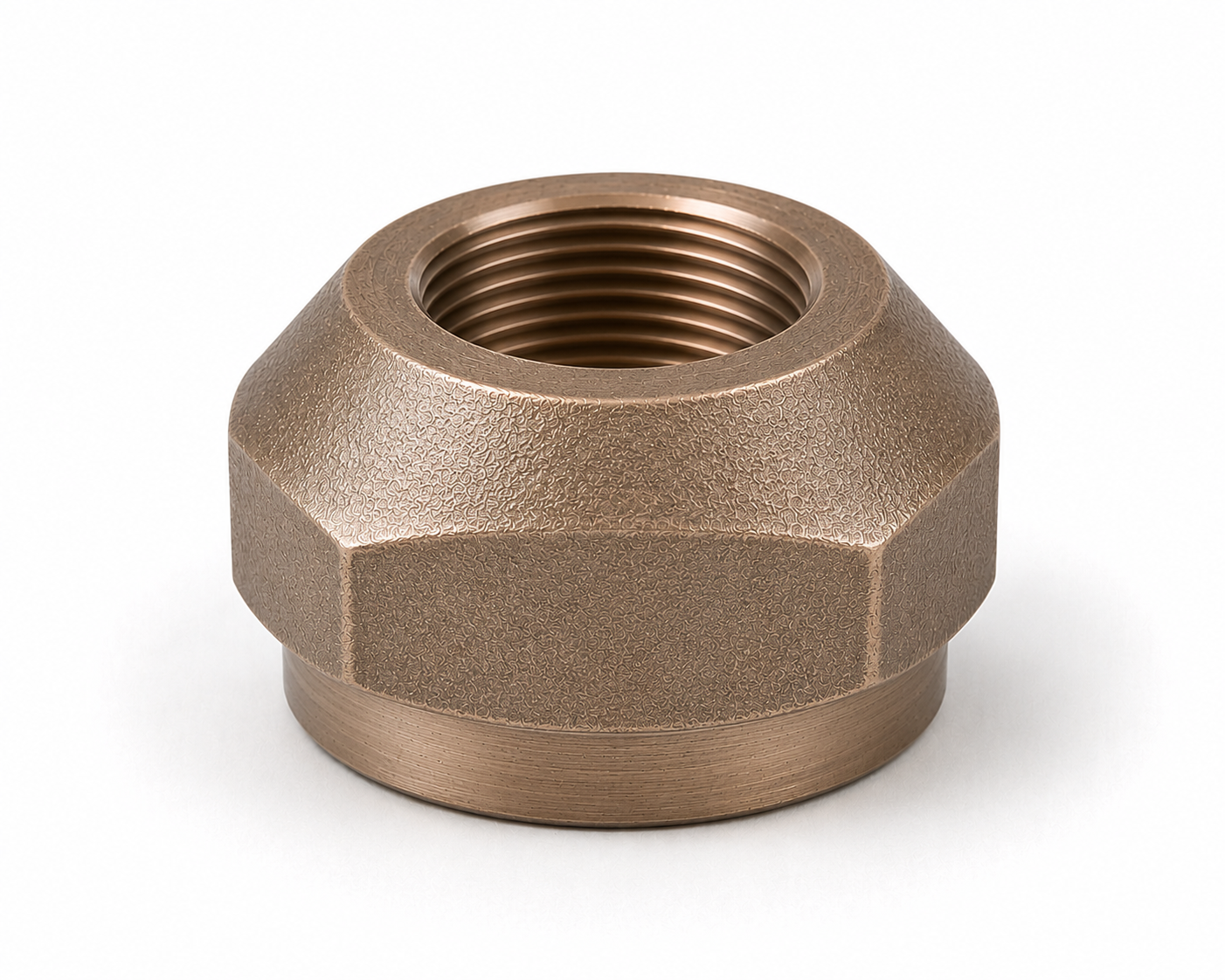

Threadolet

Threaded branch outlet

Branch Outlet

Weldolet

Butt-welding branch outlet

Branch Outlet

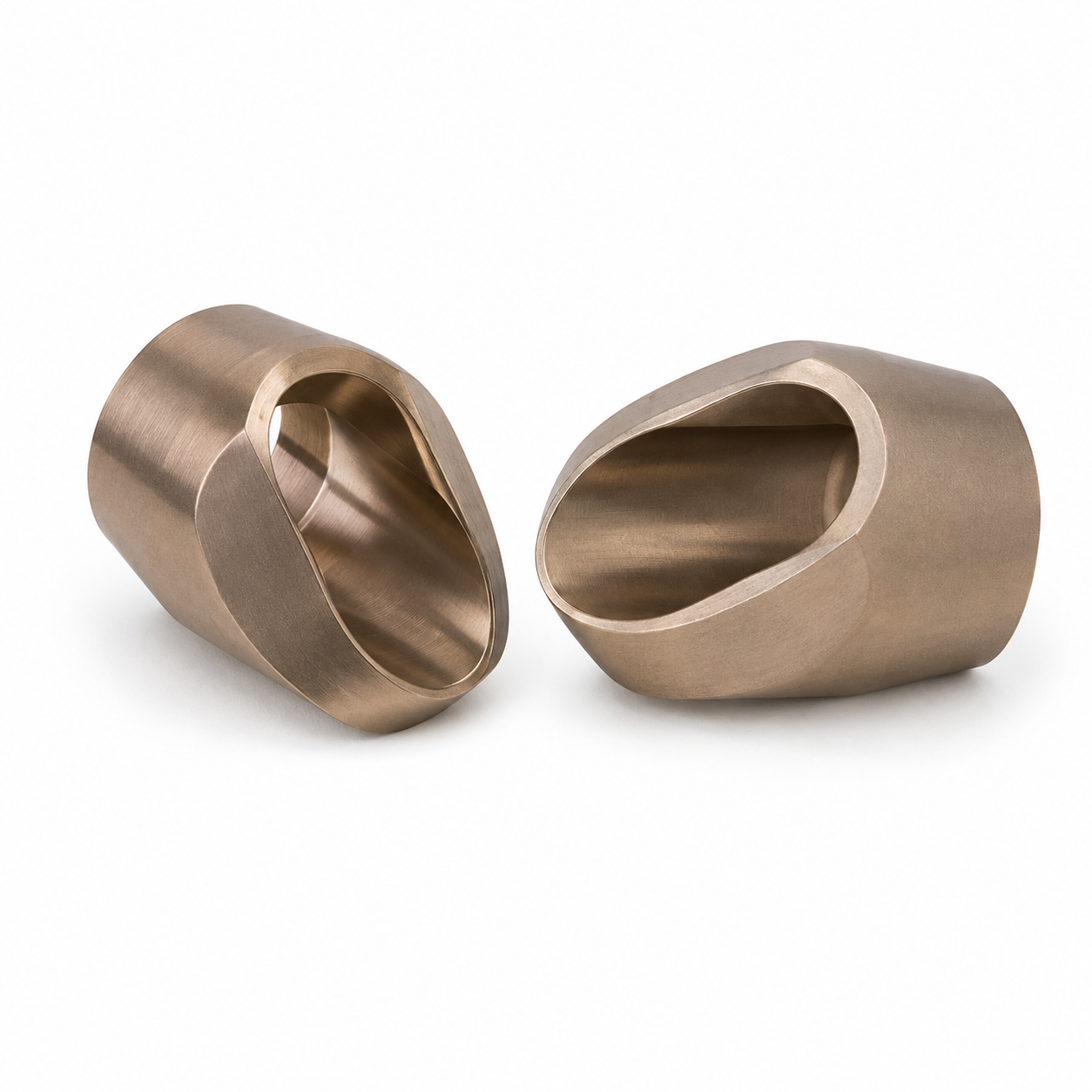

Elbolet

Branch outlet for elbow fittings

Branch Outlet

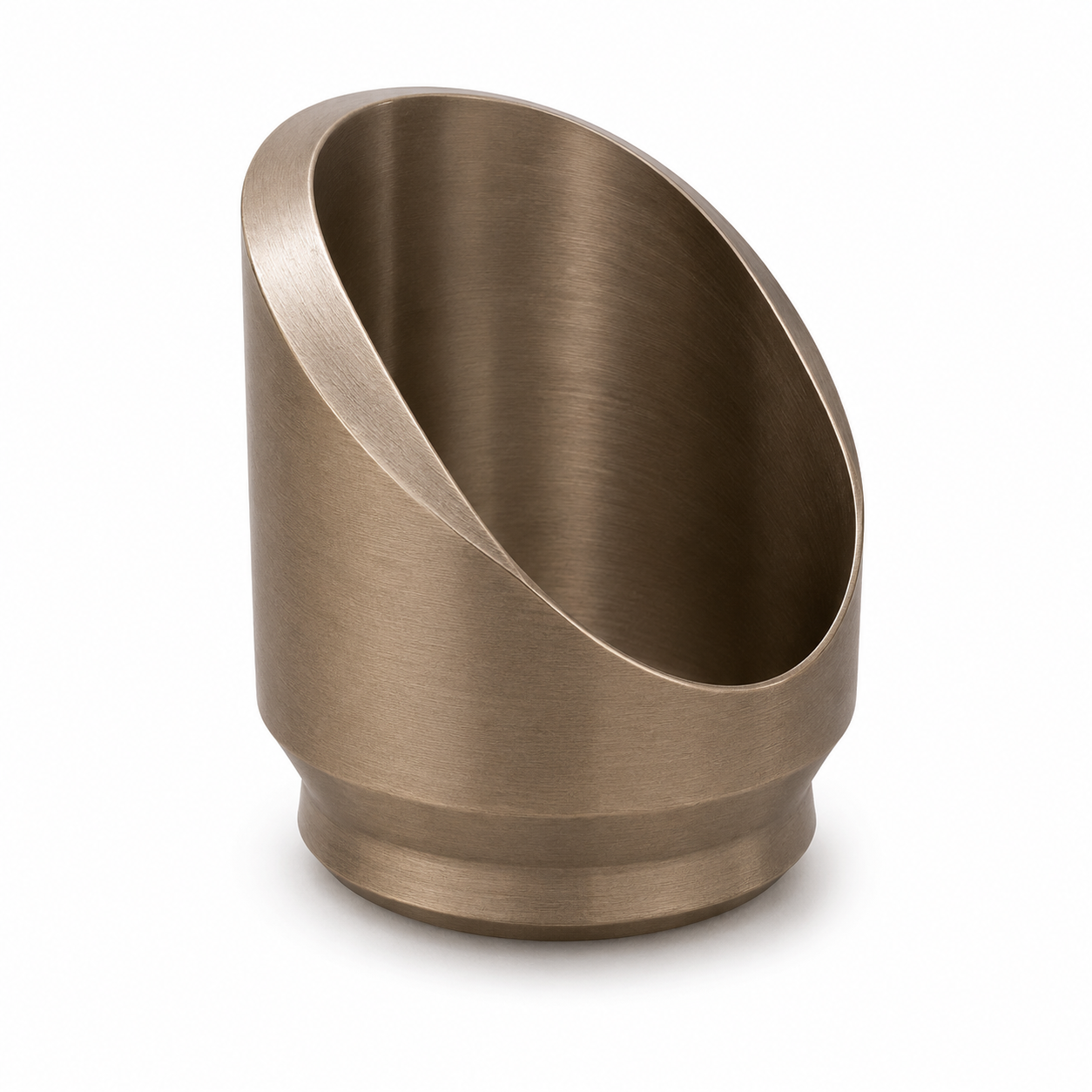

Latrolet

Angled (lateral) branch outlet

Branch Outlet

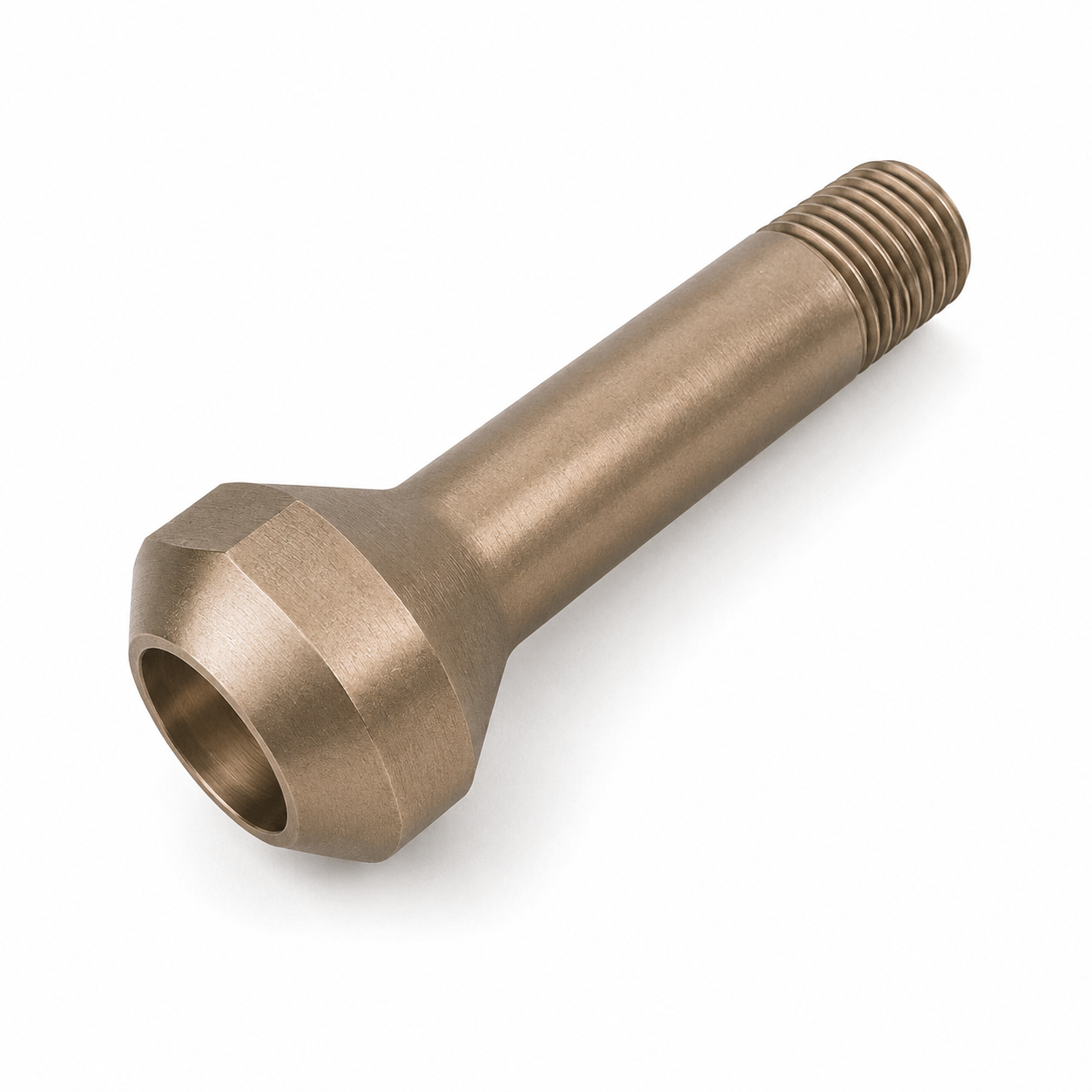

Nipolet

Integrally reinforced nipple outlet

Branch Outlet

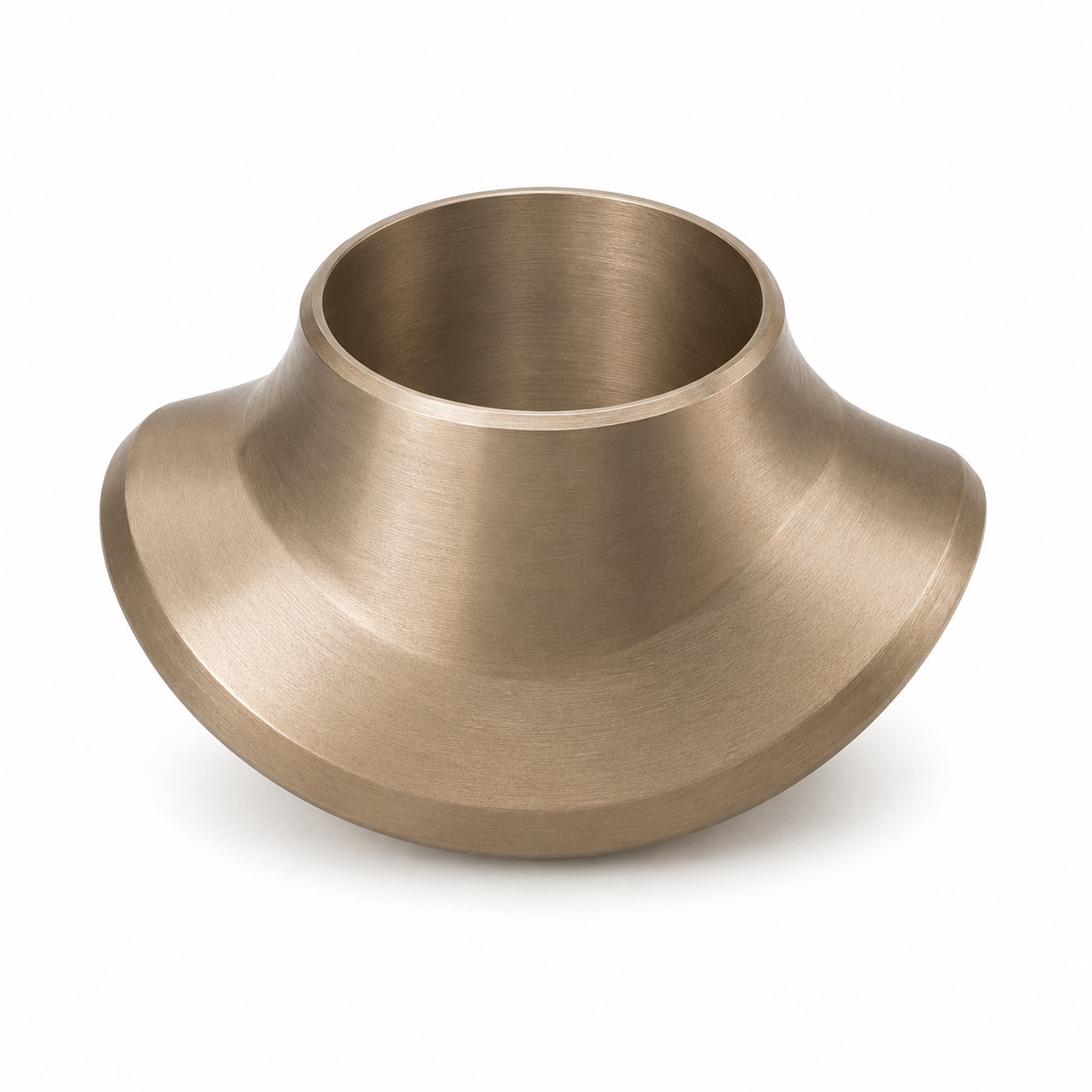

Sweepolet

Full-encirclement swept branch outlet

Branch Outlet

Brazolet

Braze/solder branch outlet

Branch Outlet

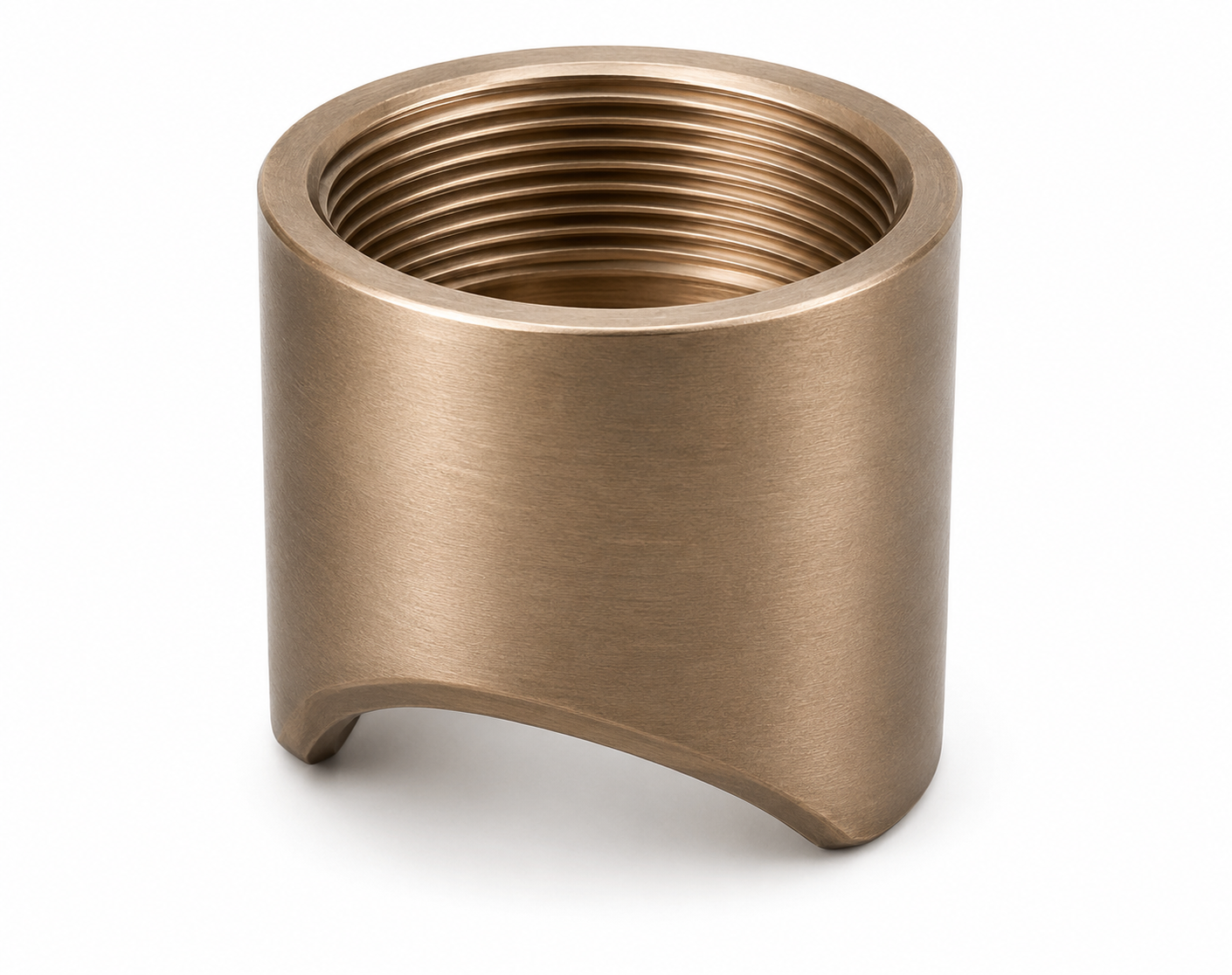

Coupolet

Coupling-style branch outlet

Branch Outlet

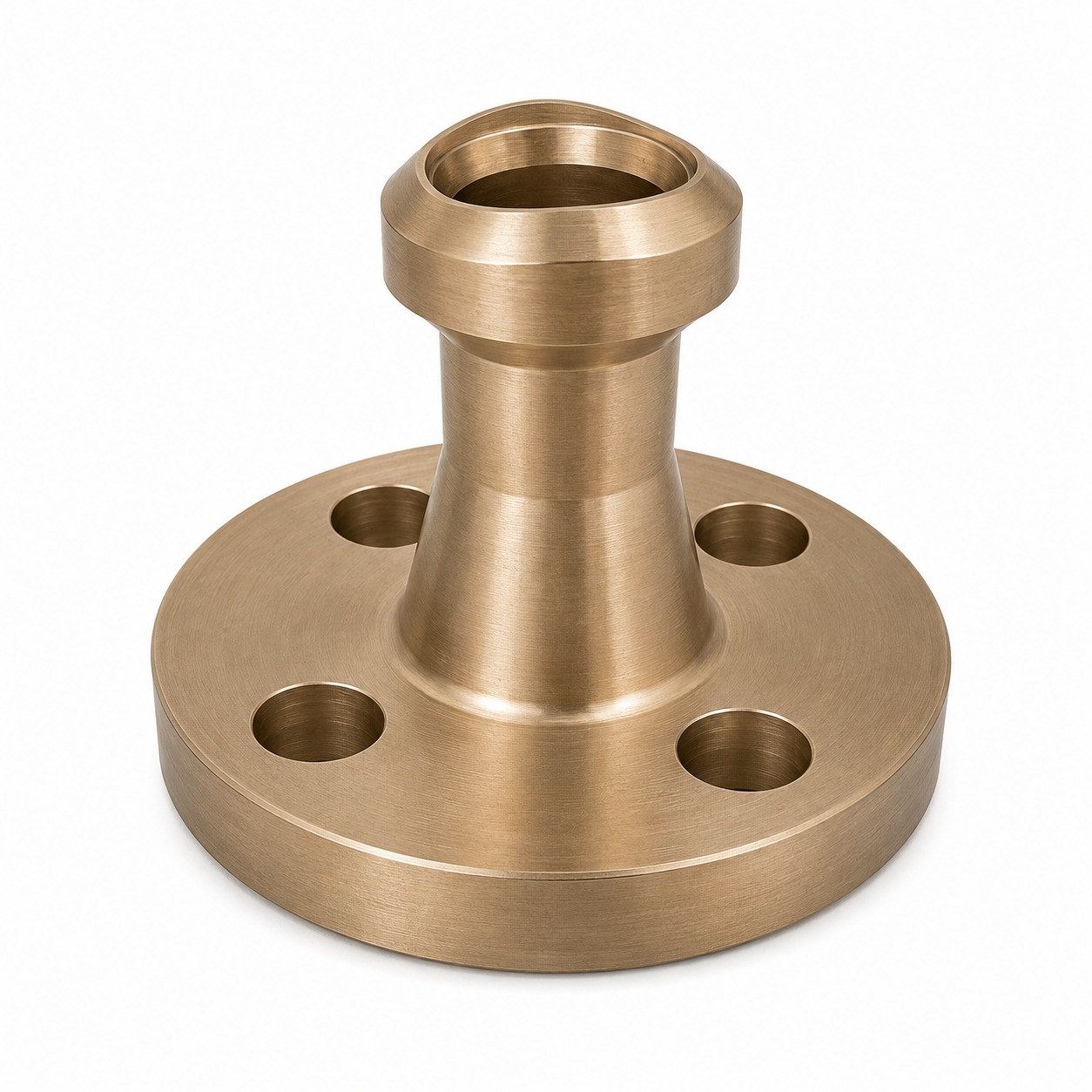

Flangolet

Flanged branch outlet

Specialty

Equal Tee

Equal three-way branch, specialty configuration

Specialty

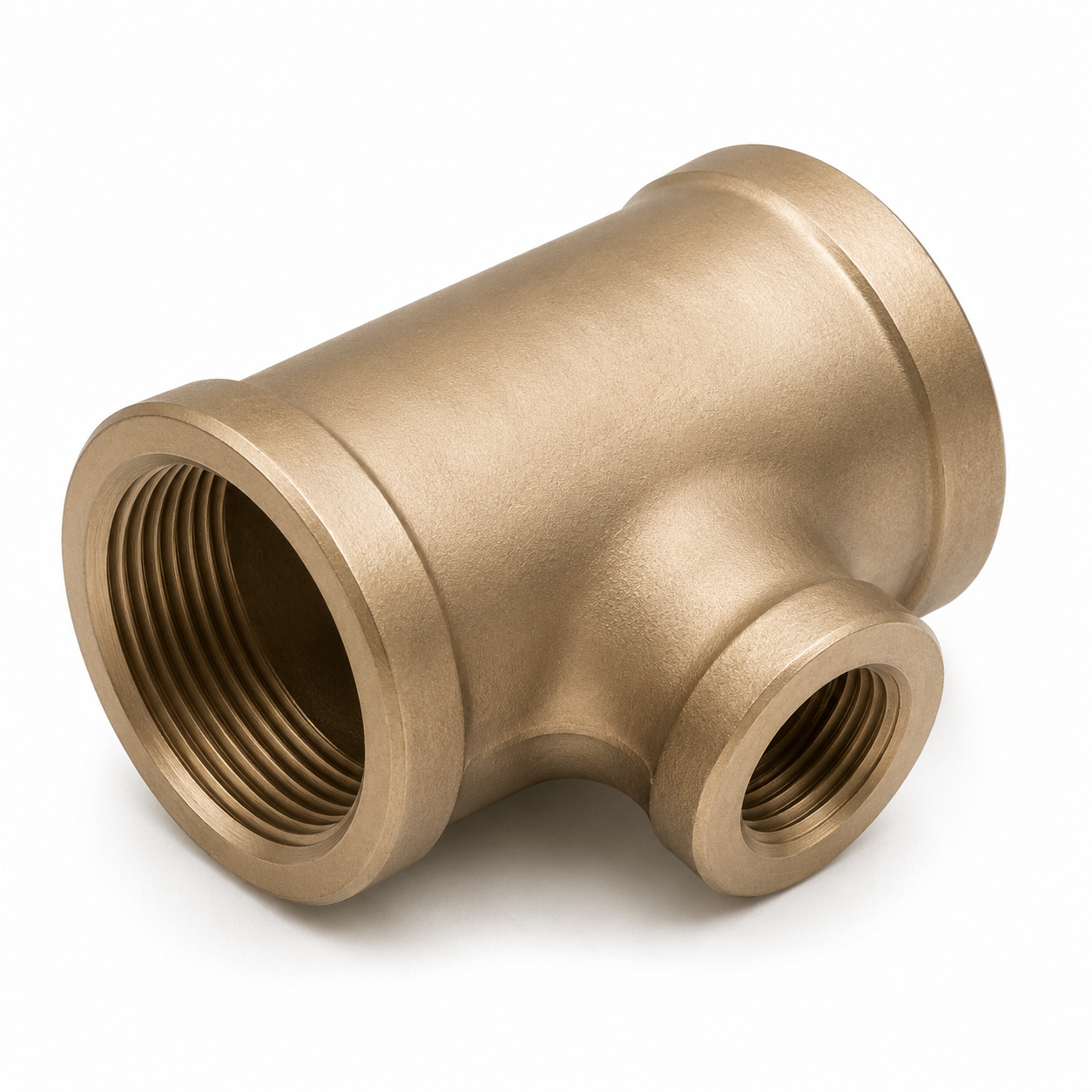

Reducing Tee

Branch tee with reduced outlet

Specialty

Equal Cross

Four-way equal branch, specialty configuration

Specialty

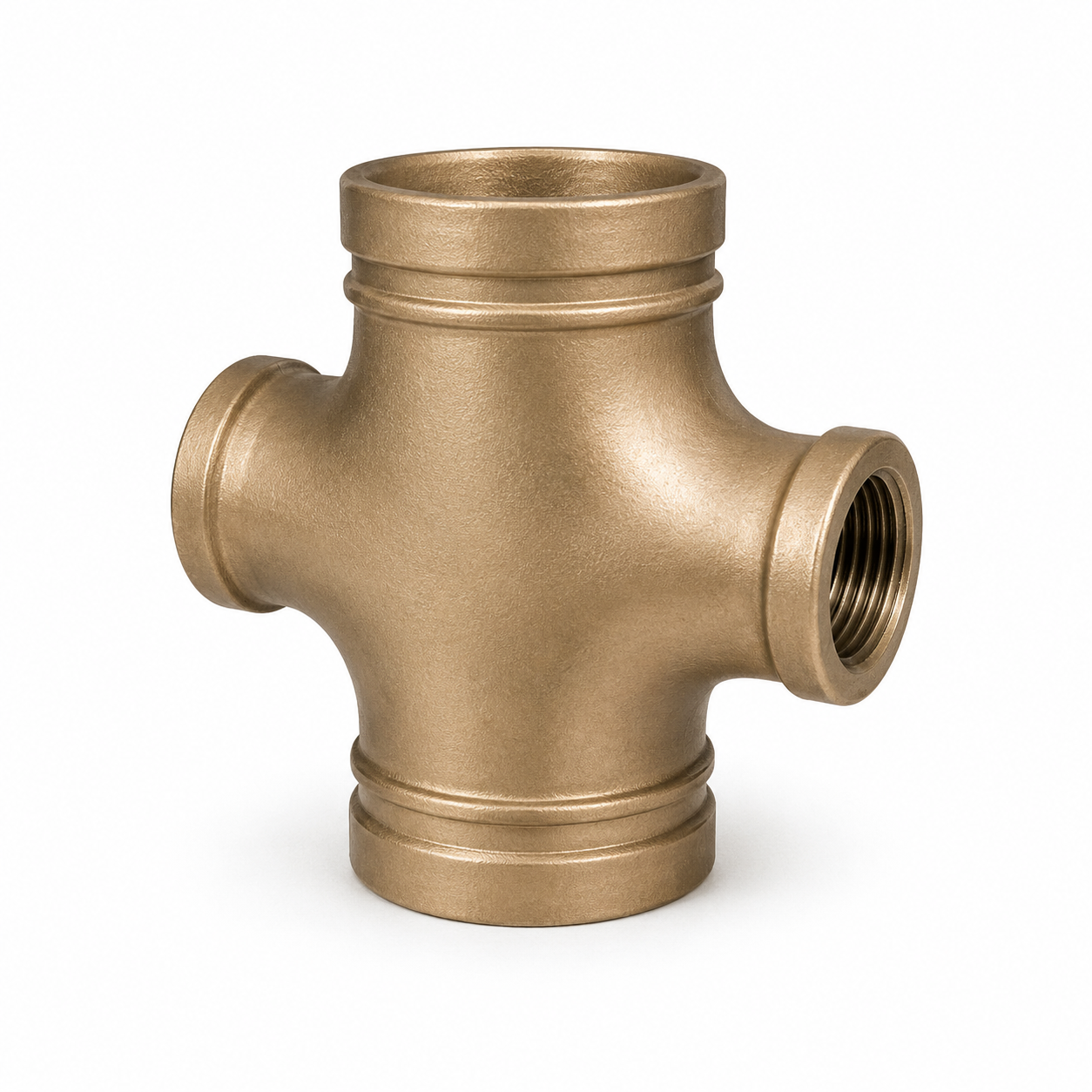

Reducing Cross

Four-way cross with reduced outlets

Specialty

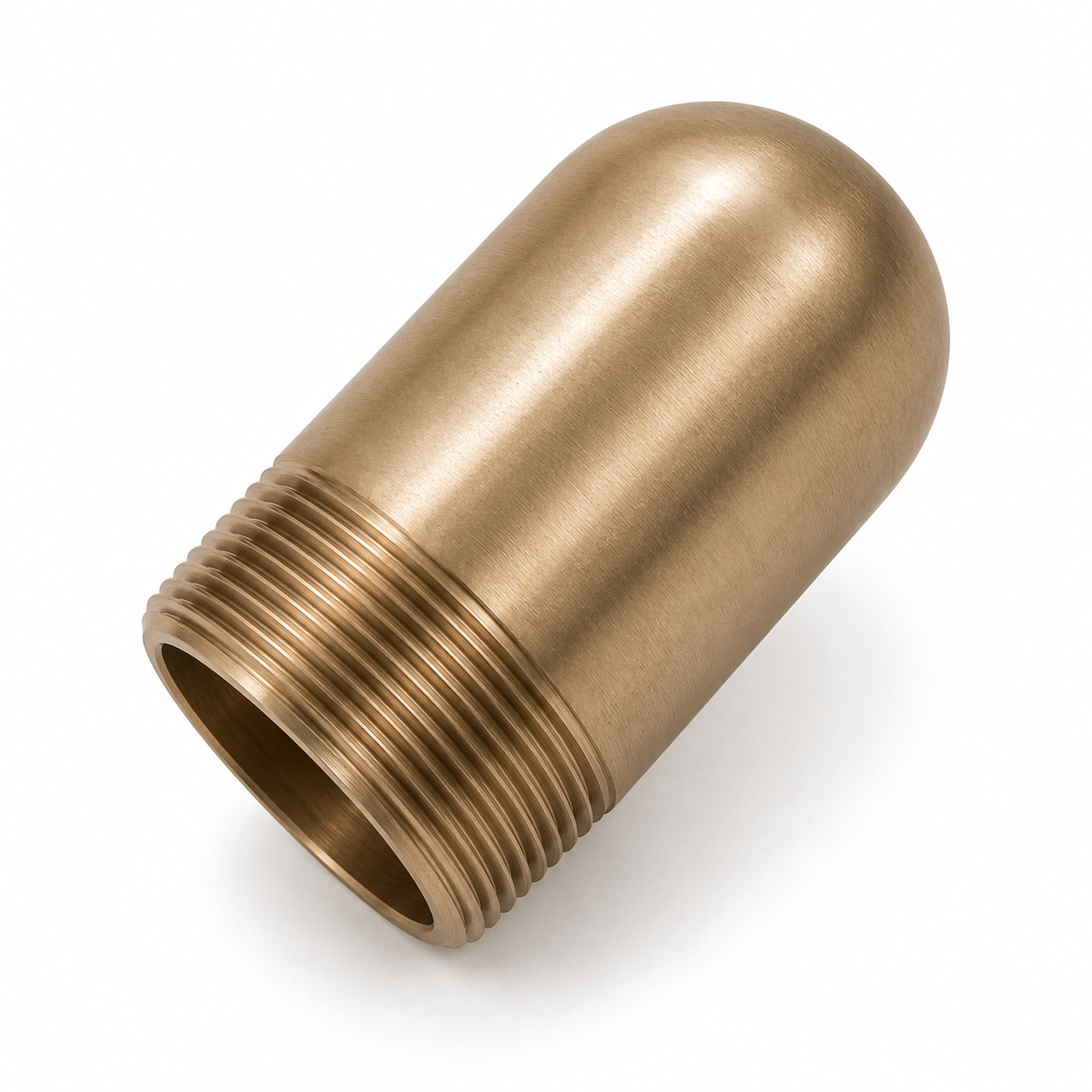

Bull Plug

Heavy forged solid plug

Specialty

Hex Plug

Specialty hex head plug

Specialty

Square Plug

Specialty square head plug

Specialty

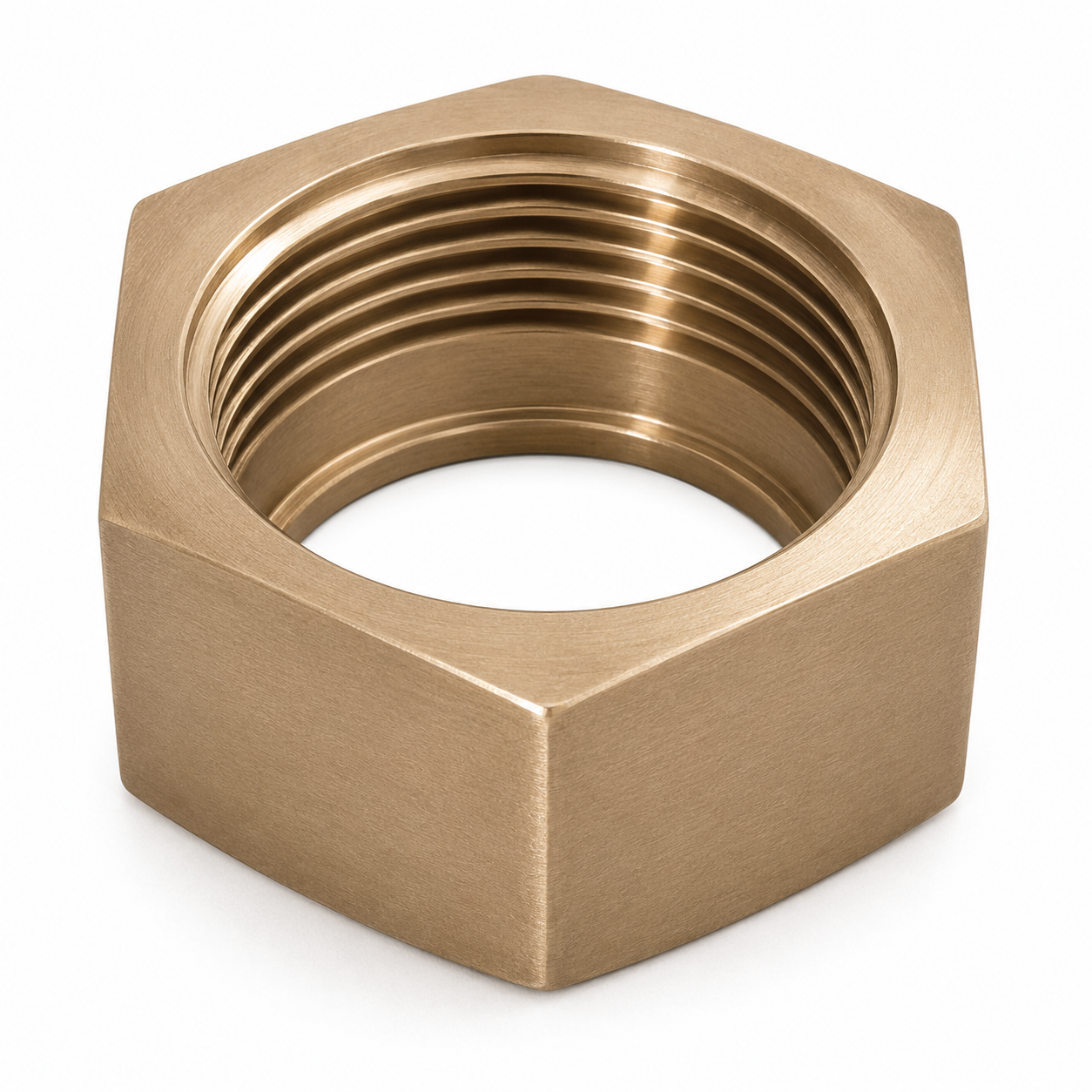

Union Nut

Replacement union nut component

Specialty

Reducing Insert

Custom reducing insert

Specialty

Instrument Tee

Branch tee for instrument tie-in

Specialty

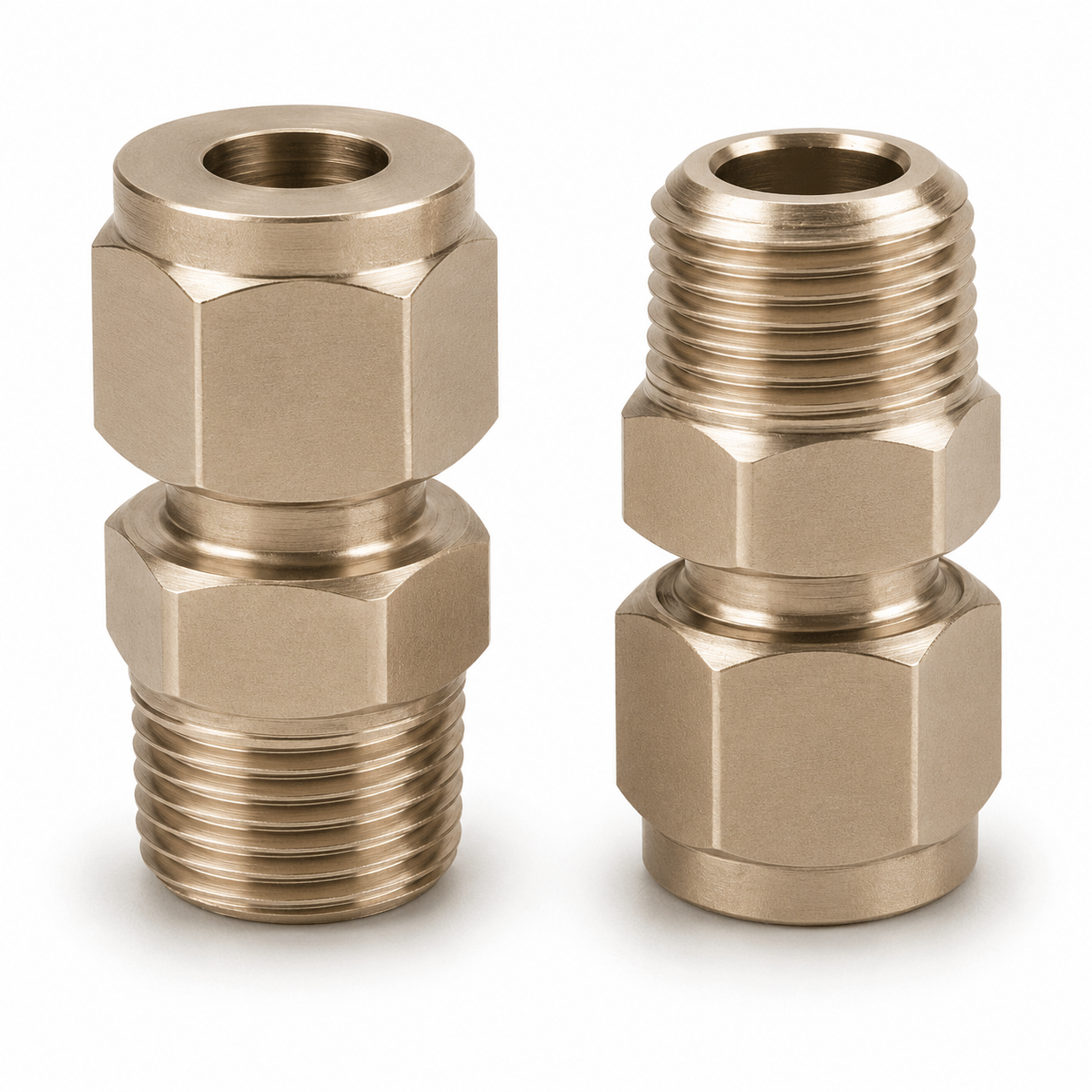

Instrument Connector

Instrument tie-in connector

Specialty

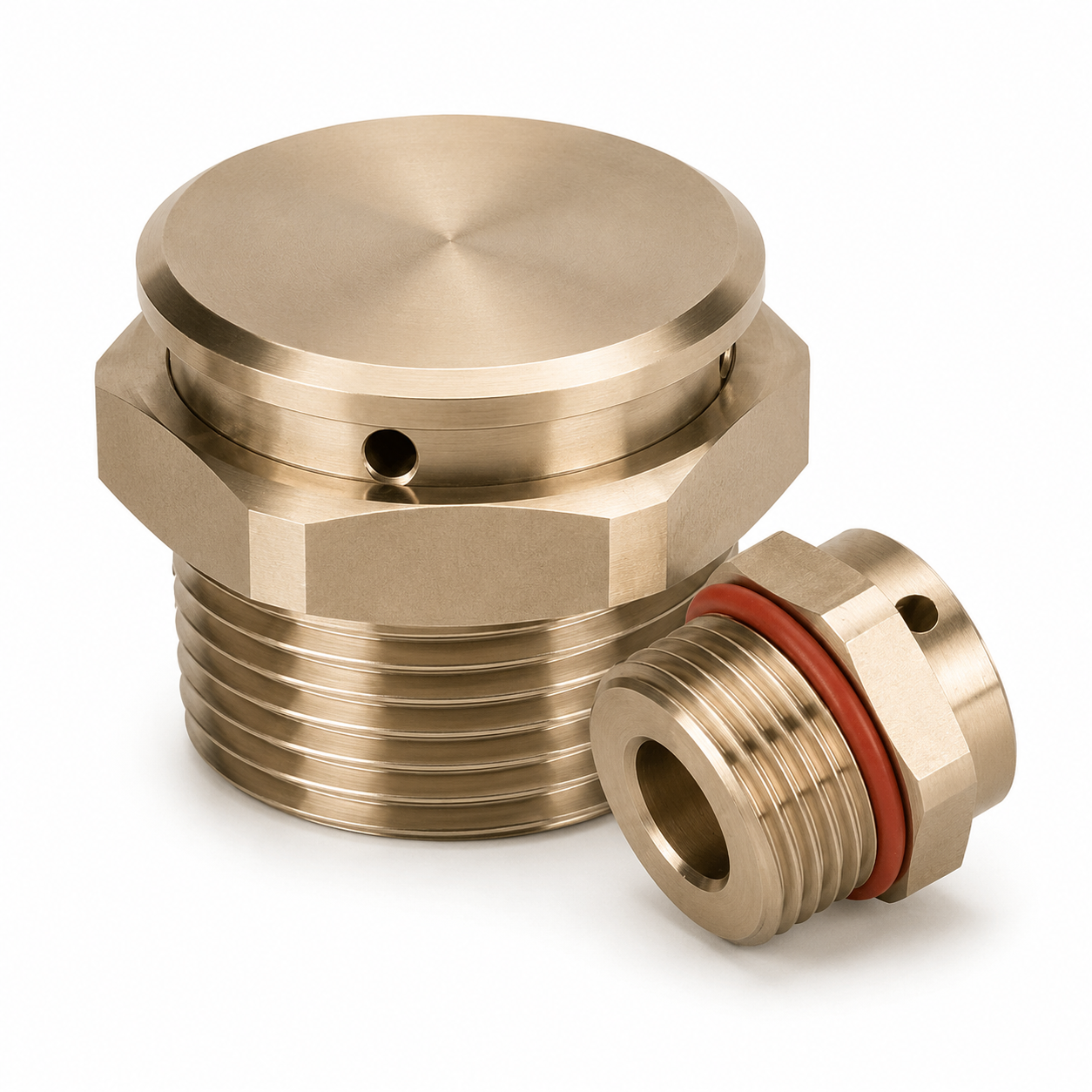

Vent Plug

Drilled plug for venting

Specialty

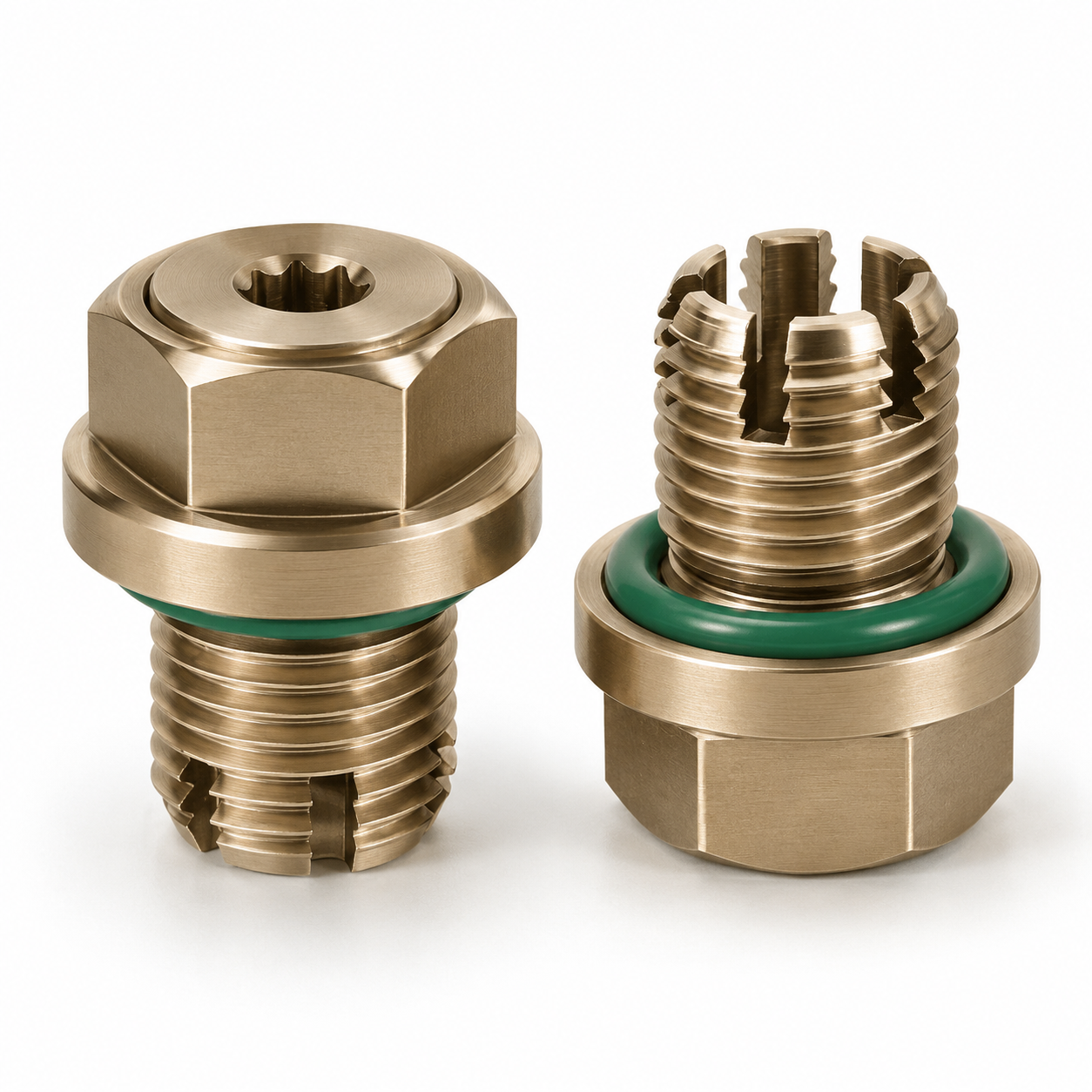

Drain Plug

Drilled plug for draining

Specialty

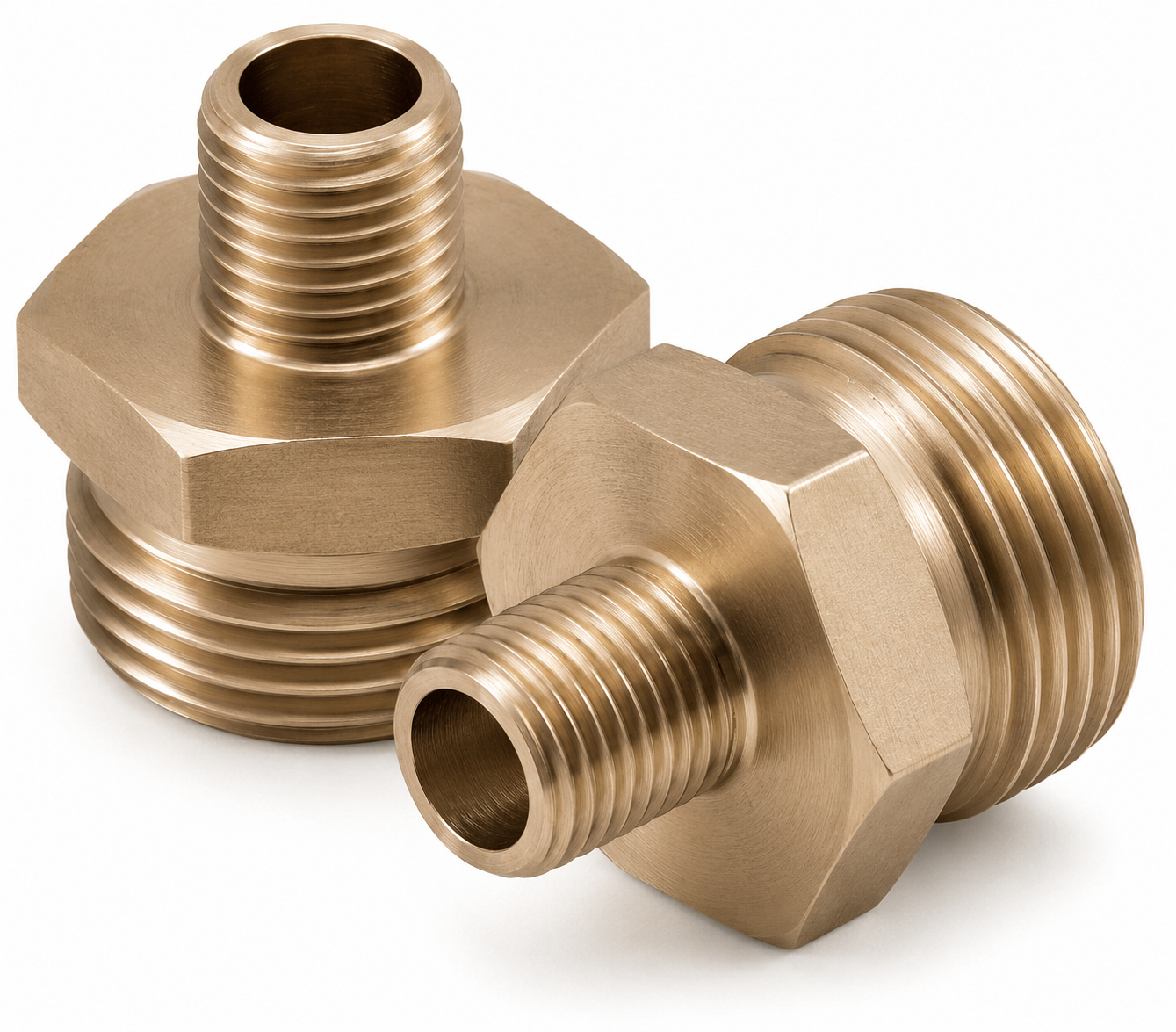

Hose Adapter

Pipe-to-hose transition fitting

Specialty

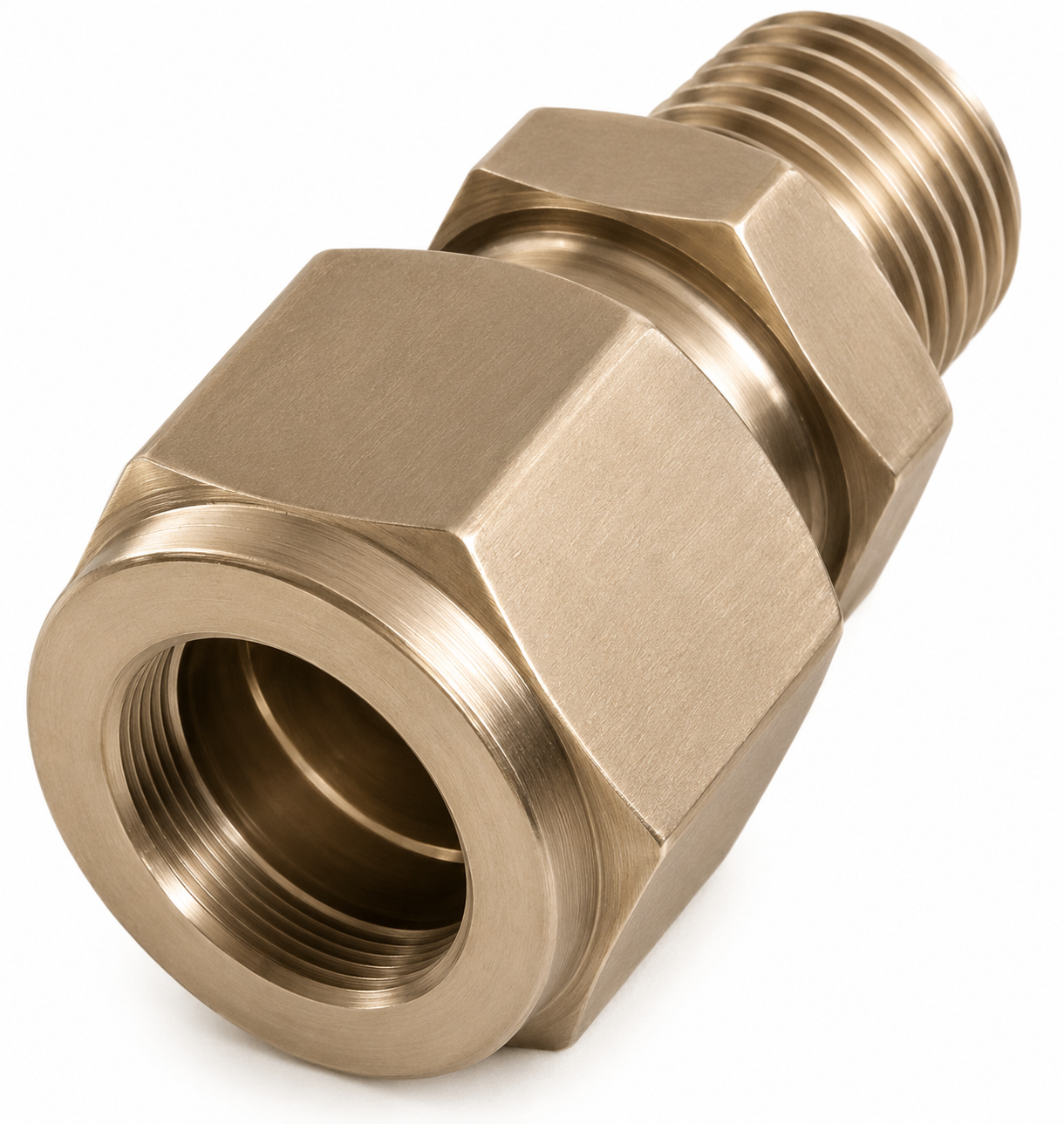

Compression Adapter

Compression-fit transition fitting

Specialty

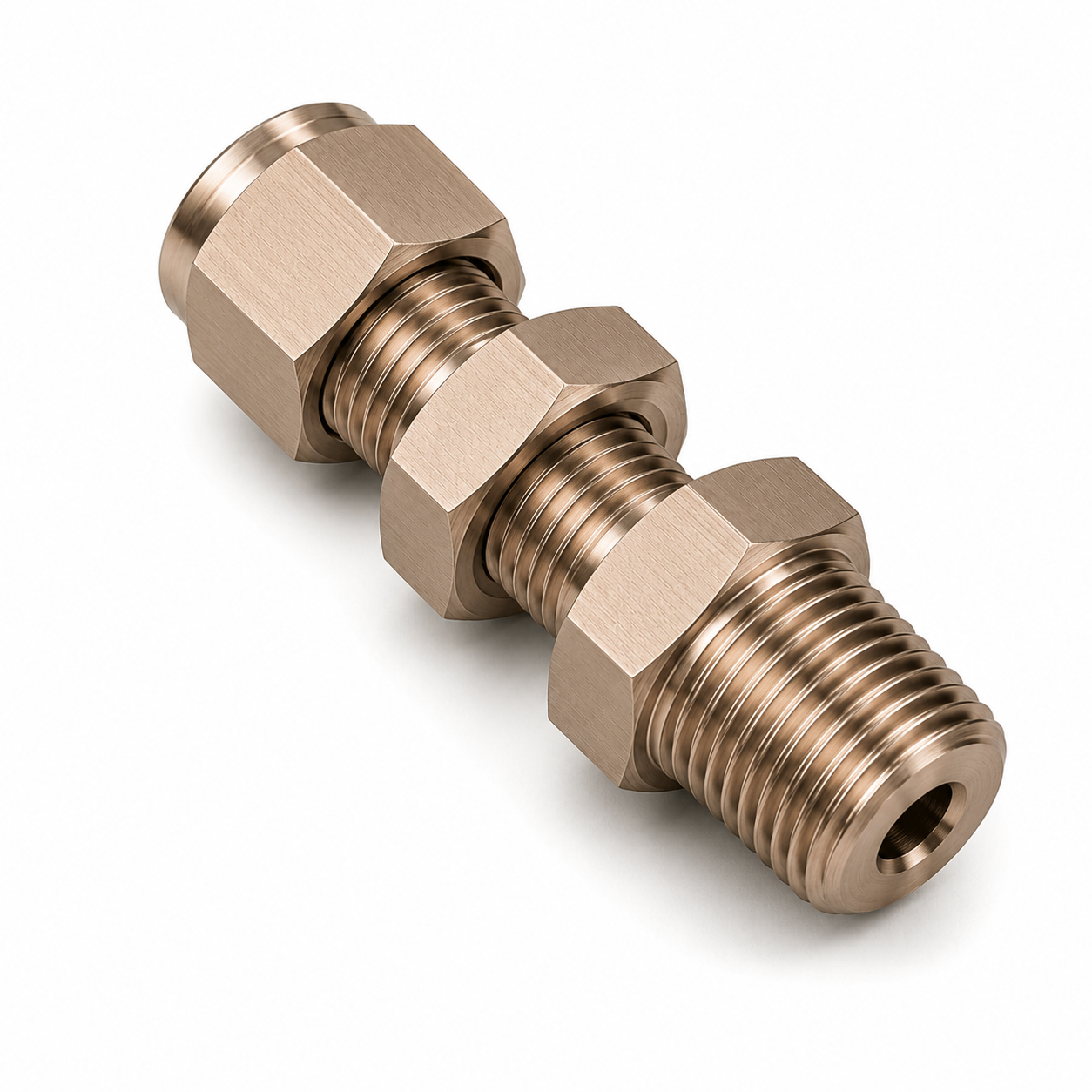

Special Forged Connector

Custom forged connector to drawing
